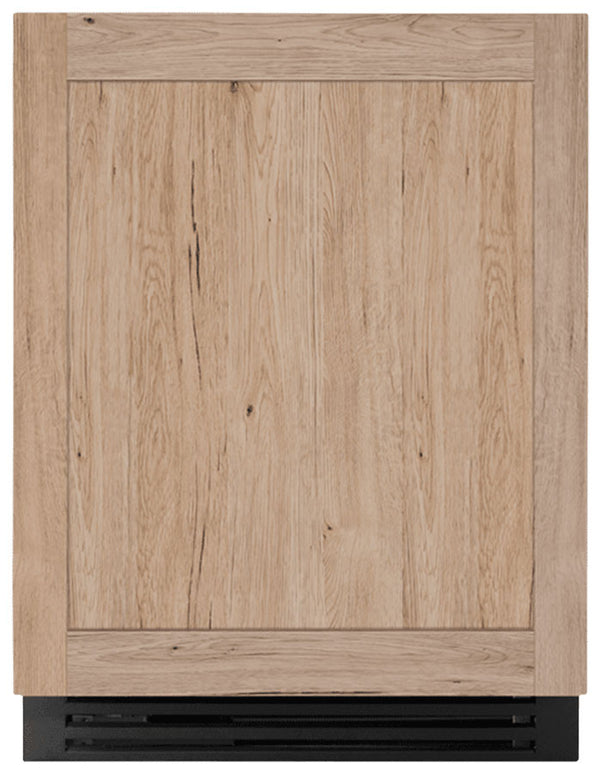

True Residential ADA Height 24" Overlay Panel Right-Hinge Undercounter Beverage Center

True Residential ADA Height 24 Inch Overlay Panel Right-Hinge Undercounter Beverage Center

SKU: TUBADA-24-RS-A~O

Call for Price 888 688 3672

Only sold in a limited area.

Description Features Specifications Dimensions Manuals

Elevate your beverage experience with the True Residential ADA Height 24" Overlay Panel Left-Hinge Undercounter Beverage Center. This sleek and stylish unit is designed to fit effortlessly into your home, providing you with easy access to your favorite drinks. With its ADA compliant height and left-hinge design, it's perfect for any space. Trust True Residential for innovative design and exceptional quality.

  • 32" height allows for installation under ADA-compliant counter top
  •  Articulating, soft close hinge allows fully integrated, flexible installations
  • Field-reversible hinge allows for flexibility in the field
  •  Sleek black aluminum interior
  • Black powder coated steel exterior
  • One pull-out PVC coated wire wine rack and one floor wine cradle for storage of 12 total bottles
  •  Forced air refrigeration system which maintains 33°– 41°F (0.5°– 5°C)
  • Environmentally friendly R600a refrigerant
  •  Concealed digital temperature controls allows for precise temperature management
  • White LED lighting illuminates your product
  • UL-rated for outdoor use • Unit comes standard with 4 adjustable leg levelers
  • NSF/ANSI Standard 7 compliant for packaged food product
  • Total Capacity (cu. ft.) : 5
  • Installation Type : Built-In
  • Undercounter : Yes
  • Counter Depth : No
  • Accepts Custom Panels : Yes
  • Door Lock : Yes
  • Hinge Side : Right
  • Reversible Door : Yes
  • Glass Door : No
  • Leveling Legs : Yes
  • Number of Leveling Legs : 4
  • Ice Maker : No
  • Number of Refrigerator Shelves : 2
  • Deli / Snack Drawer : No
  • Interior Lighting Type : LED
  • Refrigerant Type : R600a
  • Freezer Interior Light : No
  • Convertible Compartment Section : No
  • Control Type : Digital
  • Defrost Type : Automatic
  • ADA Compliant : Yes
  • Sabbath Mode : No
  • Star-K Certified : No
  • Commercial Use : No
  • Annual Energy Consumption (kW) : 275
  • Outdoor Capable : Yes
  • Type : Wine/Beverage Center
  • Number of Temperature Zones: Single
  • Temperature Range: 33°F - 41°F
  • Type: Beverage Center
  • Height: 31 22/25 Inches
  • Width: 23 22/25 Inches
  • Depth: 23 4/25 Inches
  • Minimum Height: 31 22/25 Inches
  • Standard Cutout Height: 32 Inches
  • Standard Cutout Width: 24 Inches
  • Standard Cutout Depth: 24 Inches
  • Size: 24 Inches
  • Height With Hinges and Covers: 31 22/25 Inches
  • Depth Without Handles: 23 47/50 Inches
  • Depth Without Doors: 23 4/25 Inches
  • Depth With Door Open 90 Degrees: 47 47/100 Inches
