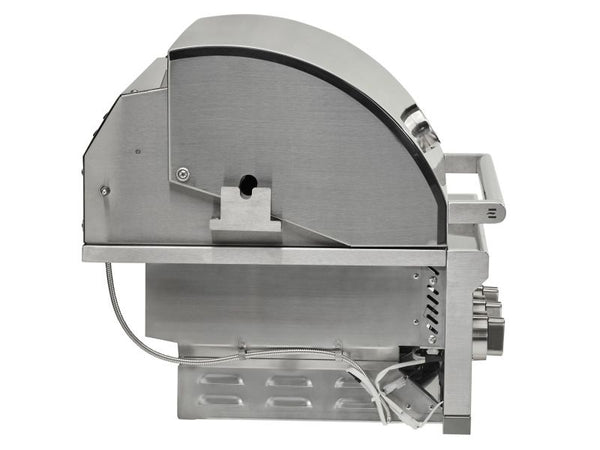

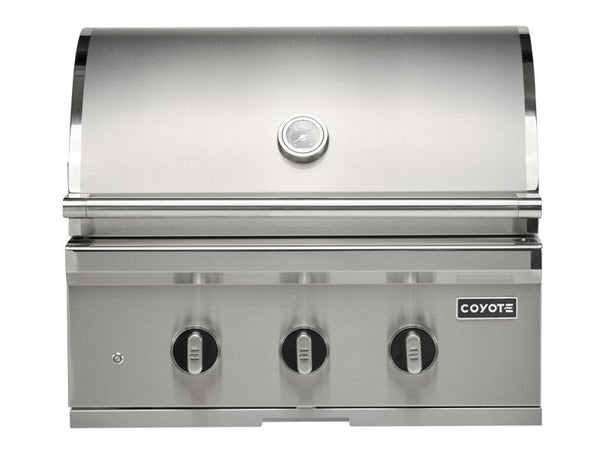

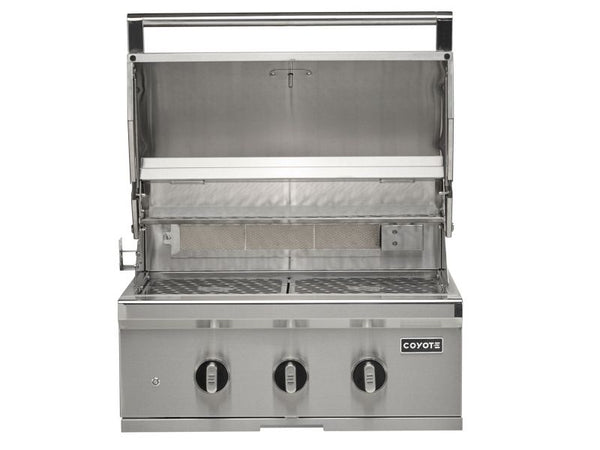

Coyote 30-Inch SL-Series Built-In Gas Grill

• One 20,000-BTU Infinity main burner
• One 15,000-BTU RapidSear infrared burner

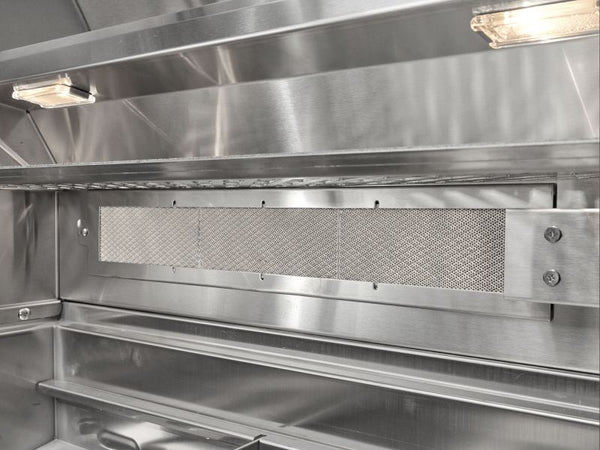

• One 15,000-BTU rear infrared rotisserie burner
• 50,000 BTUs of combined burner output
• 497 sq. in. primary cooking surface
• 640 sq. in. total cooking area, including warming rack

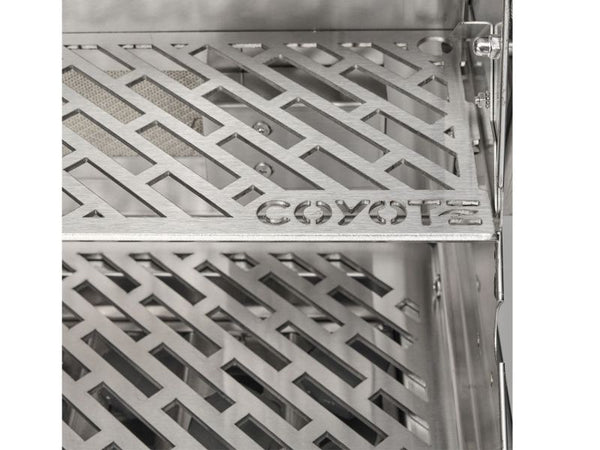

• Laser-cut stainless-steel cooking grates
• Volcanic-stone ceramic briquettes retain and distribute heat
• Heat-zone separators support simultaneous cooking temperatures
• Spring-assisted Easy Lift hood
• Integrated wind guard
• Safety valves with flame-sensing protection

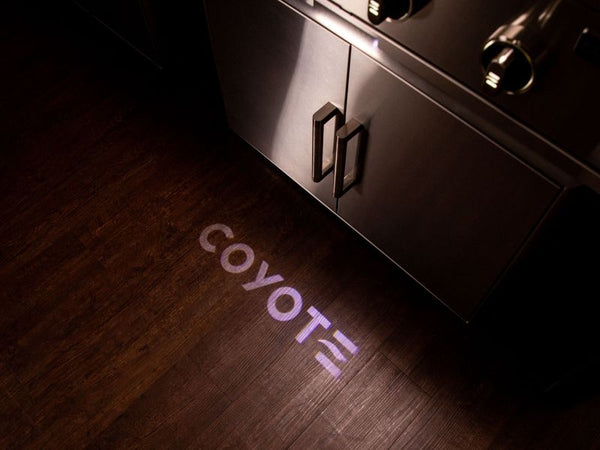

• Interior halogen lighting and exterior logo projection light

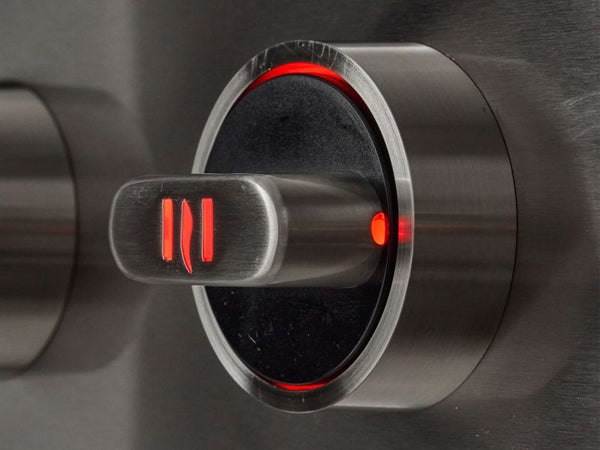

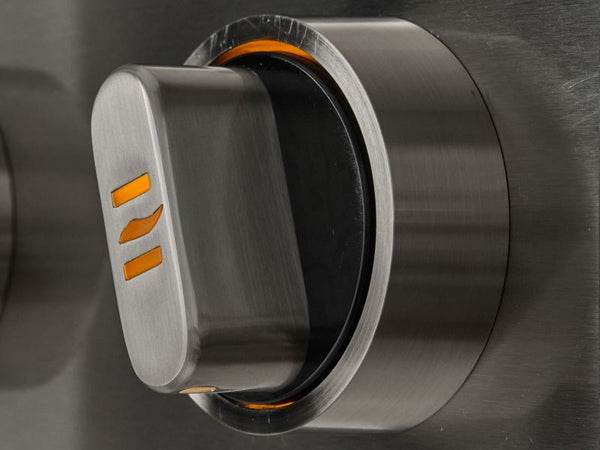

• Illuminated precision-control knobs
• Rotisserie kit and smoker box included
• Available in natural gas or liquid propane

• Overall Dimensions: 28" W × 23" H × 25-1/2" D
• Cutout Dimensions: 25-1/2" W × 10-1/4" H × 20-1/2" D
• Primary Cooking Area: 497 sq. in.
• Secondary Cooking Area: 143 sq. in.
• Total Cooking Area: 640 sq. in.
• Cooking Burners: One 20,000-BTU Infinity burner and one 15,000-BTU RapidSear burner
• Rear Rotisserie Burner: 15,000 BTUs
• Combined Burner Output: 50,000 BTUs
• Construction: 304-grade stainless steel
• Ignition: Push-and-turn flame thrower
• Electrical Requirement: 120 VAC, 60 Hz grounded connection
• Fuel Options: Natural gas or liquid propane

• Liquid Propane: C3SL30LP
• Natural Gas: C3SL30NG

Installation should be completed by a qualified professional in accordance with Coyote’s instructions and all applicable local codes. Verify final cutout dimensions, clearances, island ventilation, electrical requirements, and gas supply before construction. An approved insulated jacket is required when installing the grill into combustible construction.
