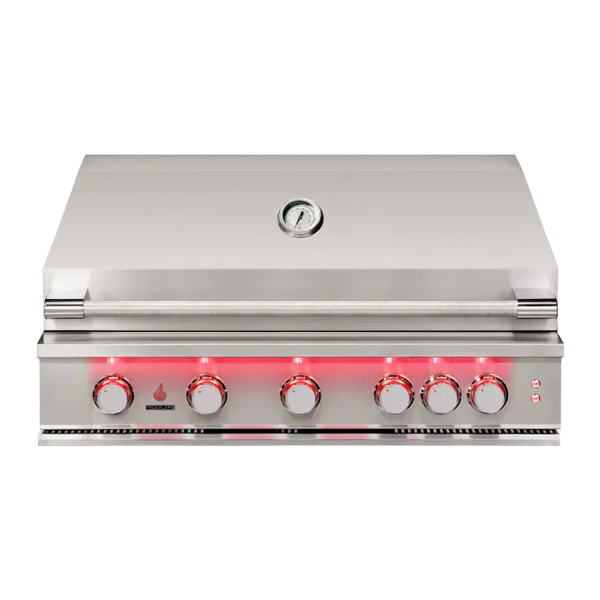

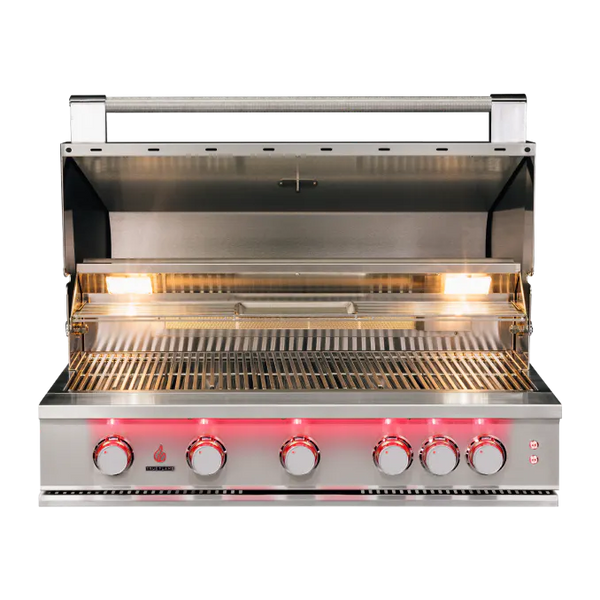

TrueFlame 40 Inch 5 Burner Gas Grill

• #304 Stainless Steel Construction

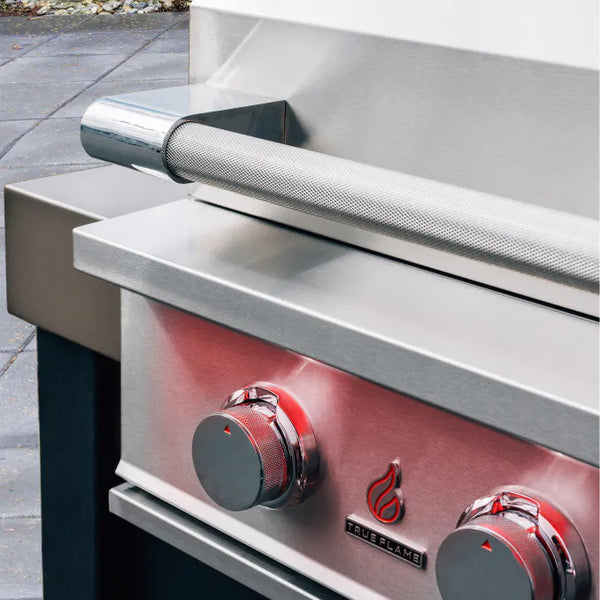

• Full Length Exterior LED Bar Above Knobs & Halogen Interior Lighting

• Exterior Lighting Behind Each Knob Indicating On/Off Burner State

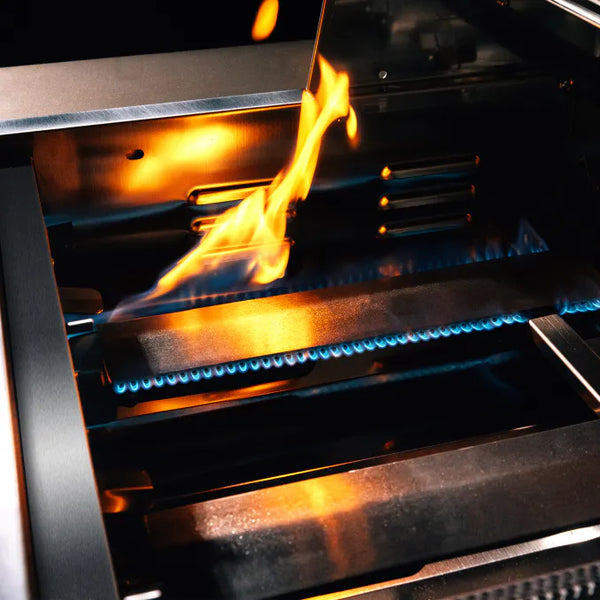

• 14,000 BTU, #304 Cast Stainless Steel Burners w/ Flame Thrower Ignition

• #304 Stainless Steel Flame Tamers / Burner Covers & Heat Zone Separators

• Square Stainless Steel Cooking Grates

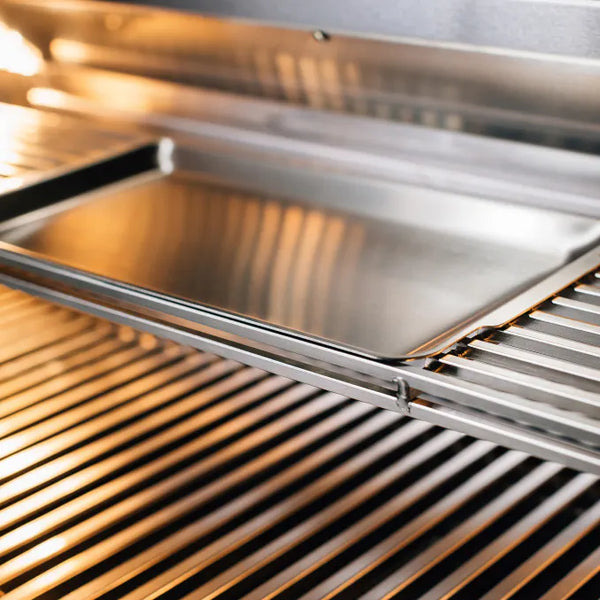

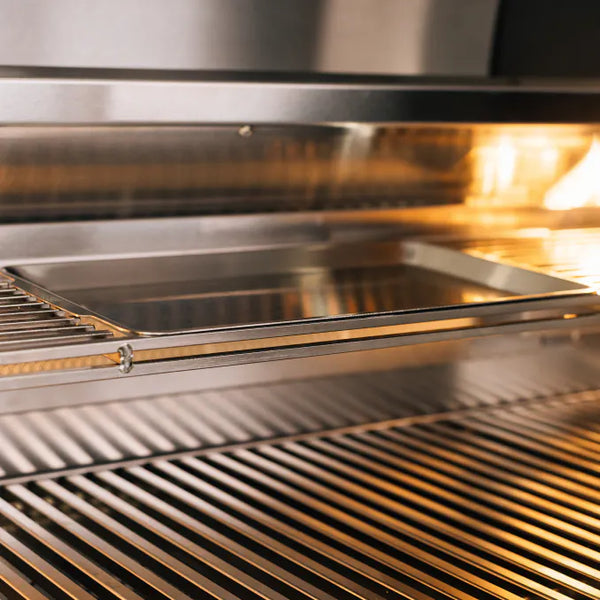

• Warming Rack with Inset, Removable Cooking Tray

• Balanced, Multi-Position Hood Hinge
• Cooking Surface: 40" Grill - 892 Sq Inches

• Manufacturer: True Flame

• Model: TF40-LP, TF40-NG

• Item Type: Gas Grill

• Configuration: Built-In

• Fuel Type: Natural Gas | Propane

• Number of Main Burners: 5 Burners

• Main Grilling Area: 663 square inches

• Secondary Grilling Area: 229 square inches

• Total Grilling Area: 892 square inches

• Grilling Surface BTUs: 70,000 BTUs

• Cooking Grid Dimensions: 37" W x 18" D

• UPC Code (LP): 810105738087

• UPC Code (NG): 810105738094

• Exterior Material: Stainless Steel

• Rotisserie Burner BTUs: 10,000 BTUs

• Exterior Stainless Grade: 304 Stainless Steel

• Primary Color: Stainless Steel

• Main Burner Material: Cast Stainless Steel

• Cooking Grate Material: Stainless Steel

• Flame Tamer Material: Stainless Steel

• Infrared Main Burner: Optional

• Rotisserie Kit: Optional

• Heat Zone Separators: Yes

• Ignition Type: Flame Thrower

• Flash Tubes: No

• Grill Lights: Internal | External

• Spring Assisted Hood: Yes

• Thermometer: Analog

• Includes Smoker Box: No

• WiFi / Bluetooth Enabled: No

• Marine Grade: No

• Made in the USA: No

• Commercial Grade: No

• Hose / Regulator Included: Yes

• Extra Features: N/A

• Width: 39 11/16 inches
• Depth: 25 15/32 inches
• Height: 21 29/50 inches

Cut Out Dimensions

• Cut-Out Width: 38 1/4 inches
• Cut-Out Depth: 21 inches
• Cut-Out Height: 8 1/4 inches
