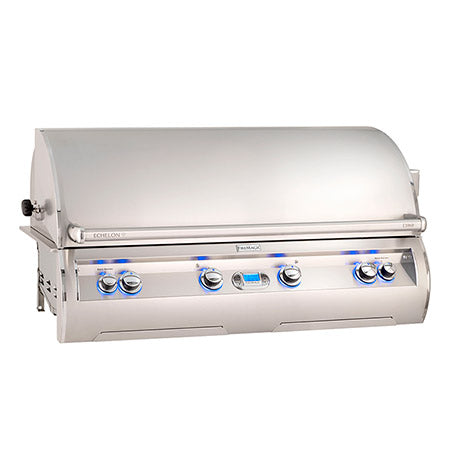

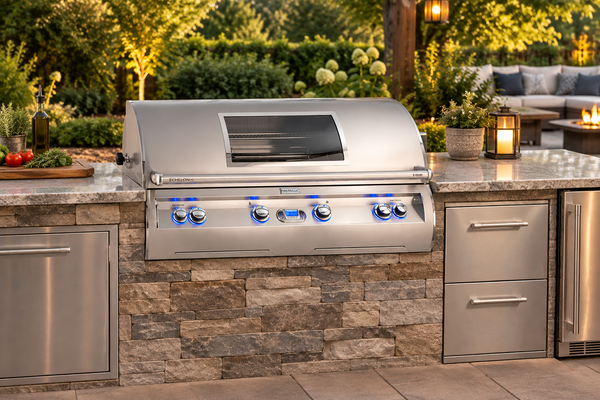

Fire Magic Echelon Diamond E1060i 48-Inch Built-In Gas Grill

Flagship Fire Magic Performance with a Complete Configuration Menu

The Fire Magic Echelon Diamond E1060i is built for expansive outdoor kitchens and serious entertaining. This consolidated master product brings the digital- and analog-thermometer models together in one place, allowing you to select fuel type, burner configuration, and Magic View Window option without navigating multiple overlapping pages.

Four cast stainless steel burners deliver 112,000 BTUs across a 1,056-square-inch primary cooking surface. Diamond Sear cooking grids provide broad contact with food for efficient heat transfer and defined sear marks, while stainless steel Flavor Grids and heat-zone separators support even cooking and multiple temperature zones.

The included 22,000-BTU Quantum rear burner and rotisserie kit expand the grill’s versatility. Hot-surface ignition, illuminated controls, interior halogen lighting, a charcoal and smoker basket, and a spring-assisted hood complete the premium cooking system. Choose an analog thermometer or an illuminated digital thermometer with a meat probe, timer, and alarm functions.

Key Features

• 112,000 BTUs: Four cast stainless steel burners provide powerful, even heat across the extra-large cooking surface.
• 1,440 square inches of total cooking space: Includes a 1,056-square-inch primary surface and 384-square-inch warming rack.
• 22,000-BTU Quantum rear burner: Supports rotisserie cooking with the included heavy-duty rotisserie kit.
• Diamond Sear cooking grids: Heavy-duty stainless steel grids transfer heat efficiently for consistent grilling and searing.
• Heat-zone separators: Help maintain different temperatures for direct and indirect cooking.
• Hot-surface ignition: Provides fast, dependable startup and requires a 120-volt power connection.
• Analog or digital thermometer: Choose a hood-mounted analog gauge or an illuminated digital system with meat probe, timer, and alarms.
• Interior lighting and illuminated controls: Improve visibility for evening cooking.
• Charcoal and smoker basket: Adds charcoal cooking and smoke-flavor capability.
• Optional infrared sear burner: Available in the left-side burner position.

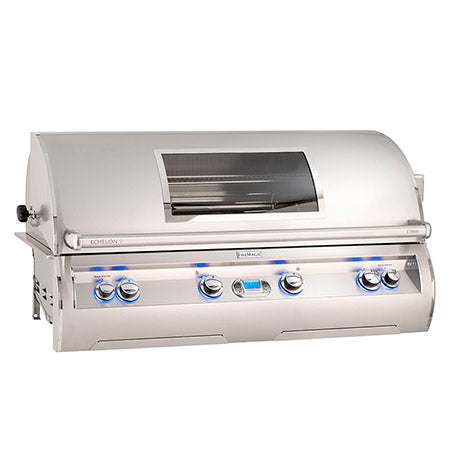

• Optional Magic View Window: Allows food to be monitored without opening the hood.

Specifications

• Series: Fire Magic Echelon Diamond
• Configuration: Built-in
• Main burners: 4 cast stainless steel burners
• Main burner output: 112,000 BTUs
• Rear burner output: 22,000 BTUs
• Primary cooking surface: 48 inches W × 22 inches D
• Primary cooking area: 1,056 square inches
• Warming area: 384 square inches
• Total cooking area: 1,440 square inches
• Cutout for noncombustible enclosure: 50 inches W × 23½ inches D × 11½ inches H
• Exterior material: 304 stainless steel
• Ignition: Hot surface
• Thermometer options: Analog or digital
• Interior lighting: Halogen
• Fuel options: Natural gas or liquid propane
• Infrared sear burner: Available on select configurations
• Magic View Window: Available on select configurations
• Rotisserie kit: Included
• Made in the USA: Yes

Configuration note: Features and pricing vary by selected SKU. Confirm thermometer type, fuel type, burner system, and Magic View Window selection before ordering.

Installation note: This grill requires electrical power. An approved insulating liner is required when installing it in a combustible enclosure. Always follow the current Fire Magic installation manual and applicable local codes.
