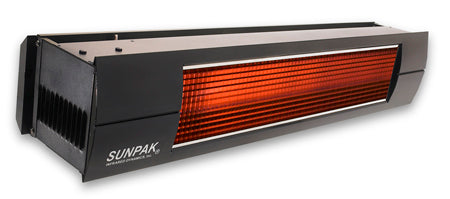

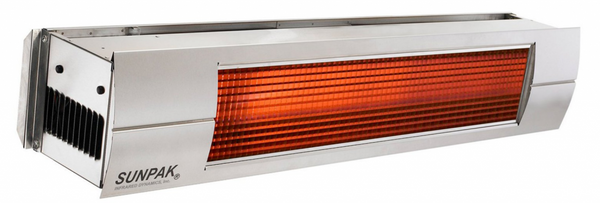

Sunpak S34-TSH 34,000/25,000 BTU Two-Stage Wall/Ceiling-Mount Gas Patio Heater with Duplex Switch

Sunpak S34-TSH 34,000/25,000 BTU Two-Stage Wall/Ceiling-Mount Gas Patio Heater with Duplex Switch

Give commercial or residential patios two practical heat levels with straightforward wall-switch control. The Sunpak S34-TSH delivers 34,000 BTU on high and 25,000 BTU on low, with direct-spark ignition and an included duplex switch for installed control.

Why You'll Love It

• Fully Automatic ON/OFF/HI/LOW control system
• Ceramic Infrared Burner System
• Direct Spark Ignition with Auto Re-light and Flame Sensor System
• Two Stage 34,000 to 25,000 BTU
• 304 Series stainless steel construction
• Stainless Steel Mounting Kit Included
• 24 Volt Transformer Included
• Sunpak® Duplex Switch Control Included
• Wall or Ceiling mount
• 9' 1/2" to 12' Mounting Height
• Approximate 12 ' x 12' Heat Coverage @ 34,000 BTU (High Setting)
• Approximate 10' x 10' Heat Coverage @ 25,000 BTU (Low Setting)
• Recommended for Commercial and Residential Installation
• Available in natural gas or liquid propane
• Made in the USA

Specifications

• Heating Area: 144 Sq. Ft.
• Fuel Source: Natural Gas or liquid propane
• Ignition Type: Direct Spark
• Heat Rating: 34,000 BTUs high / 25,000 BTUs low
• Heating Element: Ceramic
• Minimum Mounting Height: 114"
• Voltage: 24 V
• Material: Stainless Steel

Dimensions

• Length: 48 Inches
• Width: 8 Inches
• Height" 8 Inches

Manuals

TSH Series

IOM Manual

Spec Sheet

Switch Wiring Diagram

Mounting Kit

Transformer

Optional Face Trim
