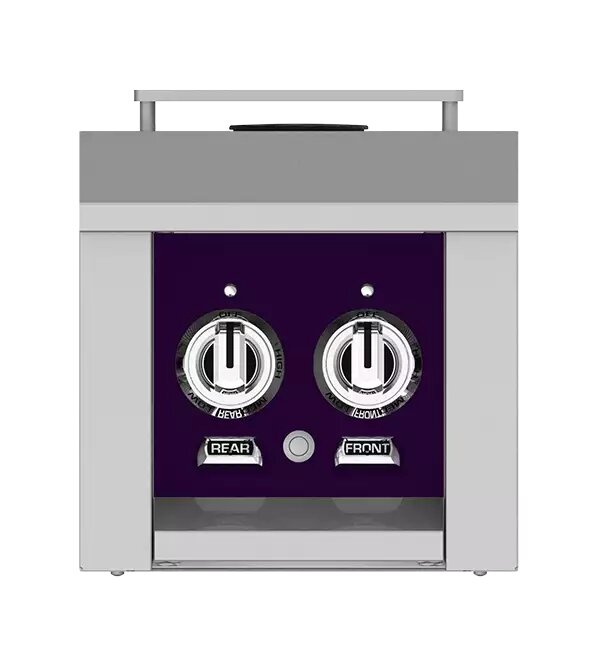

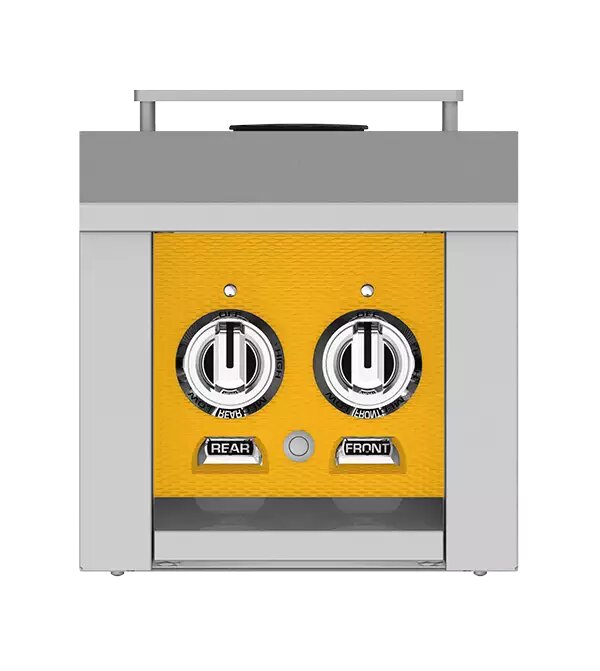

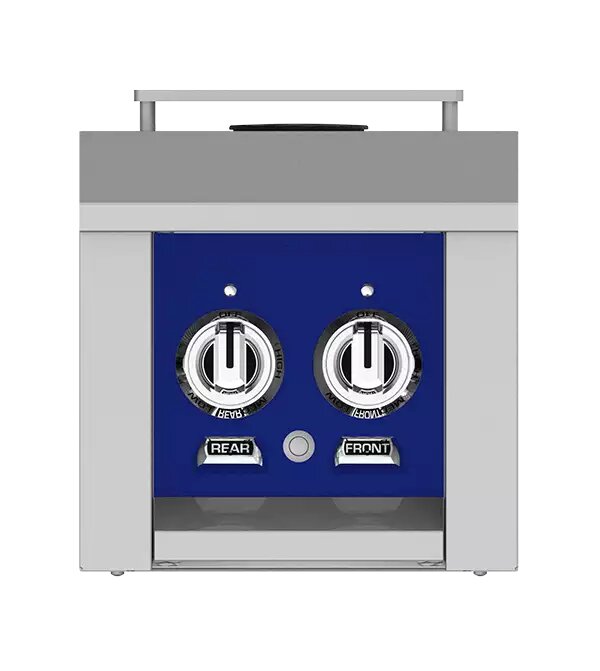

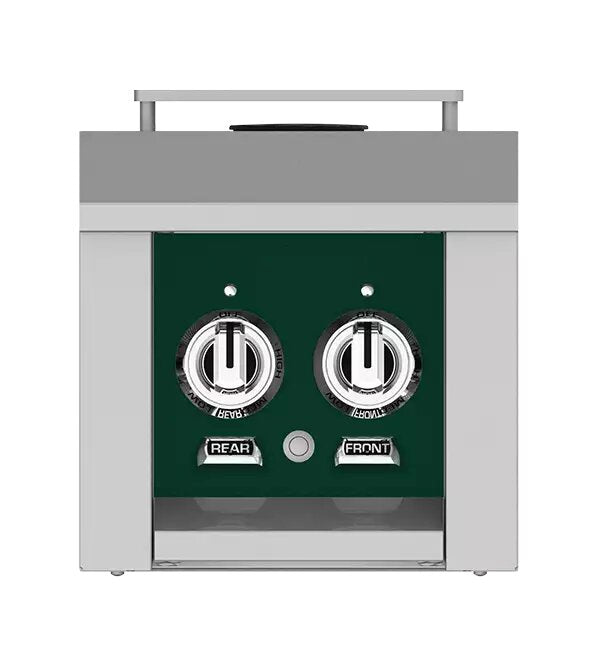

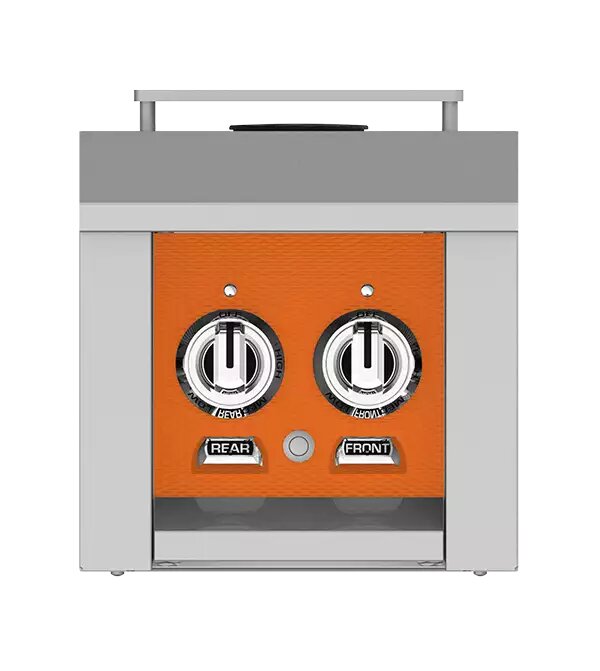

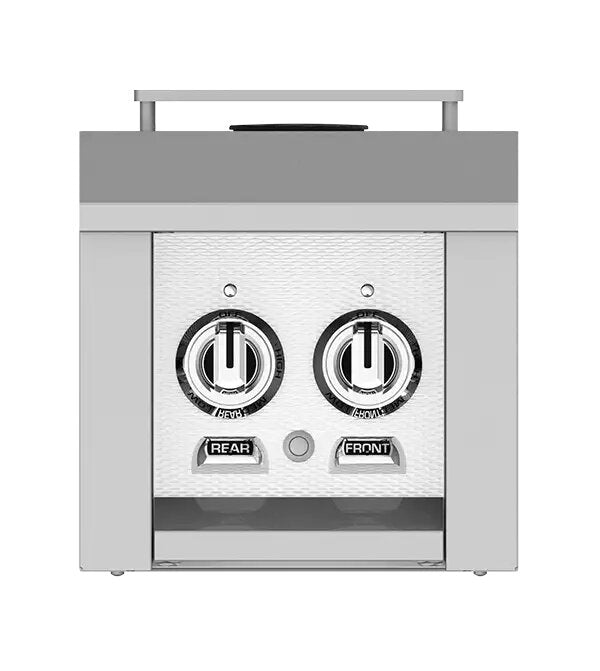

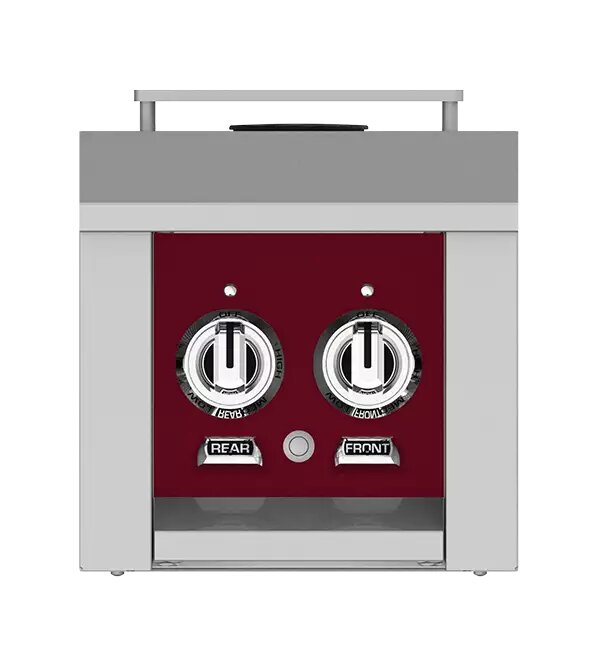

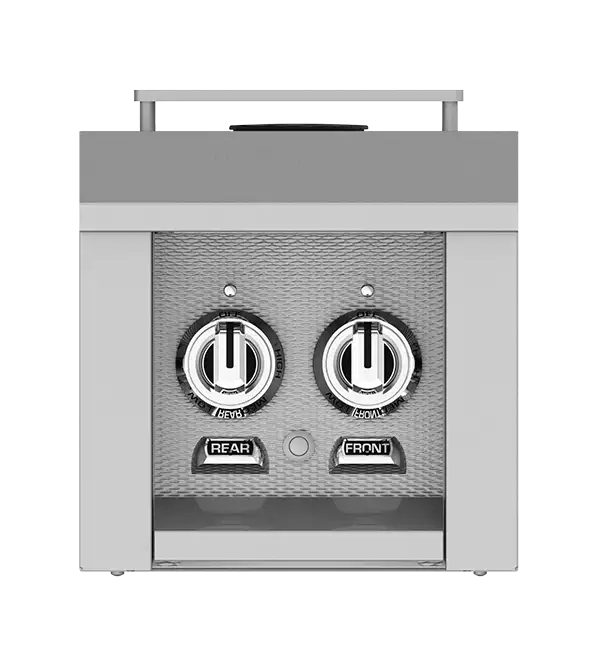

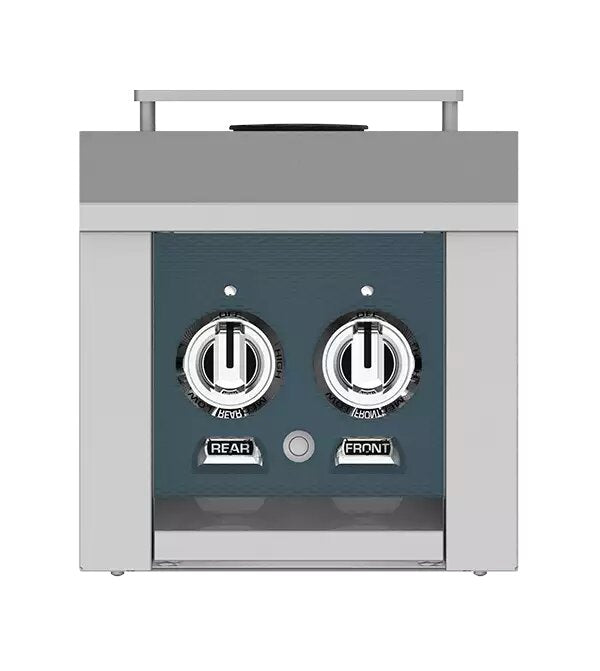

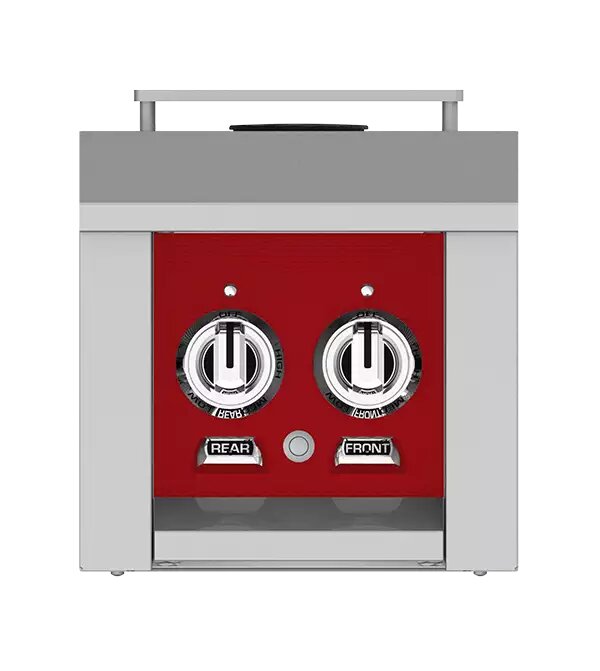

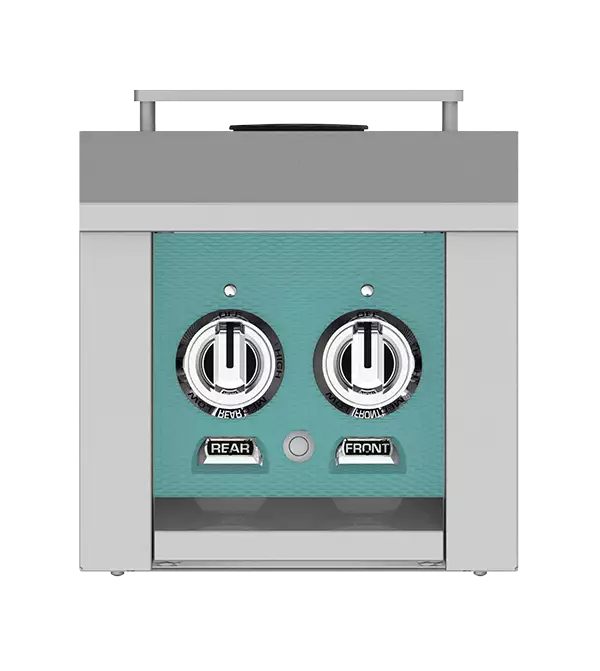

Hestan 12-Inch Outdoor Double Side Burner — 30,000 BTU (AGB122)

• Two sealed brass burners: 20,000 BTU front and 10,000 BTU rear
• DiamondCut™ stainless steel grate supports cookware over both burners
• Electronic spark ignition with re-ignition capability
• Sealed burner bowl with drain tube helps simplify cleanup
• LED lighting illuminates the front control panel after dark
• Stainless steel top cover protects the cooking surface when it is cool and not in use

• Model family: AGB122
• Fuel choices: Natural gas or liquid propane; select the required factory fuel type when ordering
• Installation: Built into an outdoor kitchen or attached to a compatible Hestan Tower Cart with the optional AGBPK side-mount kit
• Finish choices: 12 live Hestan finishes
• Construction: Heavy-gauge welded stainless steel body

• Manufacturer-listed cutout: 11 in. W x 24 1/4 in. D x 11 1/2 in. H
• Electrical: 120V, 60Hz, 1 amp; use a properly grounded GFCI-protected outlet
• Gas connection: 1/2-in. NPT with a regulated supply
• Minimum supply pressure: 7 in. water column for natural gas or 11 in. water column for propane
• Outdoor use only; the enclosure requires code-compliant ventilation and access to the gas shutoff

Confirm the fuel selection, finish, cutout, countertop overhang, enclosure ventilation, clearances, gas pressure and electrical location with the current Hestan documents and your licensed installer. Remove the metal cover before lighting or operating the burners.
