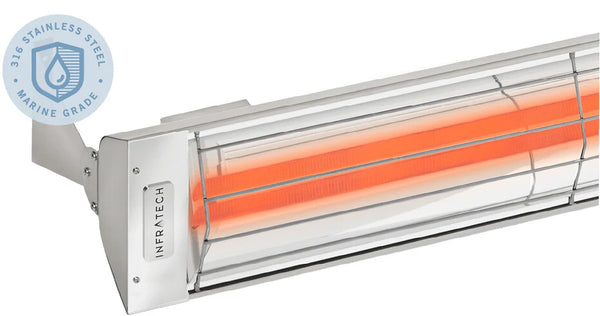

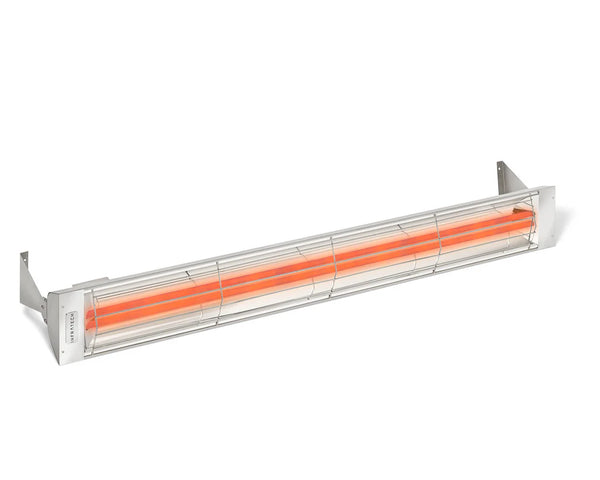

Infratech 6000 Watt Dual Element 61-1/4 Inch Marine Grade W-Series Electric Heater

• 61 1/4" Length
• 6" Stainless Steel Mounting Kit Included
• UL listedM
• Replacement Element
• Outdoor or Indoor use
• Quartz Element
• Approximate 5,000 hours of use on quartz element
• 8' to 12' Mounting height
• 0 to 60° Mounting Angle
• Approximate 11' x 11' Heat Coverage
• Minimal Maintenance Costs
• Flush Mount Kit Available: #18-2305
• Made in the USA
• 3 Year Warranty


• Heating Area: 121 Sq. Ft.
• Fuel Source: Electric
• Infrared Heat Technology: Medium Wave
• Standard Wattage: 6000 Watts
• Finish: Stainless Steel
• Installation Options: Wall Ceiling
• Voltage Rating: 277 V, 480 V, 240 V, 208 V
• Amperage: 12.5 amps, 25 amps, 21.66 amps, 28.85 amps
• Material: Steel
• Can be Recessed: Yes
• Mounting Options: Post Mount, Recessed, Wall Mount
• IPX Rating: IPX4
• Application: Commercial/Residential
• Warranty: 3 Years
• Mounting Brackets Included: Yes
• Weight: 21 Lbs.

• Length: 61 1/4 Inches

• Height: 8 19/100 Inches
• Depth/Extension: 6 Inches

Infratech Spec Sheet

Infratech W and WD-Series Installation Use and Care Manual

Infratech Motif Collection Brochure

Infratech Manual
