Vent-A-Hood PYDH18-236 36-Inch 550 CFM Euro Pro Island Range Hood

Available Now!

Vent A Hood SKU: PYDH18-236 BC

$3,886.00

Vent a Hood 36" 550 CFM Euro-Style Island Range Hood
Vent a Hood 36" 550 CFM Euro-Style Island Range Hood
Vent a Hood 36" 550 CFM Euro-Style Island Range Hood
Vent a Hood 36" 550 CFM Euro-Style Island Range Hood
Description Key Specifications Planning Notes Manufacturer Resources

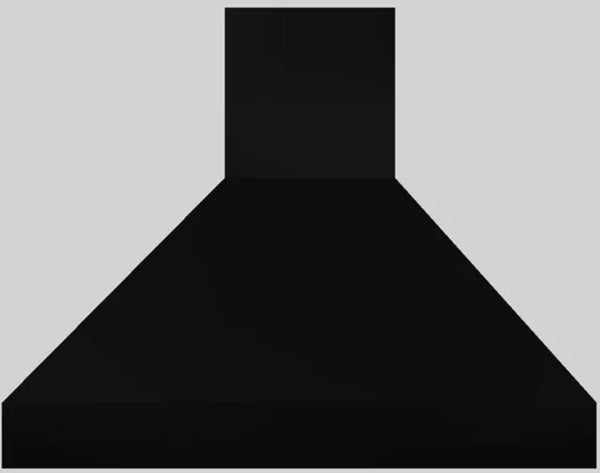

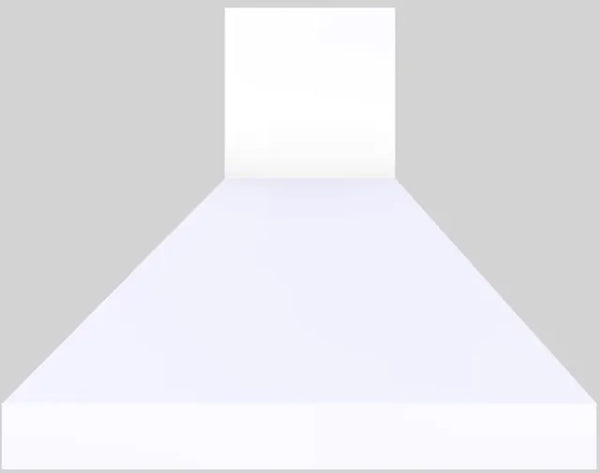

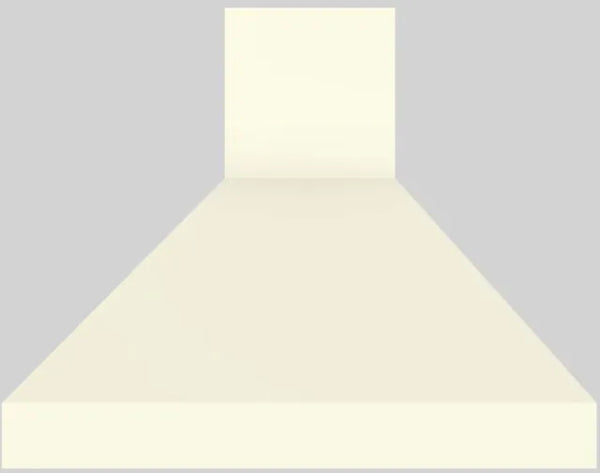

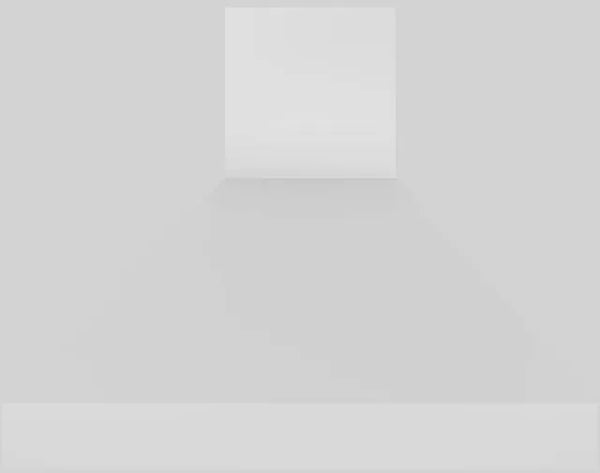

The PYDH18-236 uses a deep 36-inch Euro-style canopy to improve capture over an island cooktop without crowding the sightline. Its filter-free Magic Lung system delivers 550 CFM of rated airflow with centrifugal grease separation and four-point LED task lighting.

  • Exact model: PYDH18-236
  • Size: 36 inches wide x 27 inches deep x 18 inches high
  • Airflow: 550 CFM; 900 CFM equivalent

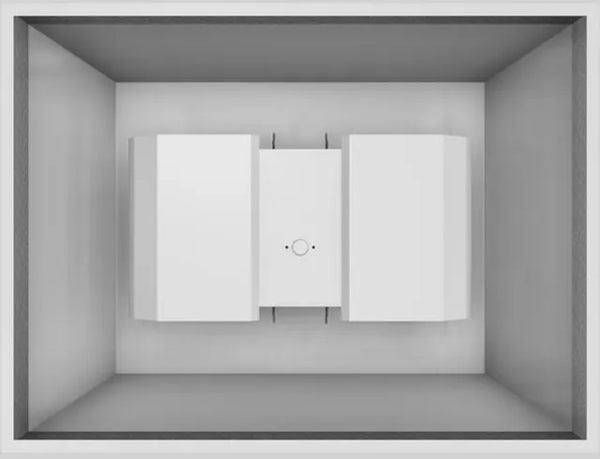

  • Blower: T200 island dual Magic Lung assembly
  • Electrical: 115 volts, 4.0 amps, 60 Hz

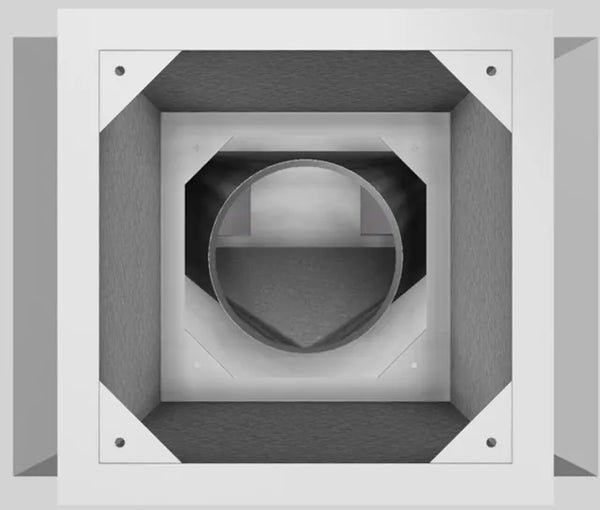

  • Minimum round duct size: 8 inches; VP565 transition included
  • Sound rating on high: 6.0 sones
  • Lighting: 4 LED lights
  • Recommended mounting height: 30 inches above the cooking surface
  • A matching island duct cover is sold separately.
  • This model is not available with heat lamps.
  • Use equivalent CFM when comparing the centrifugal Magic Lung system with conventional filter-based hoods.
  • Confirm the complete ventilation plan, local code requirements and final model configuration with Vent-A-Hood or a qualified installer before ordering.
