Summit 24 Inch Outdoor ADA Kegerator with Solid Door

• ADA compliant height
  Sized at 32 inches high (32.25 to hinge cap) for installation under lower ADA compliant counters
• Commercially approved
  ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

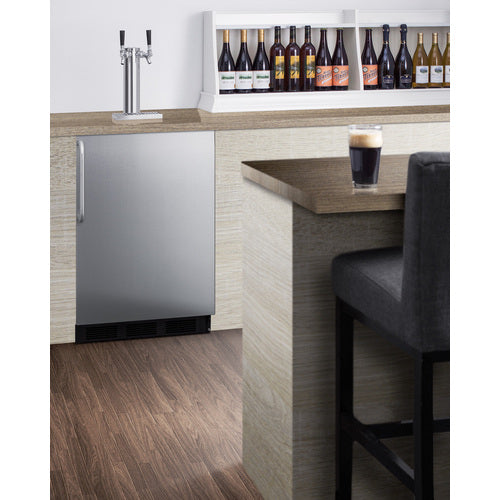

• Built-in capable
  Front-breathing design allows fully recessed installation under counters
• Complete dual tap kit
  Ships with a complete twin tap wine tap kit that includes a dispenser tower, regulator, and all the connection equipment you need to serve from a 1/6 wine keg or disposable wine keg
• Dual tap system

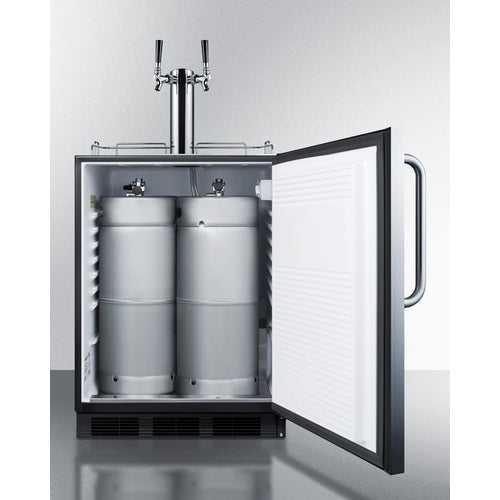

  Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
• 304 grade stainless steel exterior
  Complete stainless steel construction for easy durability in the outdoors
• Professional handle
  Curved towel bar style handle in brushed stainless steel
• Adjustable thermostat
  Interior dial thermostat ensures easy temperature management
• Automatic defrost
  No-frost operation for minimum user maintenance
• Stainless steel drip tray
  Removable two-piece drip tray included for added convenience
• Stainless steel guard rail
  Durable railing makes it easier to neaten service
• Interior light
  Turn the light on when you need it and off when you're done with a convenient rocker switch
• Nitrogen/CO2 tank included
  Canister is best suited for a 75% nitrogen/25% CO2 mixture
• Interior CO2 holder
  Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
• Stainless steel floor cover
  Interior includes steel cover to protect the floor when loading kegs

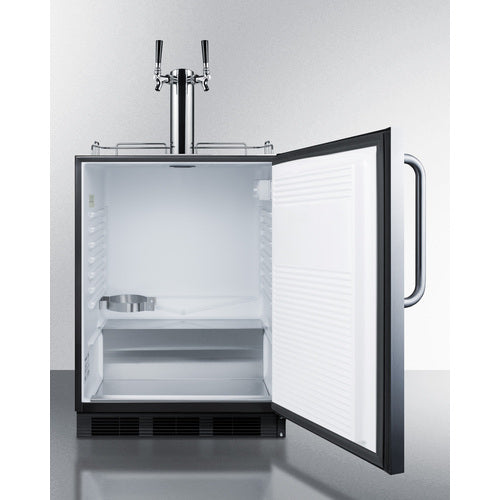

• One piece interior liner
  Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
• Hidden evaporator
  Cold wall design with hidden evaporator and seamless interior
• Fully finished cabinet
  Allows the unit to be used freestanding
• Ground Fault Circuit Interrupter
  Our integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals

• Capacity: 5.5 cu.ft. (156 L)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 1.2
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 110.0 lbs. (50 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Door Swing: RHD (Right Hand Door)
• Reversible: Factory Reversible
• Tap Kit: Yes
• Height with Tap: 47.5" (121 cm)
• Number of Taps: 2
• Thermostat Type: Dial
• Interior Light: Yes
• Fan Type: Exterior
• Refrigerant: R600a
• Refrigerant Amount: 0.64 oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0

Interior

• Height: 26 1/4 Inches
• Width: 21 Inches
• Depth: 17 3/4 Inches

Compressor Step

• Height: 5 1/2 Inches
• Width: 21 Inches
• Depth: 5 1/2 Inches
