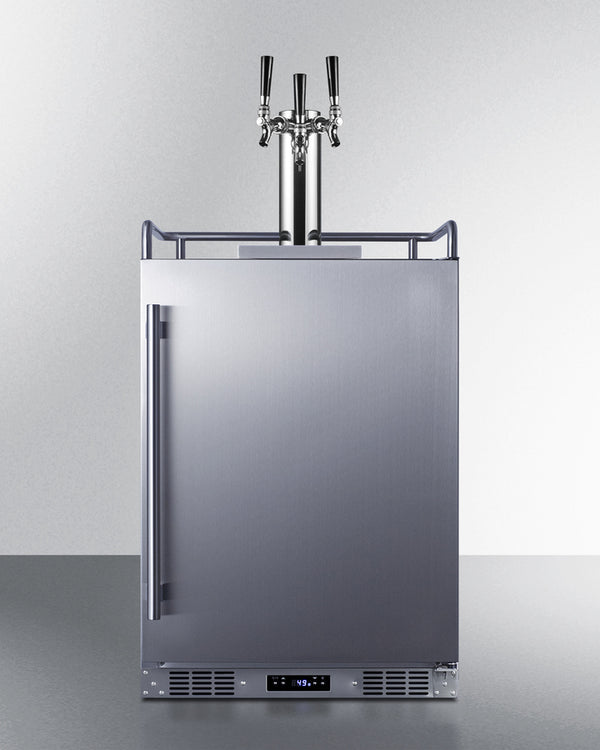

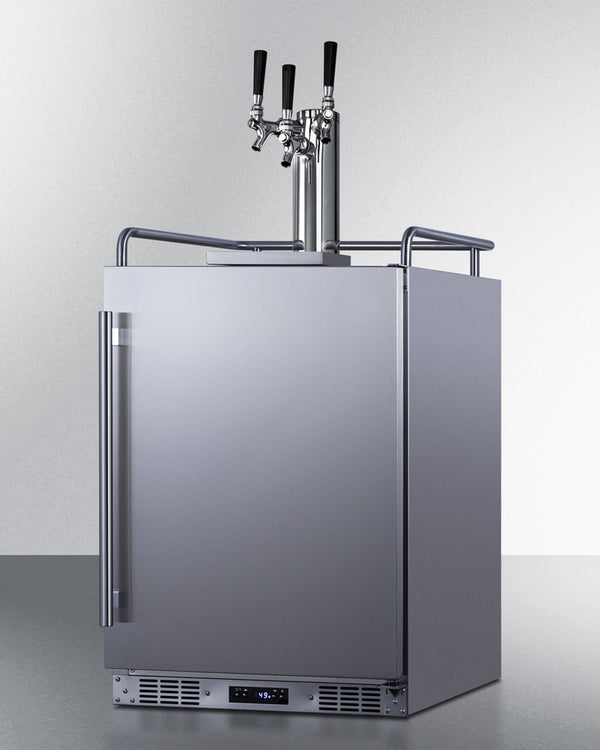

Summit 24 Inch Outdoor Rated Kegerator with Solid Door

• Large Capacity Kegerator
  5.6 cu.ft. interior fits a full half barrel, quarter keg, or up to three sixth barrels or Cornelius style kegs.
• Weatherproof Design
  Solid 304 grade stainless steel construction allows outdoor placement.

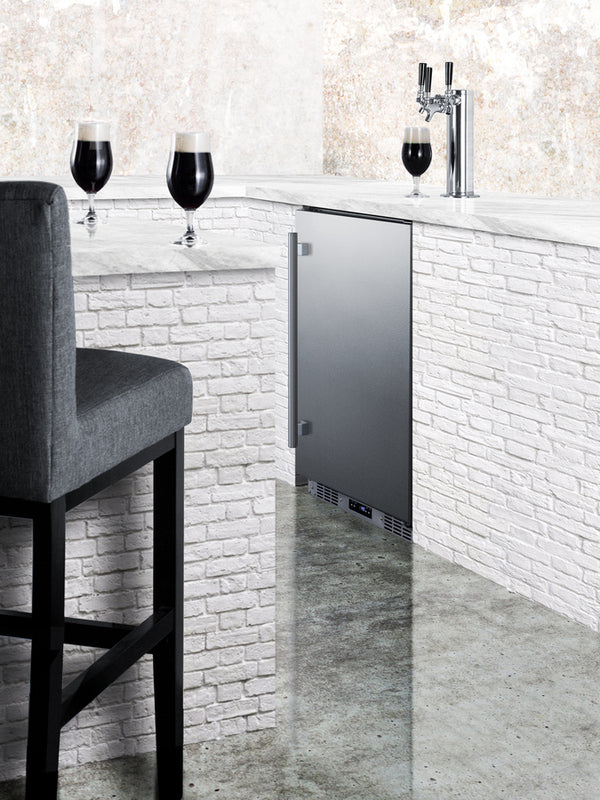

• Built-in Capable
  Front-breathing design enables fully recessed installation under counters.
• Complete Tap Kit
  Includes 5 lb. CO₂ tank, regulator, triple tap draft arm, Sankey American tap, and connection hardware.

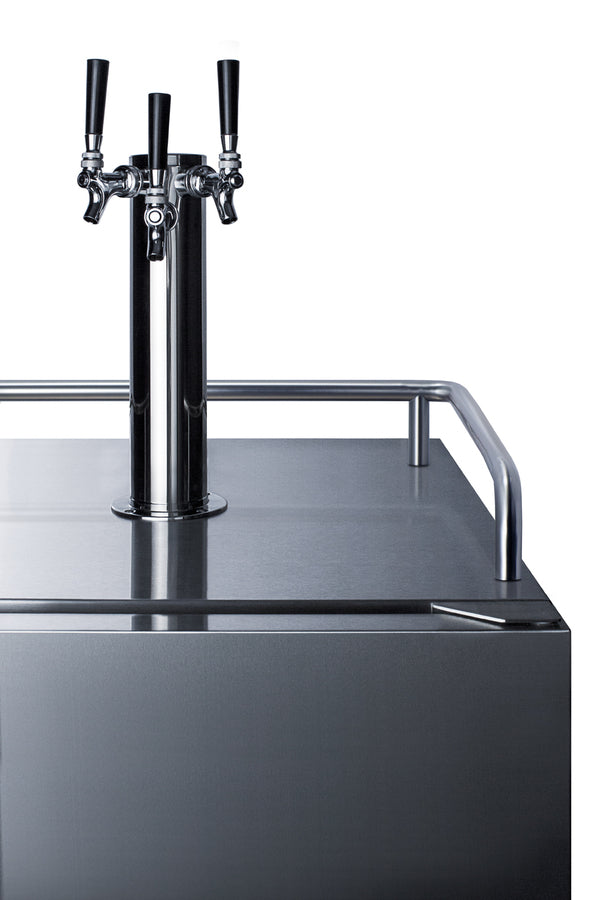

• Triple Tap System
  Serve from three 1/6 (sixtel) sized kegs with a triple draft tower.
• Automatic Defrost
  Auto defrost operation reduces user maintenance.
• Digital Thermostat
  Electronic controls offer easy temperature management, with external readout in Celsius or Fahrenheit.
• Tap Cool System

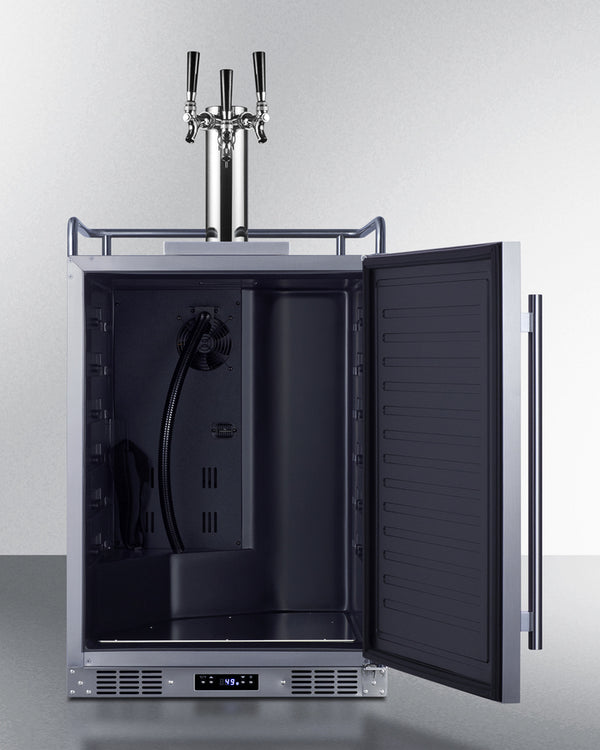

  Interior tube directs cold air into the draft tower (supports up to two taps).
• Stainless Steel Floor Cover
  Protects interior floor when loading kegs.
• Top Guard Rail (Ships Unassembled)
  Chrome guard rail helps reduce spills and keeps service area tidy.
• Stainless Steel Drip Tray
  Removable two-piece drip tray catches spills for easy cleanup.
• Adjustable Shelves
  Two chrome shelves (six placement options) allow use as a beverage refrigerator.
• Memory IC Function
  Restores last settings after a power outage.
• Reversible Door
  User-reversible door swing for flexible installation.
• Casters Included (Ship Unassembled)
  Four casters (two locking) for easy mobility.
• Pro Style Handle
  Stainless steel handle adds a professional touch.
• Fully Finished Stainless Steel Cabinet
  Enables freestanding use.
• Sealed Back
  Space-saving design with easier cleanability.
• 100% CFC Free
  Eco-friendly design with no ozone-damaging chemicals.
• CARB Compliant
  Environmentally friendly hydrocarbon refrigerant meets CARB standards.

• Capacity: 5.6 cu.ft. (159 L)
• Defrost Type: Automatic
• Door Material: Stainless Steel
• Cabinet Material: Stainless Steel
• Electrical Safety: ETL (U.S.), ETL-C (Canada)
• Sanitation Certification: ETL-S (Commercial)
• Energy Usage: 305.0 kWh/year
• Electrical Requirements: 115V AC / 60Hz
• Amps: 1.25
• Weight: 120.0 lbs. (54 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101083940
• Door Swing: Right Hand Door (RHD)
• Reversible Door: Yes
• Tap Kit Included: Yes (Triple Tap)
• Height with Tap: 51.5" (131 cm)
• Number of Taps: 3
• Adjustable Shelves: Yes
• Shelf Type: Chrome
• Shelf Quantity: 2
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant: R600a
• Refrigerant Amount: 1.06 oz.
• High Side Pressure: 150.0 PSI
• Low Side Pressure: 50.0 PSI
• Interior Height: 26.75" (68 cm)
• Interior Width: 20.0" (51 cm)
• Interior Depth: 19.0" (48 cm)
• Leveling Legs Quantity: 4
• Wheel Quantity: 4 (casters)
• Temperature Range: 34°F to 68°F (1°C to 20°C)
• Sound Level: 34.0 dB

• Nominal Height: 34 Inches
• Height of Cabinet: 33 5/8 Inches
• Nominal Width: 24 Inches
• Width: 23 3/4 Inches
• Nominal Depth: 24 Inches
• Depth: 24 Inches
• Depth with Handle: 26 1/24 Inches
• Depth with Door at 90°: 46 3/4 Inches
