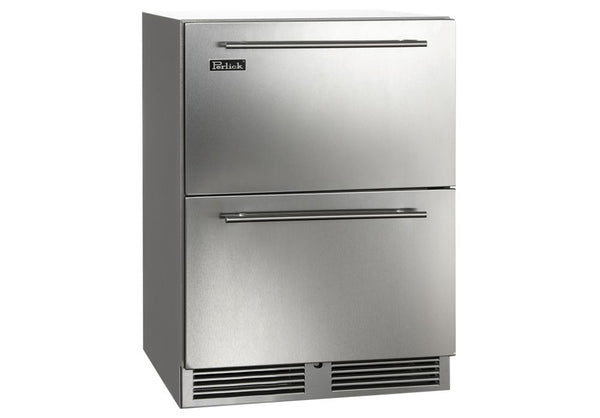

Perlick 24 Inch C-Series Outdoor Refrigerator Drawers With Lock

• 5.2 cubic feet of capacity
• Zero-clearance hinging allows for abutment with surrounding cabinetry
• 525 BTU commercial-grade compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior
• Industry Exclusive convertible door design allows all doors the ability to be converted to wood overlay from stainless steel
• Industry Exclusive adjustable, full-extension pull-out shelves
• Stainless-steel ball-bearing glides provide smooth movement of shelves
• Two (2) full-extension pull-out shelves
• Refrigerator rated for both food and beverage storage
• Refrigerator temperature 33°F - 42°F
• Digital temperature control
• Interior light
• Optional door locks
• Stacking kit available
• Stainless steel exterior

• Capacity:5.2 Cu. Ft.
• Door Swing Clearance: 25" Minimum
• Plumbing: Not Required
• Electrical Requirement: 15V/60Hz/2.3A
• Annual Energy Consumption:274 kWh

• Cut-out Width: 24"
• Cut-out Depth: 24"
• Cut-out Height: 34 3/8"
• Width: 23 7/8"
• Depth: 24"
• Height: 34 1/4"
