Summit 15 Inch Outdoor ADA Refrigerator with Panel Ready Drawers

• ENERGY STAR certified
  Ensures unit runs efficiently with an environmentally friendly performance
• Commercially approved
  ETL-S listed to NSF-7 standards for commercial use
• ADA compliant
  32” height allows for installation within ADA-compliant spaces

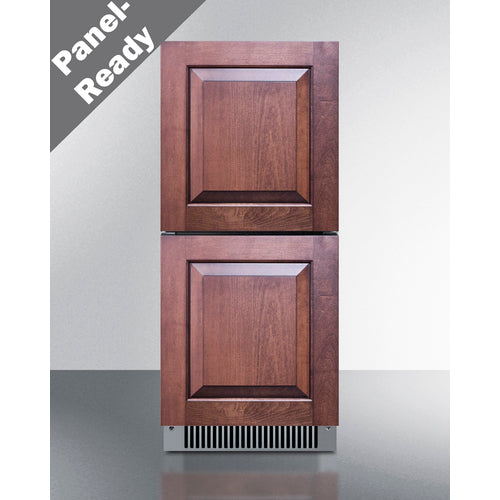

• Panel-ready drawer fronts
  Drawers can be customized with overlay panels sized (at 14.88" H x 14.17" W at 3/4" thick) to match or accent existing cabinetry
• Adjustable height
  Unit can be raised to 34.25", with a taller kickplate included for a seamless look
• Built-in capable
  Front-breathing design allows the unit to be built-in under counters
• Stainless steel construction
  Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
• Indoor/Outdoor compatible
  Durable, weatherproof construction designed to hold up to the elements
• Professional handles
  Stainless steel handles add style to any setting
• Frost-free
  No-frost operation for minimal user maintenance
• Interior lighting
  Soft LED lighting makes for easy viewing of each drawer’s contents
• Digital thermostat
  Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

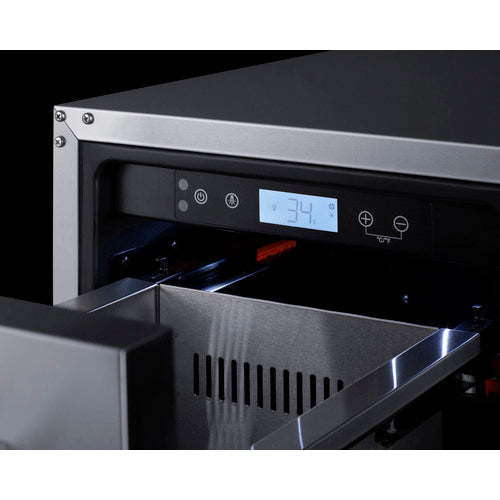

• Digital display
  Large display allows for easy readability and unit control

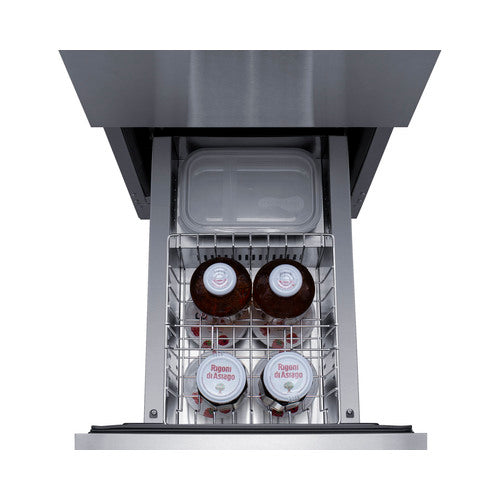

• Sliding basket
  Removable basket included for additional storage convenience
• Removable drawers
  Allows for easy cleaning and organization within the interior of the unit
• Temperature alarm
  Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
• Door alarm
  Audible alarm sounds if the drawers are left open for more than five minutes
• Sabbath mode
  Optional feature disables alarms, interior light, and displays for up to 96 hours
• Right-angle plug
  Space-saving plug allows unit to sit flush against the wall
• Sealed back
  Space-saving and makes for quick cleaning of the unit’s exterior
• Fan-forced cooling
  Provides for efficient, even cooling of the entire unit
• Temperature memory
  Unit will retain temperature settings after losing power
• Anti-slam drawers
  Soft-close glides prevent drawers from slamming shut for additional durability and safety
• Anti-tip bracket
  Bracket (included) helps prevent tipping for added safety
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 2.76 cu.ft. (78 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 256.0 kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 78.0 lbs. (35 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: Drawer
• Height Adjustable: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.74 oz.
• High Side PSI: 320.0
• Low Side PSI: 120.0
• Level Legs Quantity: 4
• Interior Light: Yes
• Interior Drawers: Yes
• Interior Drawers Quantity: 2
• Temperature Range: 34 to 43ºF
• Sound Level: 34.2 dB

Drawer Dimensions

• Interior Height 1: 8 1/8 inches
• Interior Width 1: 8 inches
• Interior Depth 1: 15 1/4 inches
• Interior Height 2: 7 1/4 inches
• Interior Width 2: 8 inches
• Interior Depth 2: 15 1/4 inches

Compressor Step Dimensions

• Compressor Step Height: 4 1/4 inches
• Compressor Step Width: 8 inches
• Compressor Step Depth: 5 1/4 inches
