Summit 27 Inch Outdoor Refrigerator with Drawers

• 27" wide 2-drawer all-refrigerator
  Uniquely sized for built-in installation under counters in residential or commercial kitchen settings
• Less than 24" deep
  Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces
• Stainless steel drawers
  Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter
• Panel-ready drawer fronts
  Drawers can be customized with overlay panels (sized at 26.77" x 13.78" at 3/4" thick) to match or accent existing cabinetry
• Built-in capable
  Front-breathing design allows the unit to be built-in under counters
• Indoor/Outdoor compatible
  Durable, weatherproof construction designed to hold up to the elements
• Commercially approved
  ETL-S listed to NSF-7 standards allows use in commercial kitchens
• Wide temperature range
  Temperature can be set between 34 and 65ºF for versatile storage of food, beverages, wine, and other items
• Professional handles
  Included for optional use, or add your own to better match your cabinetry finishes
• Frost-free
  No-frost operation for minimal user maintenance

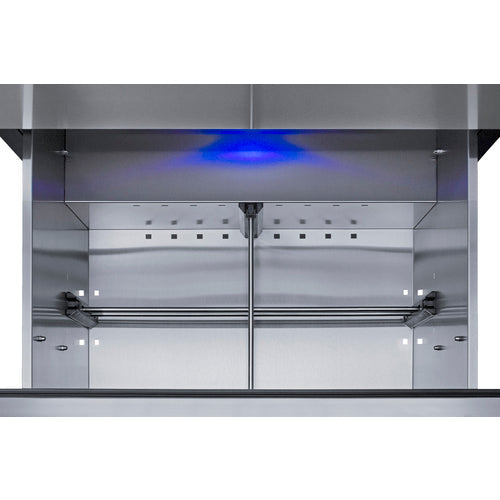

• LED lighting
  Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

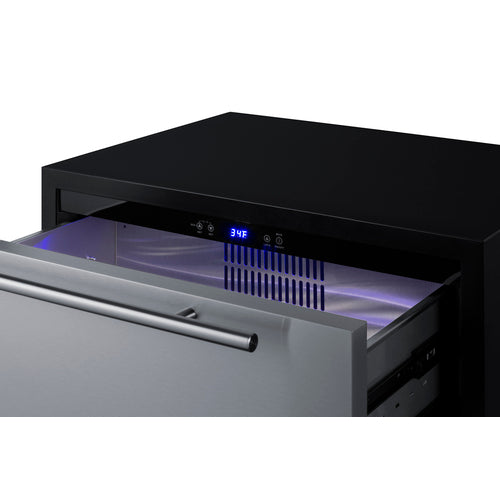

• Digital thermostat
  Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

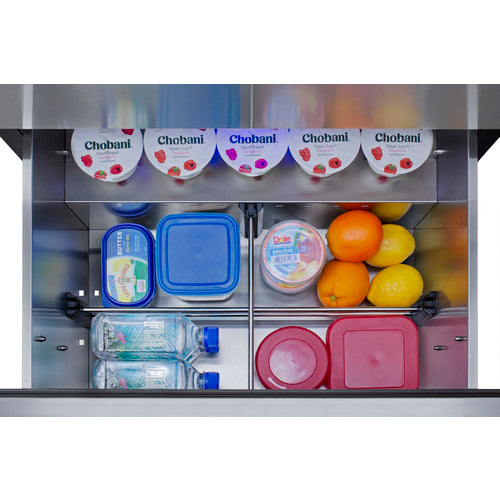

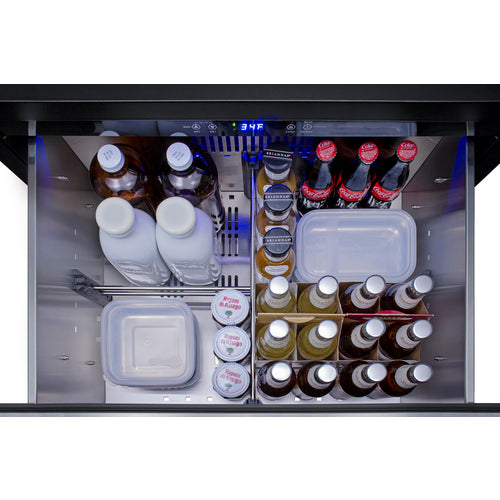

• Drawer dividers
  Each drawer includes a removable accessory that lets you divide your storage into four sections
• Open drawer alarm
  Audible alarm sounds if the drawers are left open for more than five minutes
• Sabbath mode
  Optional feature disables alarms, interior light, and displays for up to 96 hours
• Right-angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Sealed back
  Space-saving design with no exposed coils for easier cleanability
• Fan-forced cooling
  Provides for efficient, even cooling of the entire unit
• Anti-slam drawers
  Soft-close glides prevent drawers from slamming shut for additional durability and safety
• Anti-tip bracket
  Bracket (included) helps prevent tipping for added safety
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 4.83 cu.ft. (137 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 303.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 121.0 lbs. (55 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: Drawer
• Height Adjustable: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.23 oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Level Legs Qty: 4
• Interior Light: Yes
• Interior Drawers: Yes
• Interior Drawers Qty: 2
• Temperature Range: 34 to 65ºF
• Sound Level: 35.2 dB

Drawer Dimensions

• Interior Height 1: 9 7/8 Inches
• Interior Width 1: 23 3/4 Inches
• Interior Depth 1: 16 1/2 Inches
• Interior Height 2: 8 3/4 Inches
• Interior Width 2: 21 Inches
• Interior Depth 2: 16 1/2 Inches

Compressor Step Dimensions

• Compressor Step Height: 5 Inches
• Compressor Step Width: 21 Inches
• Compressor Step Depth: 5 Inches
