Summit 27 Inch Outdoor Refrigerator with Solid Door and Lock

• 27" wide undercounter all-refrigerator

  Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

• Weatherproof design approved for outdoor use

  Sealed design and durable construction ensure safe installation in outdoor kitchens

• Commercially approved

  ETL-S listed to NSF-7 commercial standards

• Less than 24" deep

  Shallower fit than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

• Built-in capable

  Front-breathing design allows the unit to be built-in under counters

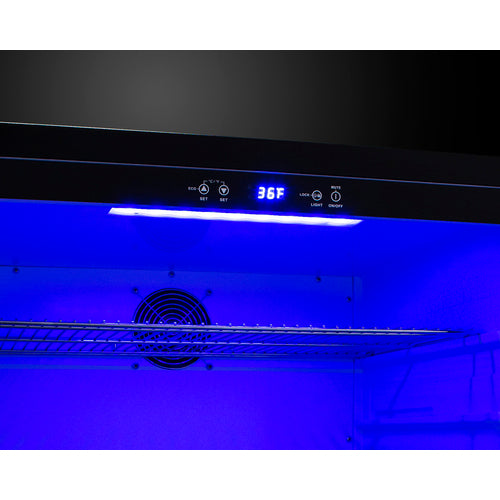

• Digital control panel

  Easy and intuitive digital controls located inside the refrigerator

• Factory installed lock

  Keyed lock for a secure interior (2 keys included)

• Stainless steel door

  Durable construction with a stylish look

• White interior

  Bright interior finish offers maximum visibility, especially helpful in restaurants and other dimmer settings

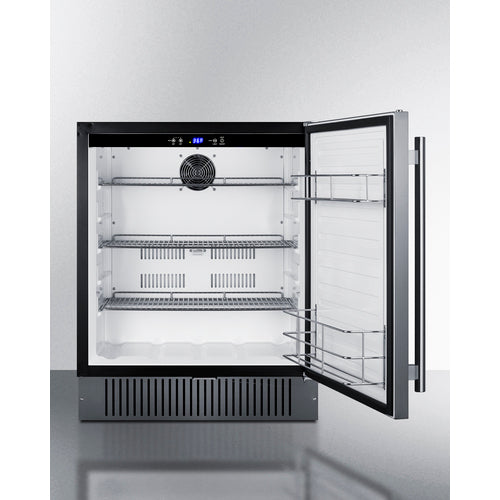

• Adjustable shelving

  Durable commercial shelving lets you rearrange the interior as needed to accommodate a variety of sizes

• Door storage

  Two racks offer the perfect storage solution for tall bottles and condiments

• Slotted floor

  Floor features bottle slots that help to keep them in place as needed

• Automatic defrost

  Reduced maintenance with auto defrost system

• Internal fan

  Fan-forced cooling ensures the unit is evenly cooled from top to bottom

• Interior lighting

  Dimmable LED lighting (with 3 brightness settings) in an attractive blue hue

• Professional handle

  Stainless steel handle adds style to any setting

• Temperature alarm

  Alarm sounds if temperature goes out of recommended range after 2 hours

• Sabbath mode

  Optional feature disables alarms, interior light, and displays for up to 96 hours

• Reversible door

  User-reversible door swing makes it easy to best accommodate your setting

• Integrated hinge

  Flat stainless steel hinge ensures no added height is needed when installing under a counter

• Sealed back

  Space-saving design with no exposed coils for easier cleanability

• Right angle plug

  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

• Fully finished black cabinet

  Allows unit to be used freestanding

• 100% CFC free

  Environmentally friendly design with no ozone-damaging chemicals

• CARB Compliant

  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 4.98 cu.ft. (141 L)

• Defrost Type: Automatic

• Door: Stainless Steel

• Cabinet: Black

• US Electrical Safety: ETL

• Canadian Electrical Safety: ETL-C

• Sanitation: ETL-S

• Energy Usage/Year: 235.0 kWh/year

• Amps: 1.25

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 101.0 lbs. (46 kg)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• Sabbath Mode: Yes

• Door Swing: RHD

• Reversible: Yes

• Shelf Type: Chrome

• Shelf Qty: 3

• Full Door Shelf Qty: 2

• Adjustable Shelves: Yes

• Thermostat Type: Digital

• Fan Type: Interior and Exterior

• Refrigerant Type: R600a

• Refrigerant Amount: 1.23 oz.

• High Side PSI: 150.0

• Low Side PSI: 50.0

• Level Legs Qty: 4

• Interior Light: Yes

• Temperature Range: 36 to 46ºF

• Sound Level: 40.5 dB

• Interior Height: 23 1/4 Inches
• Interior Width: 22 1/2 Inches
• Interior Depth: 16 7/8 Inches
• Compressor Step Height: 4 1/4 Inches
• Compressor Step Width: 22 1/2 Inches
• Compressor Step Depth: 4 1/2 Inches
