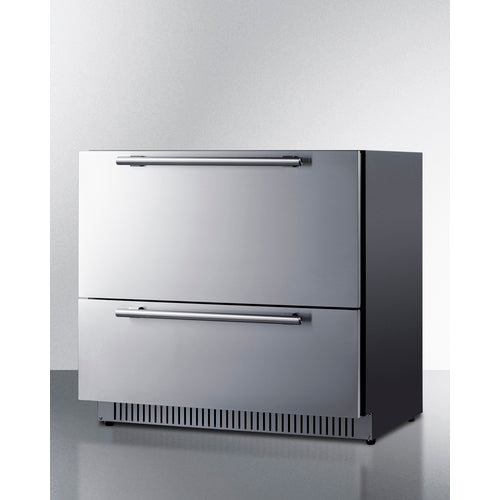

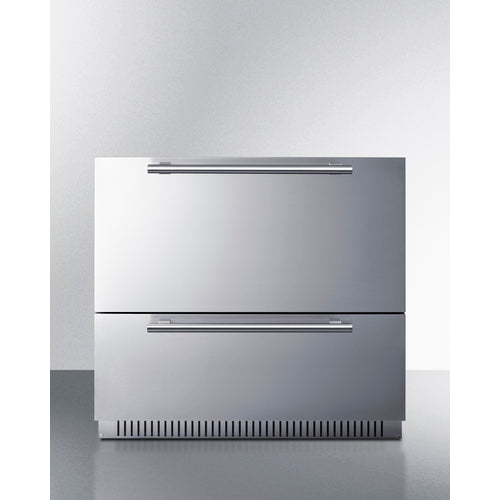

Summit 36 Inch Outdoor Refrigerator with Drawers

• 36" Wide Outdoor 2-Drawer All-Refrigerator
  Uniquely sized luxury all-refrigerator for undercounter built-in installation in residential or commercial kitchen settings
• Indoor/Outdoor compatible
  Durable, weatherproof construction designed to hold up to the elements
• Commercially approved
  ETL-S listed to NSF-7 standards allows use in commercial kitchens
• Panel-ready drawer fronts
  Drawers can be customized with overlay panels to match or accent existing cabinetry
• Stainless steel drawers
  Interior and exterior drawer fronts feature stainless steel construction in a horizontal grain for long-lasting luxury under the counter
• Built-In capable
  Front-breathing design allows the unit to be built-in under counters
• Frost-free operation
  No-frost operation for minimal user maintenance

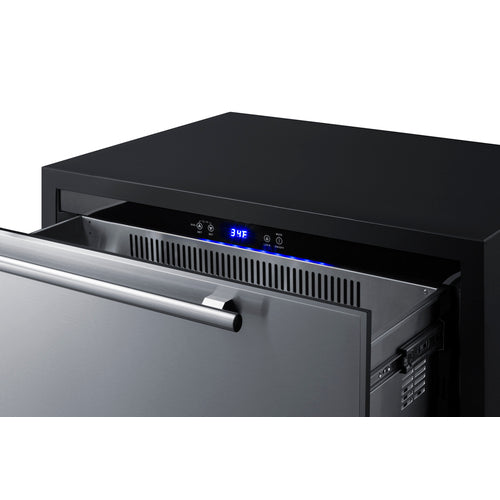

• Digital thermostat
  Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

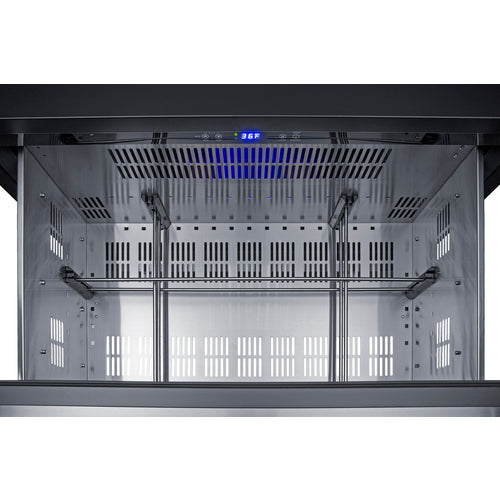

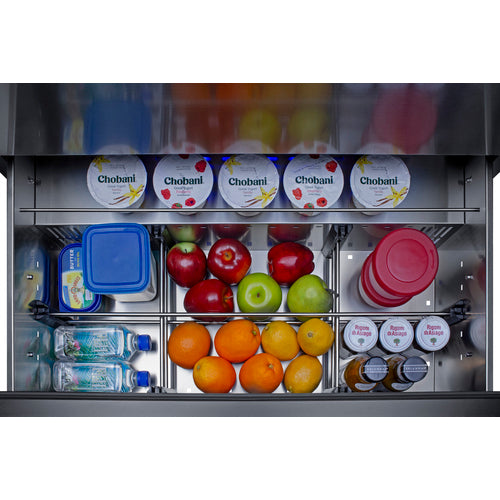

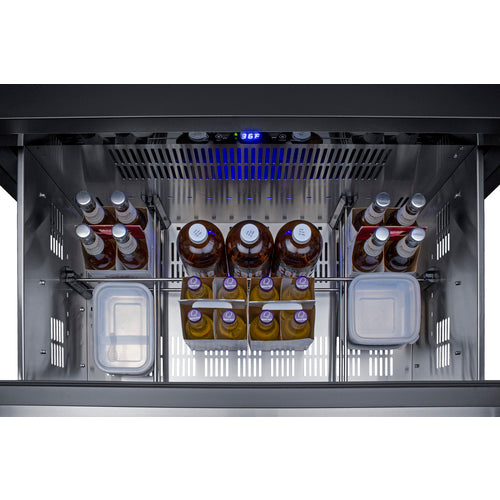

• Drawer dividers
  Each drawer includes a removable accessory that lets you divide your storage into six adjustable sections for better organization of the interior
• Open drawer alarm
  Audible alarm sounds if the drawers are left open for more than five minutes
• Sabbath mode
  Optional feature disables alarms, interior light, and displays for up to 96 hours

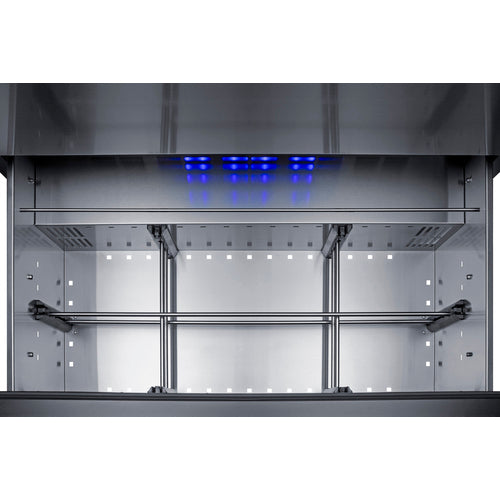

• LED lighting
  Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

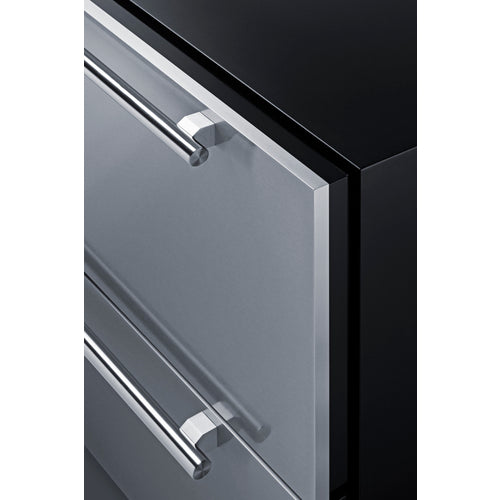

• Professional handles
  Stainless steel handles add style to any setting
• Anti-slam drawers
  Soft-close glides prevent drawers from slamming shut for additional durability and safety
• Sealed back
  Space-saving design with no exposed coils for easier cleanability
• Right-angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Anti-Tip bracket
  Bracket (included) helps prevent tipping for added safety
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 7.15 cu.ft. (202 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 290.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 152.0 lbs. (69 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: Drawer
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.41oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Interior Light: Yes
• Temperature Range: 34°F to 46°F

Interior Dimensions (Upper Drawer)

• Interior Height 1: 11 1/4 Inches
• Interior Width 1: 29 1/4 Inches
• Interior Depth 1: 15 3/4 Inches

Interior Dimensions (Lower Drawer)

• Interior Height 2: 7 5/8 Inches
• Interior Width 2: 29 1/4 Inches
• Interior Depth 2: 15 3/4 Inches

Compressor Step Dimensions

• Compressor Step Height: 5 Inches
• Compressor Step Width: 29 1/4 Inches
• Compressor Step Depth: 4 5/8 Inches
