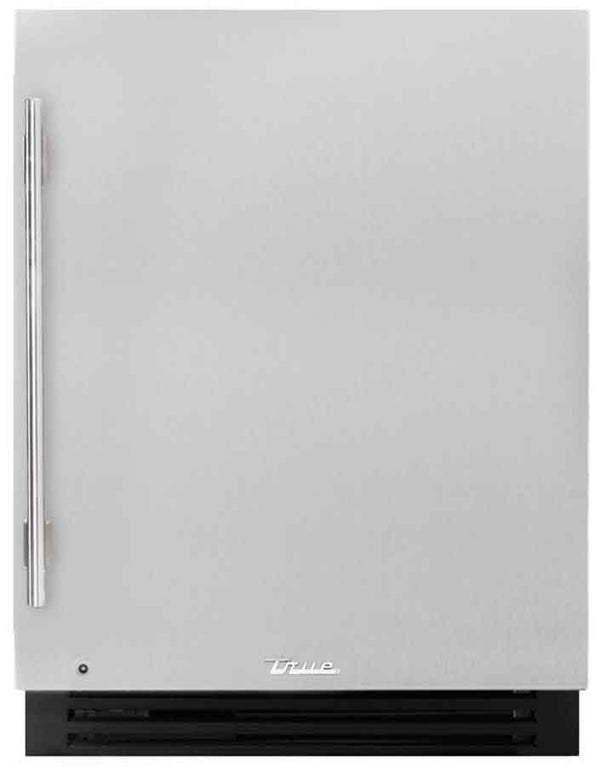

True Residential ADA Height 24 Inch Stainless Solid Right-Hinge Undercounter Beverage Center

• 32" height allows for installation under ADA-compliant counter top
•  Articulating, soft close hinge allows fully integrated, flexible installations
• Field-reversible hinge allows for flexibility in the field
•  Sleek black aluminum interior
• Black powder coated steel exterior
• One pull-out PVC coated wire wine rack and one floor wine cradle for storage of 12 total bottles
•  Forced air refrigeration system which maintains 33°– 41°F (0.5°– 5°C)
• Environmentally friendly R600a refrigerant
•  Concealed digital temperature controls allows for precise temperature management
• White LED lighting illuminates your product
• UL-rated for outdoor use • Unit comes standard with 4 adjustable leg levelers
• NSF/ANSI Standard 7 compliant for packaged food product

• Finish:  Solid Stainless Steel

• Hinge:  Right, Reversible

• Capacity:  5.0 cu. ft.

• Temperature Range:  33˚- 41˚F (0.5°- 5°C)

• Number of Shelves:  2 adjustable

• Door Lock:  Optional

• UL Rated:  Yes

• ADA Compliant:  Yes

• ENERGY STAR®:  Yes

• Voltage:  115/60/1

• Amps:  0.8

• Annual Energy Consumption (kWh):  275

• Power Cord Length (ft.):  10

• Width:  23 7/8 Inches

• Depth:  23 5/32 Inches

• Height:  31 7/8 Inches

• Cutout Width:  24 Inches

• Cutout Depth:  24 Inches

• Cutout Height:  32 Inches

• Standard Overlay Panel Width:  23 5/8 Inches

• Standard Overlay Panel Depth:  3/4 Inch

• Standard Overlay Panel Height:  28 Inches
