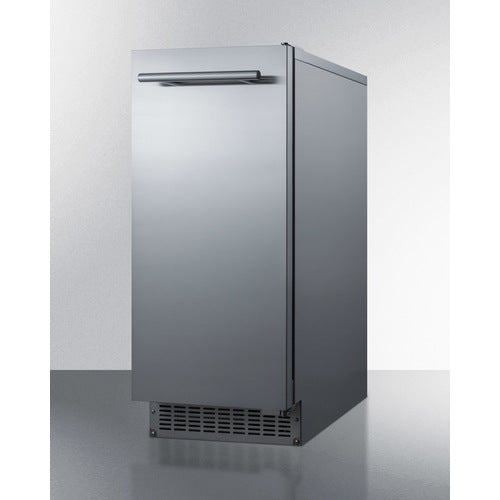

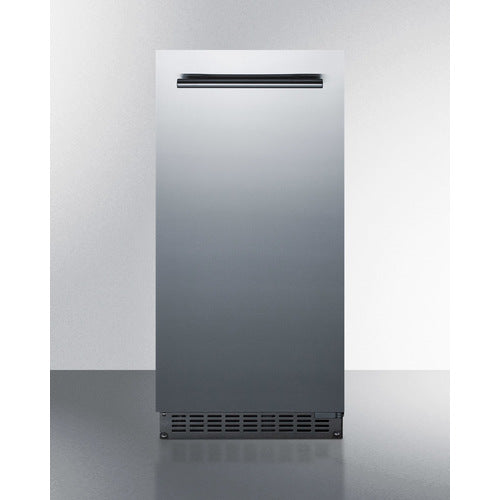

Summit 15 Inch Outdoor Ice Maker with Solid Door

• Outdoor Clear Icemaker
  15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
• Commercially approved
  ETL-S listed to NSF-12 commercial standards for use in foodservice settings
• Weatherproof design
  Durable construction for safe installation in outdoor kitchens
• 62 lb. production capacity
  Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
• Built-in capable
  Make the best use of space by installing your icemaker under the counter and flush with other cabinets
• Stainless steel wrapped exterior
  Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

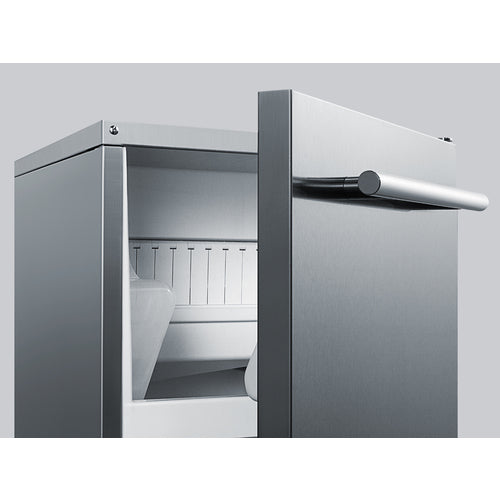

• Professional handle
  Horizontally mounted towel bar style handle in stainless steel
• Clear ice cube production
  Gourmet style rounded dice-style ice cubes
• Frost-free operation
  No-frost operation for minimum user maintenance
• Gravity drain setup
  Requires connection to gravity drain

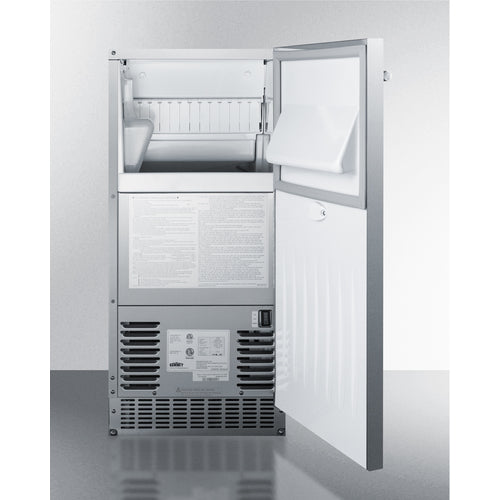

• Reversible door
  User-reversible door swing for flexible placement
• Standard water hookup
  Operates with a standard 1/4” OD water supply line
• Sealed back
  Space-saving design with easier cleanability
• Fully finished cabinet
  Allows the unit to be used freestanding

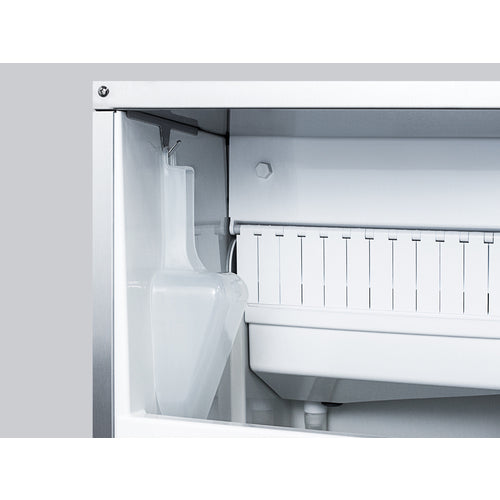

• Ice scoop included
  Interior wall includes hook to hang for easy storage
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals

• Capacity: 0.98 cu.ft. (28 L ≈ 0.99 cu.ft.)

• Defrost Type: Frost-Free

• Door: Stainless Steel

• Cabinet: Stainless Steel

• US Electrical Safety: ETL

• Canadian Electrical Safety: ETL-C

• Sanitation: ETL-S

• Amps: 4.0

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 105.0 lbs. (48 kg ≈ 105.8 lbs)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101057088

Icemaker Features

• Door Swing: RHD

• Reversible: Yes

• Daily Ice Production: 62.0 lbs. (28 kg ≈ 61.7 lbs)

• Ice Storage Capacity: 26.0 lbs. (12 kg ≈ 26.5 lbs)

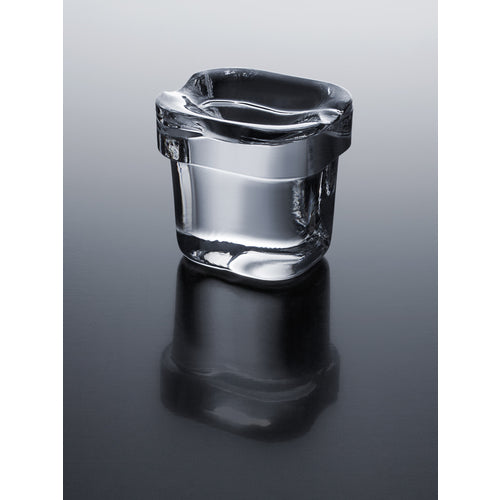

• Ice Shape: Top hat

• Size of Cube: 1 1/4" H x 1 1/8" W x 1 1/8" D

• Number of Ice Cube Sizes: 1

Refrigeration Details

• Fan Type: Exterior

• Refrigerant Type: R134a

• Refrigerant Amount: 7.4 oz.

• High Side PSI: 210.0

• Low Side PSI: 105.0

• Nominal Height: 34 Inches

• Height of Cabinet: 33 1/2 Inches

• Height to Hinge Cap: 33 5/8 Inches

• Nominal Width: 15 Inches

• Width: 14 7/8 Inches

• Nominal Depth: 23 Inches

• Depth: 22 5/8 Inches

• Depth with Handle: 24 1/2 Inches

• Depth with Door at 90°: 37 1/4 Inches
