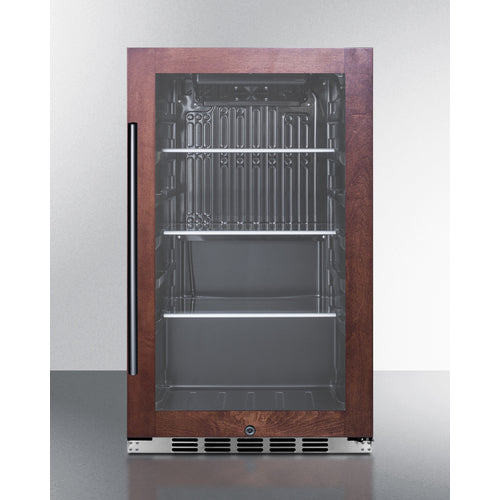

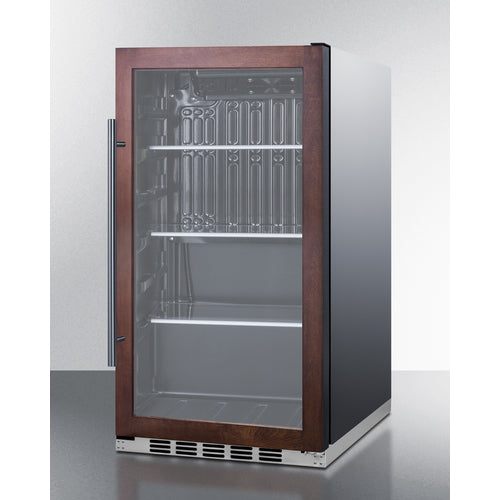

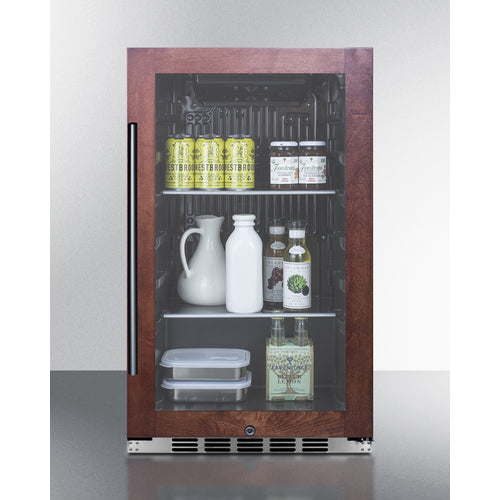

Summit 19 Inch Outdoor Beverage Center with Panel Ready Glass Door

• Shallow depth
  Unique 17 3/4" depth is ideal for home wet bars, island kitchens, and other applications with limited footprint space
• Built-in capable
  Make the best use of space by installing your refrigerator under the counter
• Panel-ready door trim
  Door frame can be customized with a custom overlay panel (panel frame dimensions: 31 9/16" H x 18 3/4" W at 3/4" minimum thickness)
• Weatherproof design
  Approved for use in the outdoors, with a sealed exterior and double pane tempered glass door
• Commercially approved
  ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings
• Stainless steel wrapped exterior
  Cabinet features 304 grade stainless steel construction for added durability and a professional look
• Double pane tempered glass door
  Heat resistant design provides clear view of stored products
• Automatic defrost
  Reduced user maintenance with auto defrost system
• Adjustable shelves
  Three glass shelves with six positions for optimal storage and easy cleaning
• LED lighting
  Automatically illuminates when the door is open for an attractive and energy efficient view
• Black interior finish
  Allows for easy cleaning and organization within the interior of the unit
• Adjustable thermostat
  Dial thermostat with seven temperature settings offers easy temperature management
• Versatile construction
  Meets both residential and commercial standards
• Sealed back
  Space saving design with easier cleanability and added protection from the elements
• Right-angle plug
  Provides flexibility in unit placement without needing added depth
• Factory installed lock
  Door includes a lock and key for optional security. If planning to use the lock, be sure to include a 5/8" hole in the lower center of your custom panel
• Height adjustable
  Four leveling legs allow you to adjust the height between 33 7/8" and 34 1/2" to best fit your undercounter space
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design does not contain ozone-damaging chemicals
• CARB Compliant
  Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 3.13 cu.ft. (89 L)
• Defrost Type: Automatic
• Door: Glass / Panel-Ready Frame
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 285.0 kWh/year
• Amps: 1.3
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 85.0 lbs. (39 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Door Swing: RHD
• Reversible: Factory Reversible
• Height Adjustable: Yes
• Shelf Type: Glass
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Can Storage: Yes
• Thermostat Type: Dial
• Fan Type: Interior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.88oz.
• High Side PSI: 320.0
• Low Side PSI: 120.0
• Level Legs Qty: 2
• Interior Light: Yes
• Temperature Range: 34 to 50ºF
• Sound Level: 32.6 dB

• Interior Height: 29 Inches
• Interior Width: 16 Inches
• Interior Depth: 12 3/4 Inches
• Compressor Step Height: 7 Inches
• Compressor Step Width: 16 Inches
• Compressor Step Depth: 6 1/4 Inches
