Summit 24 Inch Outdoor Refrigerator with Solid Door and Lock

• 24" Wide Outdoor Refrigerator
  Built-in undercounter all-refrigerator designed and constructed for safe use in outdoor kitchens
• Weatherproof design
  Solid construction allows placement in the outdoors
• Stainless steel door
  Elegant style with a vertical grain and designed to hold up in outdoor settings
• Commercially listed
  ETL-S listed to ANSI-NSF Standard 7 for commercial use
• Built-in capable
  Make the best use of space by installing your unit under the counter and flush with other cabinets
• Frost-free operation
  No-frost operation for minimum user maintenance
• White interior
  Classic interior allows for easy cleaning and viewing of products
• Factory installed lock
  Keyed lock for a secure interior (2 keys included)
• Adjustable glass shelves
  Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Door storage
  Two racks offer the perfect storage solution for tall bottles and condiments
• 3-level LED lighting
  Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

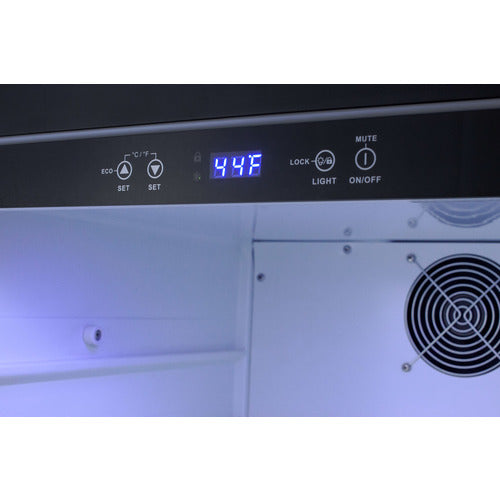

• Digital thermostat
  Intuitive touch controls located inside the unit make temperature adjustment simple, with a temperature display in Celsius or Fahrenheit
• Reversible door
  User-reversible door swing allows for more flexibility in placing the unit
• Slotted floor
  Allows for easy storage of bottles
• Sabbath mode
  Optional feature disables alarms, interior light, and displays for up to 96 hours
• Fan-forced cooling
  Internal fan ensures the interior is evenly cooled from top to bottom
• Fully finished cabinet
  Allows the refrigerator to be used as a freestanding model
• Professional handle
  Horizontally mounted handle in brushed stainless steel complements many styles of cabinetry
• Stainless steel kickplate
  Designer kickplate completes the look
• Integrated hinge
  Flat stainless steel hinge ensures no added height is needed when installing under a counter
• Sealed back
  Space saving design with easier cleanability
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 4.6 cu.ft. (130 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 294.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 114.0 lbs. (52 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: RHD
• Reversible: Yes
• Shelf Type: Glass
• Shelf Qty: 3
• Full Door Shelf Qty: 2
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.23oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Level Legs Qty: 2
• Interior Light: Yes
• Temperature Range: 35.6ºF to 46.4ºF
• Sound Level: 34 dB

Interior Dimensions

• Interior Height: 25 3/4 Inches
• Interior Width: 19 Inches
• Interior Depth: 17 1/2 Inches

Compressor Step Dimensions

• Compressor Step Height: 3 1/2 Inches
• Compressor Step Width: 19 Inches
• Compressor Step Depth: 5 Inches
