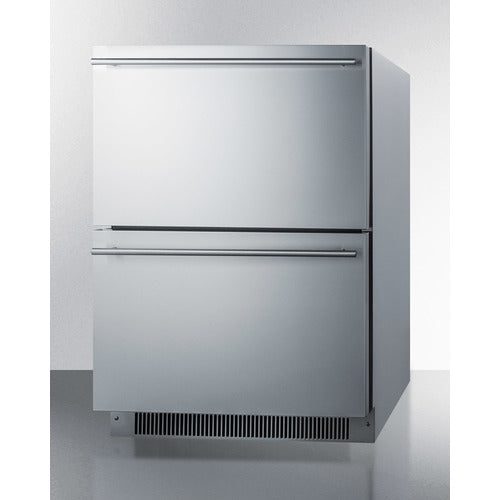

Summit 24 Inch Outdoor ADA Refrigerator with Drawers

• 2-Drawer All-Refrigerator
  24" wide 3.7 cu.ft. all-refrigerator with two gliding drawers
• ADA compliant design
  Sized just under 32" high to allow installation under lower ADA compliant counters
• Built-in capable
  Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
• Indoor/Outdoor compatible
  Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior

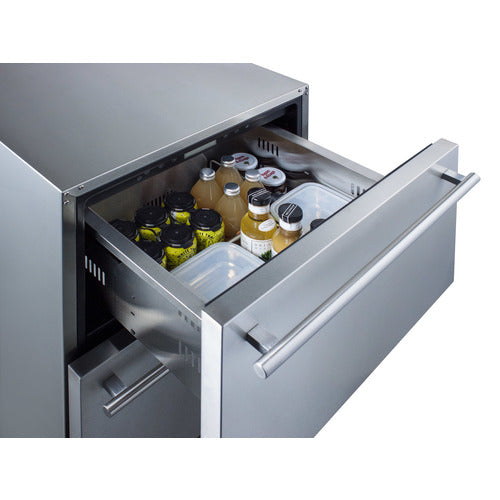

• Stainless steel drawers
  Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
• Panel-ready drawer fronts
  Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
• Professional handles
  Sleek stainless steel handles add an elegant touch to any setting
• Frost-free
  No-frost operation for minimum user maintenance
• Digital thermostat
  Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
• Interior lighting
  Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
• Fan-forced cooling
  Provides for efficient, even cooling of the entire unit

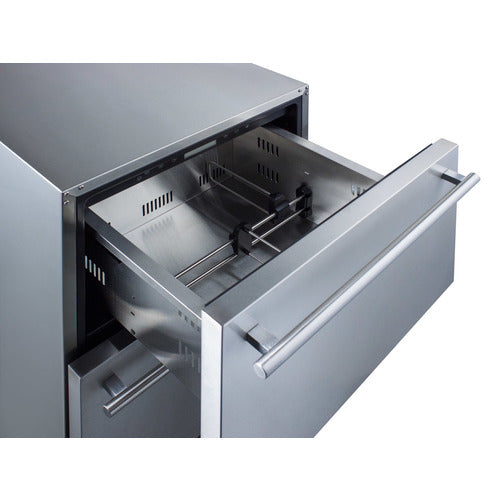

• Drawer dividers
  Two adjustable dividers provide flexibility when organizing the interiors
• Sliding basket
  Removable chrome basket included for added storage convenience
• Temperature alarm
  High temperature alarm sounds if the unit's interior goes out of the recommended range
• Open drawer alarm
  Audible alarm will sound if either drawer is left open longer than one minute
• Sabbath mode
  Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
• Child lock
  Disables digital controls after two minutes of activity for added safety
• Temperature memory function
  Unit will restore the most recent temperature settings after losing power
• Right-angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Sealed back
  Space-saving design with no exposed coils for easier cleanability and added protection from the elements
• Stainless steel wrapped cabinet
  304 grade stainless steel construction around the exterior for true luxury in the home
• Stainless steel kickplate
  Completes the look right down to the toe kick
• Anti-tip bracket
  Included and recommended for user-installation to reduce the risk of tipping
• Commercially approved
  ETL-S listed to NSF-7 standards to allow use in commercial establishments
• Matching freezer
  Pair with the ADFD243CSS freezer to create a complete 2-drawer undercounter set
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 3.7 cu.ft. (105 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 185.0 kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 136.0 lbs. (62 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years

Sabbath Mode: Yes

• Door Swing: Drawer
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.38 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs Qty: 4
• Interior Light: Yes
• Temperature Range: 36 to 43ºF
• Sound Level: 33 dB

• Drawer Dimensions
• Interior Height 1: 8 Inches (20 cm)
• Interior Width 1: 17 Inches (43 cm)
• Interior Depth 1: 14 1/2 Inches (37 cm)
• Interior Height 2: 8 Inches (20 cm)
• Interior Width 2: 17 Inches (43 cm)
• Interior Depth 2: 14 1/2 Inches (37 cm)
• Compressor Step Dimensions
• Compressor Step Height: 4 Inches (10 cm)
• Compressor Step Width: 17 Inches (43 cm)
• Compressor Step Depth: 3 1/2 Inches (9 cm)
