Summit 24 Inch Outdoor ADA Refrigerator with Drawers

• 24" Wide 2-Drawer Refrigerator-Freezer
  Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
• Weatherproof design for outdoor use
  Durable construction allows safe installation in outdoor kitchens
• ADA compliant design
  Sized just under 32" high to allow installation under lower ADA compliant counters
• Built-in capable
  Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
• Stainless steel drawers
  Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
• Panel-ready drawer fronts
  Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
• Professional handles
  Sleek stainless steel handles add an elegant touch to any setting
• Frost-free operation
  No-frost operation for minimum user maintenance

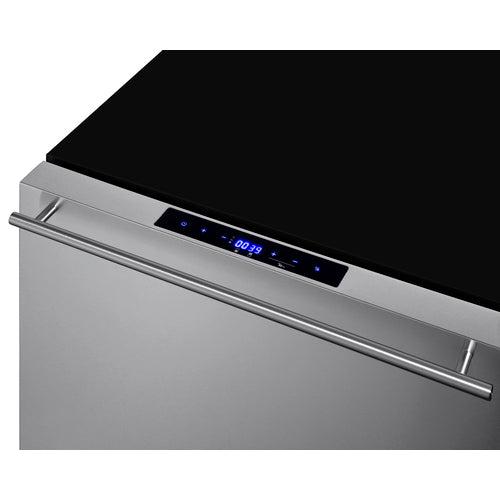

• Digital thermostat
  Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

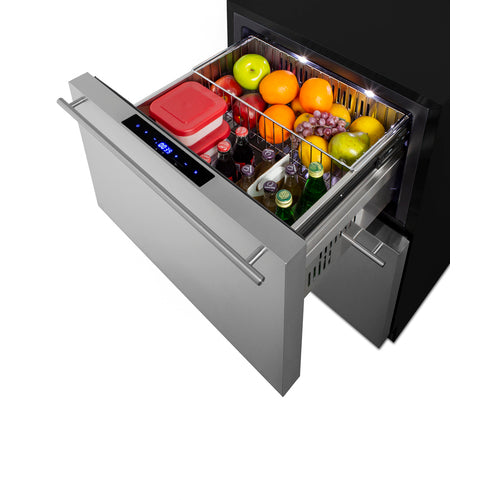

• LED lighting
  Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior
• Internal fan
  Fan-forced cooling ensures the unit is evenly cooled from top to bottom

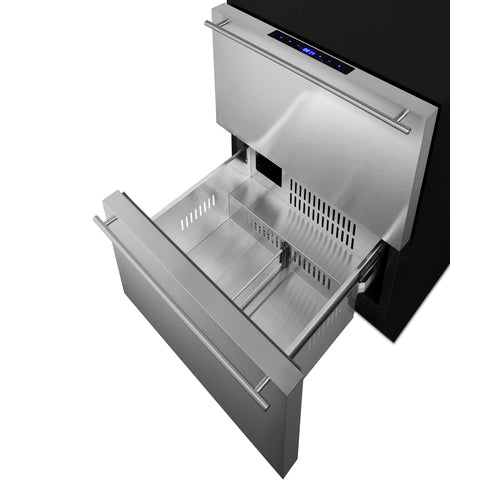

• Drawer dividers
  Two adjustable dividers make it simple to organize the drawer interiors

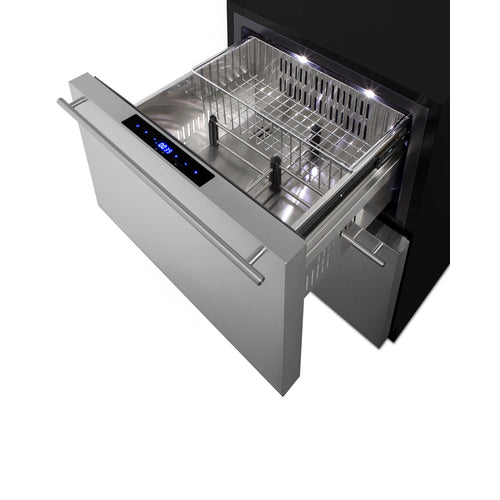

• Sliding basket
  Removable chrome basket included for added storage convenience
• Temperature alarm
  High temperature alarm sounds if the unit's interior goes out of the recommended range
• Open drawer alarm
  Audible alarm will sound if either drawer is left open longer than one minute
• Sabbath Mode
  Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
• Child lock
  Disables digital controls after two minutes of activity for added safety
• Temperature memory function
  Unit will restore the most recent temperature settings after losing power
• Right angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Sealed back
  Space-saving design with no exposed coils for easier cleanability and added protection from the elements
• Fully finished black exterior cabinet
  Allows the unit to be used freestanding
• Anti-tip bracket
  Included and recommended for user-installation to reduce the risk of tipping
• Commercially approved
  ETL-S listed to NSF-7 standards to allow use in commercial establishments
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 3.32 cu.ft. (94 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 370.0 kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Door Swing: Drawer
• Interior Light: Yes
• Interior Height: 8.0" (20 cm)
• Interior Width: 17.0" (43 cm)
• Interior Depth: 14.5" (37 cm)
• Temperature Range: 36°F to 43°F
• Interior Height: 8.0" (20 cm)
• Interior Width: 17.0" (43 cm)
• Interior Depth: 14.5" (37 cm)
• Temperature Range: -11°F to 11°F
• Thermostat Type: Digital
• Fan Type: Interior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.38 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs: 4
• Compressor Step Height: 4.0" (10 cm)
• Compressor Step Width: 17.0" (43 cm)
• Compressor Step Depth: 3.5" (9 cm)
• Sabbath Mode: Yes
• Sound Level: 34.6 dB

• Nominal Height: 32 Inches
• Height of Cabinet: 31 7/8 Inches
• Nominal Width: 24 Inches
• Width: 23 3/8 Inches
• Nominal Depth: 23 Inches
• Depth: 22 1/2 Inches
• Depth with Handle: 23 7/8 Inches
• Depth with Door at 90°: 34 1/4 Inches
