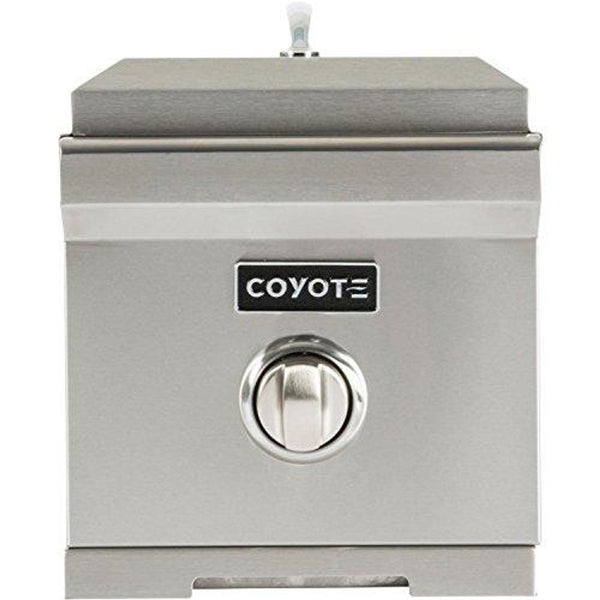

Coyote C1SB 12-Inch Built-In Gas Single Side Burner

• One 15,000-BTU brass burner
• Suitable for sauces, side dishes, sautéing, boiling, and small pots
• Stainless-steel construction with protective lid included
• Push-and-turn mechanical spark ignition
• No 110/120V electrical outlet required
• Counter-supported slide-in installation; no bottom support deck required for a properly built non-combustible enclosure
• Available in natural gas or liquid propane

• Model family: C1SB
• Configuration: Built-in single side burner
• Overall Dimensions: 11-3/8" W × 13" H × 17" D
• Cutout Dimensions: 10-1/8" W × 10-1/4" H × 13-5/8" D
• Burner: One brass burner
• Total Output: 15,000 BTUs
• Construction: Stainless steel
• Ignition: Integrated push-and-turn spark system
• Electrical Connection: Not required
• Fuel Options: Natural gas or liquid propane; select the model that matches the installation's gas supply

• Natural Gas: C1SBNG
• Liquid Propane: C1SBLP

• CCVRSB-BIG fitted cover
• CJAKTC1SB insulated jacket for combustible construction

This listing is for the previous-generation C1SB, not the current C3SB. Installation and gas connection should be completed by a qualified professional in accordance with Coyote's instructions and local codes. Match the appliance rating plate to the gas supply; do not cross-connect LP and natural-gas models. Provide at least two enclosure vents, each at least 20 square inches and open to fresh air, with LP ventilation located low and natural-gas ventilation high. Maintain the required 24-inch clearance from combustible materials or use the compatible insulated jacket where Coyote requires it. Verify cutout dimensions, rear clearances, ventilation, and fuel requirements before construction.

C1SB/C1DB Use & Care Manual | Coyote Product & Installation Specifications
