Fire Magic Aurora 24-Inch Built-In Power Burner — Grid & Fuel Options

• Wide heat range: The inner burner adjusts from 3,000 to 15,000 BTU, while the outer burner supplies up to 45,000 BTU.
• 60,000-BTU total output: Delivers concentrated heat for large cookware and demanding outdoor recipes.
• 10-inch Flame Collimator: Focuses heat toward the center of the cooking zone.

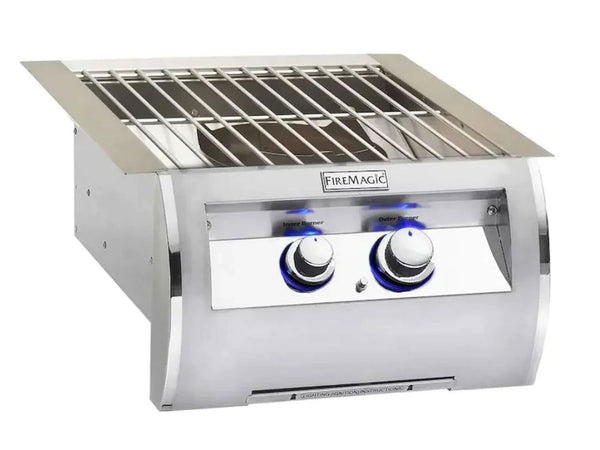

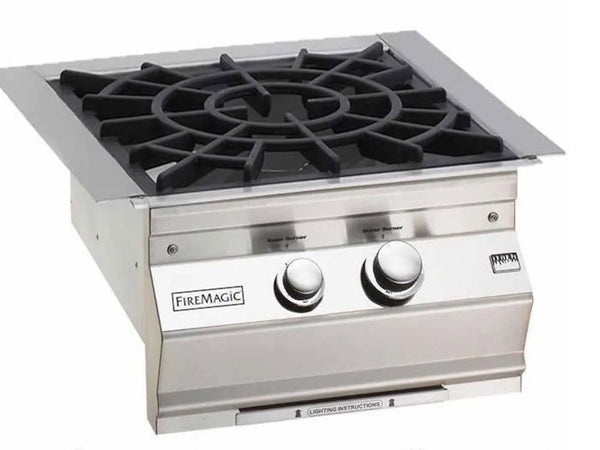

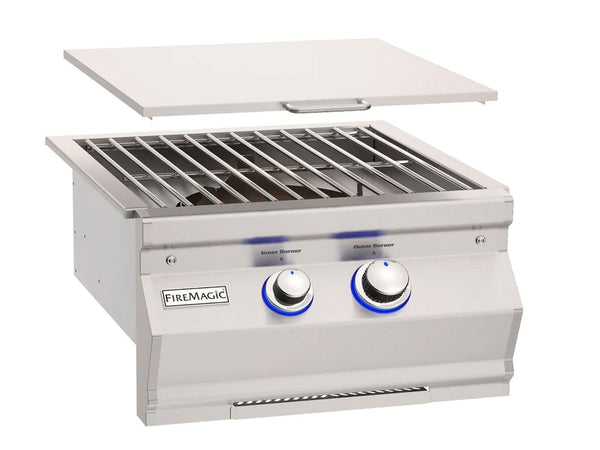

• Grid choice: B1 SKUs include a stainless steel grid; B2 SKUs include a porcelain cast-iron grid.
• Hot-surface ignition and backlit controls: Connects to an Aurora grill transformer; Fire Magic specifies transformer 24182-18 when the burner is installed independently.

• Nominal size: 24-inch class
• Built-in opening width/depth: 19 in. W × 18¾ in. D
• Total burner output: 60,000 BTU
• Inner burner range: 3,000–15,000 BTU
• Outer burner output: Up to 45,000 BTU
• Fuel choices: Natural gas or propane
• Compatible insulating liner: 3278-52

B1 identifies the stainless steel grid and B2 identifies the porcelain cast-iron grid. N means natural gas and P means propane. Order the exact factory fuel and grid combination required.

Confirm the exact SKU, fuel supply, ventilation, clearances, transformer/electrical connection, and enclosure construction before ordering. Fire Magic’s current catalog and dimensional guide differ by ¼ inch on required cutout height, so verify height on the current SKU installation drawing before fabrication. Use insulating liner 3278-52 where required.
