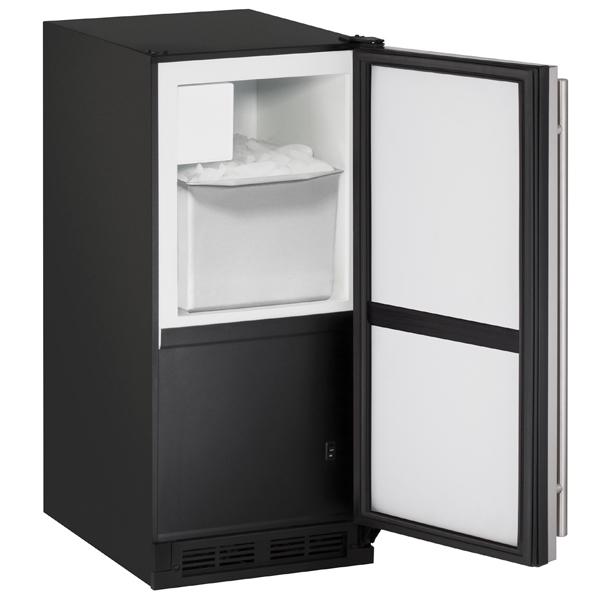

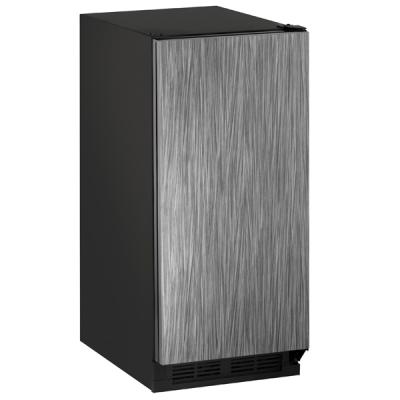

U-Line Ice Maker 15" Reversible Hinge Integrated Solid 230v
U-Line Ice Maker 15" Reversible Hinge Integrated Solid 230v
U-Line Ice Maker 15" Reversible Hinge Integrated Solid 230v

U-Line Ice Maker 15" Reversible Hinge Integrated Solid 230v

SKU: BI1215INT-20A

$2,309.00

Description Features Specifications Dimensions Manuals

For over 50 years, U-Line Crescent Ice Makers have been the first choice for homeowners. Our 15" 1000 Series 230V Crescent Ice Maker provides unsurpassed performance, delivering up to 25 lbs. of ice per day and a storage capacity of 25 lbs. of ice. U-Line’s 1000 Series Crescent Ice Machine is available with an integrated door finishe that accepts a custom door panel to match your surrounding cabinetry. No drain required.

  • Makes crescent shaped cubes approx. 1⁄2" W x 3⁄4" H x 2 1⁄4" L
  • Daily ice production is approximately 4 times greater than the average household refrigerator
  • Produces and stores up to 25 lb of ice per day
  • On / off switch
  • Stainless steel handle (7⁄8" diameter)
  • Integrated model requires 3⁄4" custom door panel and handle (not supplied by U-Line)
  • Field reversible door is shipped right-hand hinged
  • Built-in or freestanding
  • Four adjustable leveling legs
  • No drain required
  • Amps: Running (115 v): 2.5 A
  • Capacity Ice: 25 lb
  • Control Type: Switch
  • Defrost Type: Manual
  • Ice Production: 25 lb
  • Ice Type: Crescent Ice
  • Refrigerant Type: R134a
  • Dimensions: Product Depth: 23 1/4" (514mm)
  • Dimensions: Product Height: 34 1/8" (867mm)
  • Dimensions: Product Width: Dimensions: 14 15/16" (379mm)

CAD-2D (DWG)

CAD-3D (DWG)

Current Product Warranty

Expanded View of Parts

Panel Specs

Quick Start Guide

Spec Sheet

User Guide & Service Manual
