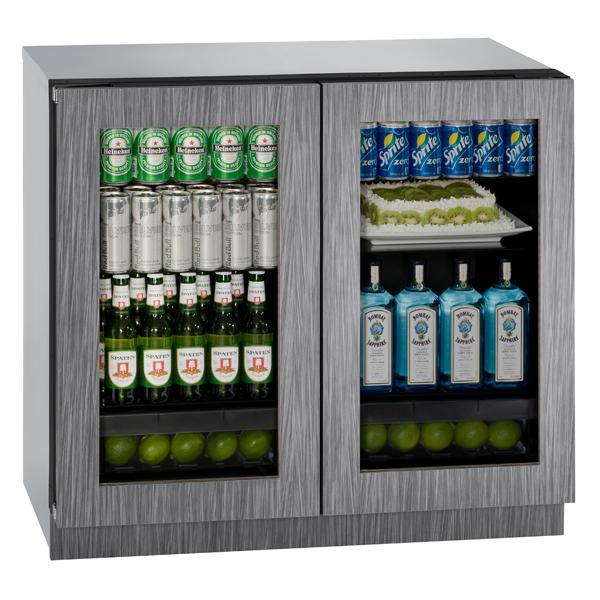

U-Line Glass Refrigerator 36" Dual Zone Integrated Frame 115v

U-Line Glass Refrigerator 36" Dual Zone Integrated Frame 115v

SKU: 3036RRGLINT-00B

$5,139.00

Description Features Specifications Dimensions Manuals

Store fresh produce, deli foods, pantry items, beverages, and more in our 36" 3000 Series Refrigerator. This product features convection cooling for quick and consistent temperatures. Sleek and sophisticated, U-Line's 3000 Series features black interiors with bright white LED theater lighting, full-text read out U-Select® Controls, and limitless integration capabilities with an articulating door hinge, door finishes in stainless steel or integrated panel-ready, and fully adjustable toe-kicks that can accept a custom panel to match your surrounding cabinetry.


  • Convection cooling system provides a quick cool down and consistent temperature
  • Black interior is illuminated with LED theater lighting and can be set to stay on for 3, 6, or 24 hours
  • LowE coated, argon gas filled, double thermopane glass door provides protection from harmful UV Light
  • Three adjustable tempered glass shelves in each compartment
  • Full-extension, slide-out crisper drawers are removable for easy cleaning
  • U-Select® Control with digital OLED display
  • Independently controlled dual-zones
  • Temperature range: 34°F to 70°F
  • Volume of 6.9 cu ft holds up to 158 bottles (12 oz) or 246 cans (12 oz)
  • Stainless steel handles (7⁄8" diameter)
  • Integrated model requires 3⁄4" custom door panel and handle (not supplied by U-Line)
  • Four adjustable leveling legs
  • Articulating door hinges
  • Adjustable grille can be shifted front-to-back and up-and-down
  • Grille can accept an integrated toe-kick
  • Designed to be built-in (galvanized exterior cabinet)
  • Amps: Running (115 v): 1.2 A
  • Capacity Bottle: 158
  • Capacity Can: 246
  • Capacity: Total Volume (cu ft): 6.9 cu ft
  • Control Type: Digital
  • Defrost Type: Automatic
  • Energy Consumption: Avg. Per Year: 320 kWh
  • Refrigerant Type: R600a
  • Sabbath (Star K Certified): Yes
  • Temperature Range: 34°F to 70°F
  • Dimensions: Product Depth: 23 7/16" (595mm)
  • Dimensions: Product Height: 33 11/16" (856mm)
  • Dimensions: Product Width: 35 7/16" (900mm)

CAD-2D (DWG)

CAD-3D (DWG)

Compliance

Current Product Warranty

Energuide (Canada)

Energy Guide (US)

Expanded View of Parts

Quick Start Guide

Spec Sheet

User Guide & Service Manual
