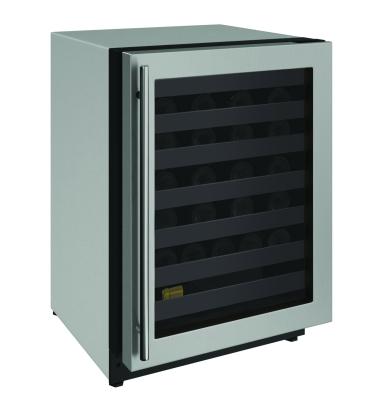

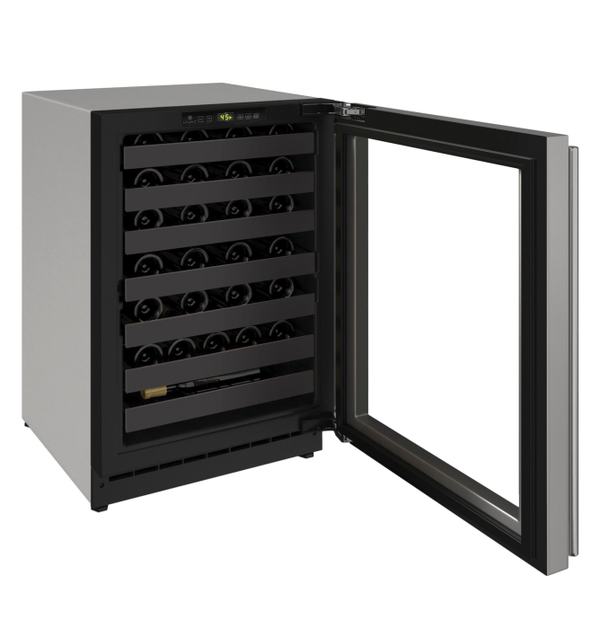

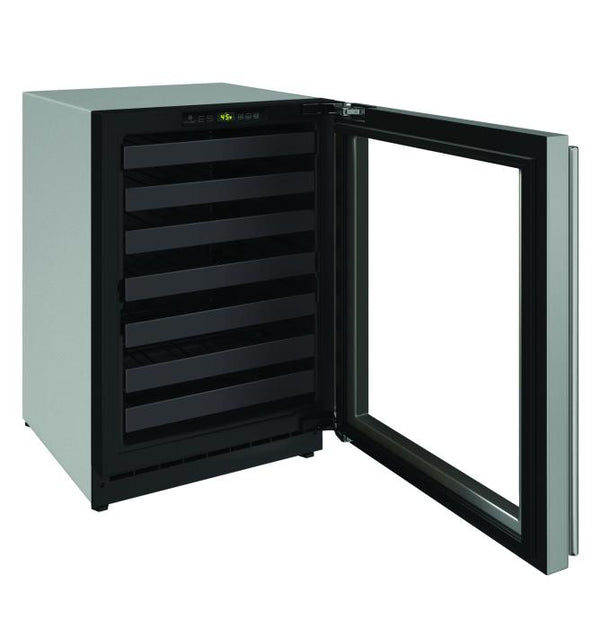

U-Line 24 Inch Outdoor Wine Cooler with Glass Door

• Convection cooling system provides a quick cool down and consistent temperature
• Black interior is illuminated with LED lighting and can be set to stay on for 3 hours
• LowE coated, argon gas filled, double thermopane glass door provides protection from harmful UV Light
• Wine racks accommodate a variety of bottle shapes and sizes; the fourth and fifth racks allow for larger diameter wine and champagne bottles
• Full-extension black coated wine racks
• Digital touch pad control
• Temperature range: 38°F to 65°F
• Volume of 4.7 cu ft holds up to 43 wine bottles (750 ml)
• Stainless steel handle (7⁄8" diameter)
• Integrated model requires 3⁄4" custom door panel and handle (not supplied by U-Line)
• Field reversible door is shipped right-hand hinged
• Four adjustable leveling legs
• Designed for built-in applications (galvanized exterior cabinet)
• Articulating door hinges
• Lock models must be ordered right-hand or left-hand hinged
• Grille can accept an integrated toe-kick

• Amps: Running (115 v): Amps: Running (115 v)
• Capacity: Total Volume (cu ft): 4.7 cu ft
• Capacity: Wine Bottle (750 ml): 43
• Control Type: Digital
• Defrost Type: Automatic
• Energy Consumption: Avg. Per Year: 85 kWh
• Refrigerant Type: R600a
• Sabbath (Star K Certified): Yes
• Temperature Range: 38°F to 65°F

• Dimensions: Product Depth: 23 7/16 Inches (595mm)
• Dimensions: Product Height: 33 11/16 Inches (856mm)
• Dimensions: Product Width: 23 5/8 Inches (600mm)

CAD-2D (DWG)

CAD-3D (DWG)

Compliance

Current Product Warranty

Energuide (Canada)

Expanded View of Parts

Quick Start Guide

Spec Sheet

User Guide & Service Manual
