Fire Magic Vent Hood 48” w/ fan (1200 CFM)

Fire Magic Vent Hood 48” w/ fan (1200 CFM)

SKU: 48-VH-7

$4,682.71

Description Features Specifications Dimensions Manuals

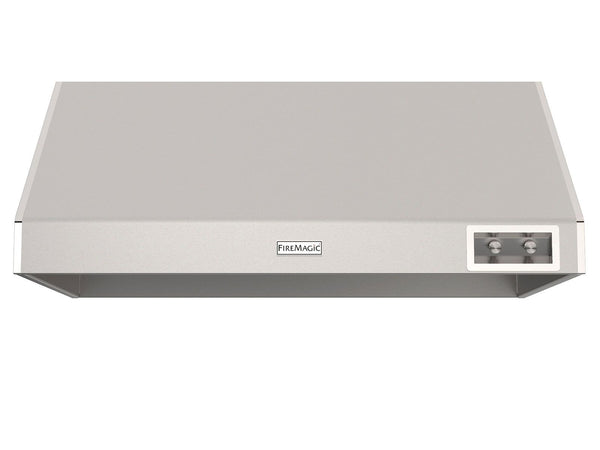

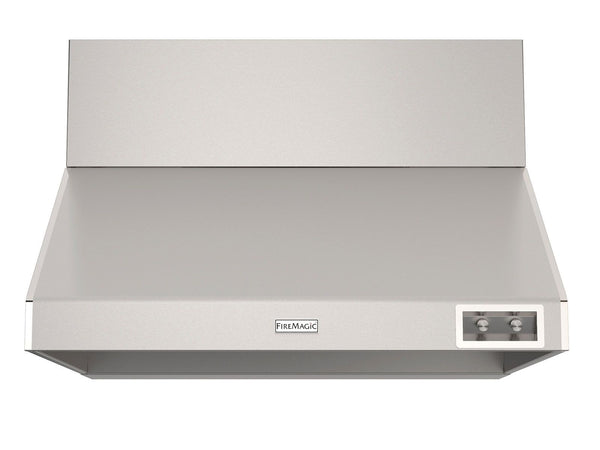

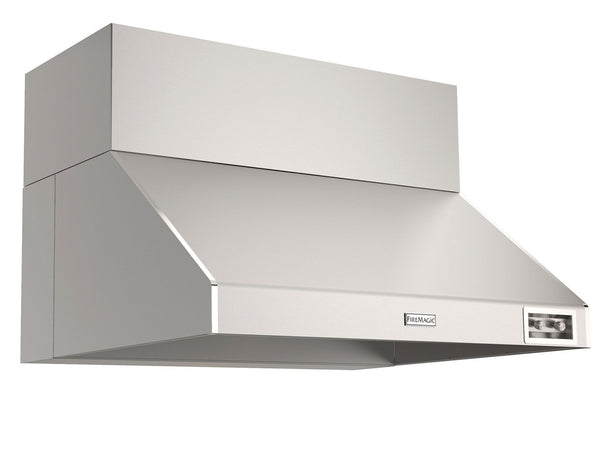

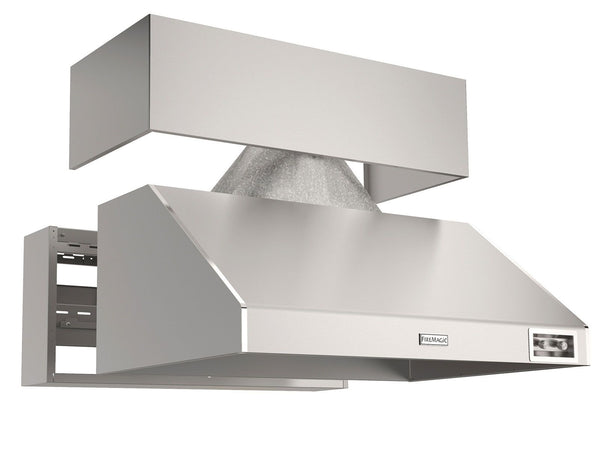

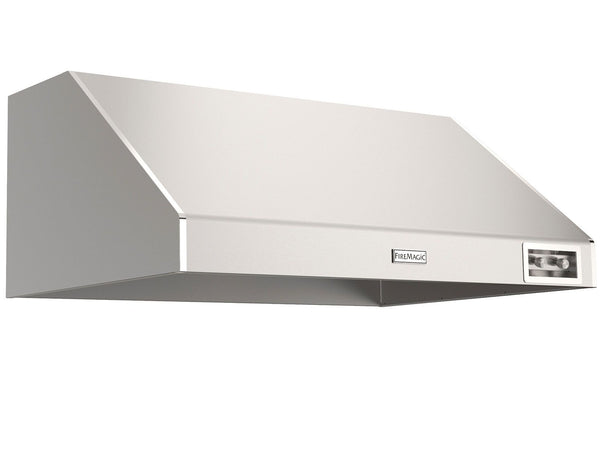

Fire Magic 48-VH-7 Vent Hood with Fan, 48-Inch  is designed specifically for the outdoor grilling environment to exhaust excess smoke and heat from covered patios. The 1200 CFM dual fan design may be configured to vent either vertically or horizontally to suit the application. Powerful undermount halogen lamps illuminate the space for evening grilling.

  • Stainless Steel Construction - Manufactured with high quality 304 stainless steel for durability and utility
  • 1200 CFM Fan - 1,200 Cubic Feet per Minute fan system quickly ventilates everything within its proximity
  • Integrated Lighting - Dual halogen lights and blue LEDs enhance the utility and ambiance
  • Thermal Safety Sensor - Integrated safety sensor automatically activates the fans at 140 degrees
  • Aluminum Filters - Anodized aluminum filters can be easily removed and are dishwasher safe
  • Dimensions - 48" x 18" x 30" (W x H x D)
  • Manufacturer: Fire Magic
  • Class: Premium
  • Collection Name: Fire Magic Vent Hoods
  • Exterior Material: Stainless Steel
  • Exterior Stainless Grade: 304 Stainless Steel
  • Primary Color: Stainless Steel
  • Width Range: 40 - 49 Inches
  • Depth (Front to Back): 30 Inches
  • Vent Mounting Type: Wall Mount
  • Hood Style: Canopy
  • Blower Type: Internal
  • Venting Type: Ducted
  • CFM: 1,200 CFM
  • Fan Speed: 2
  • Volts: 110 Volts
  • Approved For Outdoor Use: Yes
  • Made in the USA: Yes
  • Commercial Grade:  No
  • Electrical requirements: 120VAC / 60Hz / 15 AMP min. / GFCI outlet
  • Blowers (2): 1200 CFM (600 CFM each)
  • Power Consumption: 1010 watts
  • Halogen Lights Rating: 120V / 50 watt halogen bulb
  • Width: 48"
  • Depth: 30"
  • Height: 18"
