Dometic DrawBar 5C Glass-Front Wine Cooling Drawer, 5-Bottle

Available Now!

Dometic SKU: 9620000536

$1,299.00

Description Key Features Specifications

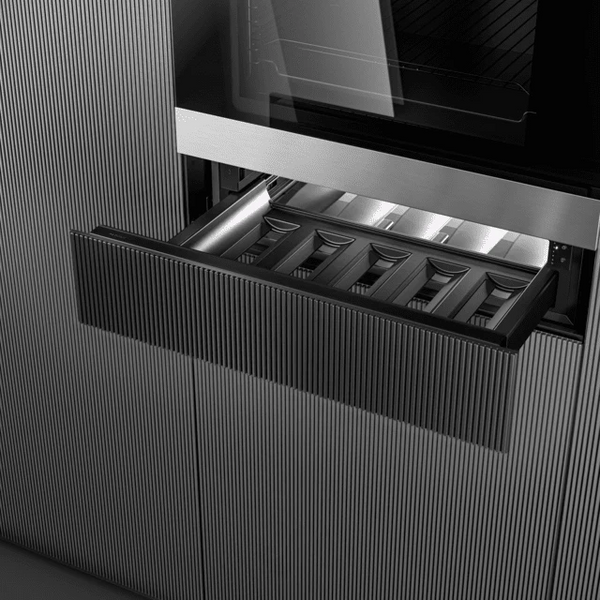

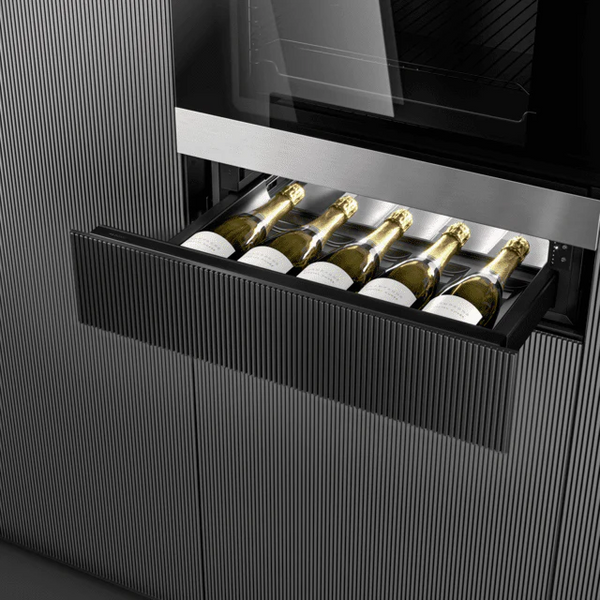

The Dometic DrawBar 5C stores five bottles in a compact wine-cooling drawer with a clear glass front. Five preset temperatures cover common serving styles, while soft illumination and a humidity tray create a polished, easy-to-access station for wine service.

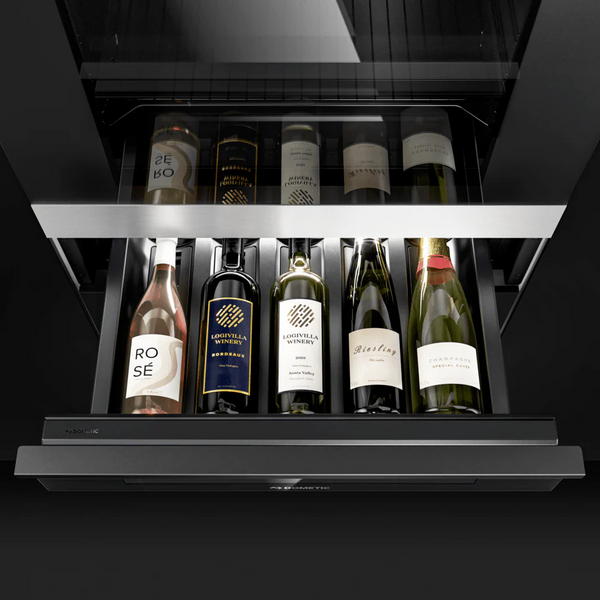

  • Holds five bottles, including bottles up to 3.8 inches in diameter

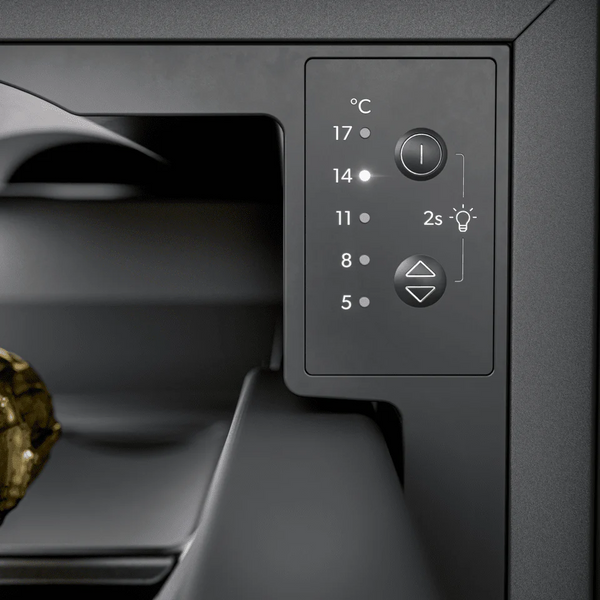

  • Five preset temperatures: 41, 45, 51, 57 or 63°F
  • Clear glass front displays the bottles
  • Soft interior illumination with a fading effect
  • Compressor cooling system

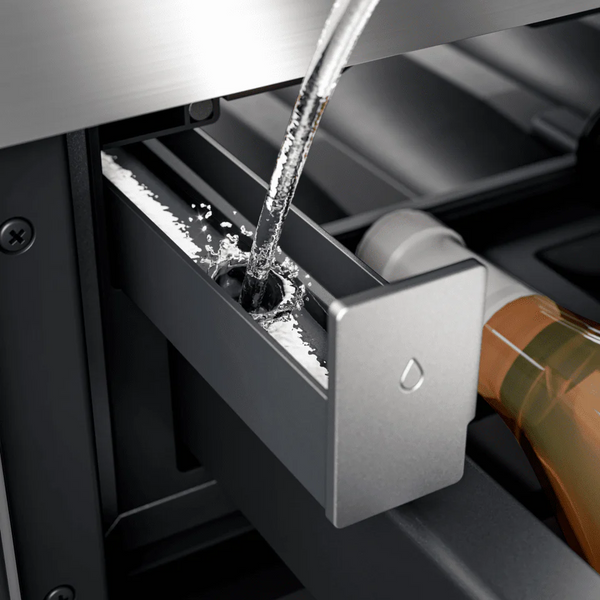

  • Humidity tray supports the cooling environment
  • Automatic defrost
  • Model: DrawBar 5C
  • Dometic product number: 9620000536
  • Dimensions: 23.5 in. W × 23.3 in. D × 5.5 in. H
  • Input: 110–120 V, 60 Hz, 84 W
  • Refrigerant: R600a
  • Noise rating: 45 dB(A)
  • Maximum internal load: 22.05 lb.

Placement note: This appliance is designed for cabinet integration. Follow the current Dometic installation leaflet for ventilation and surrounding-clearance requirements.
