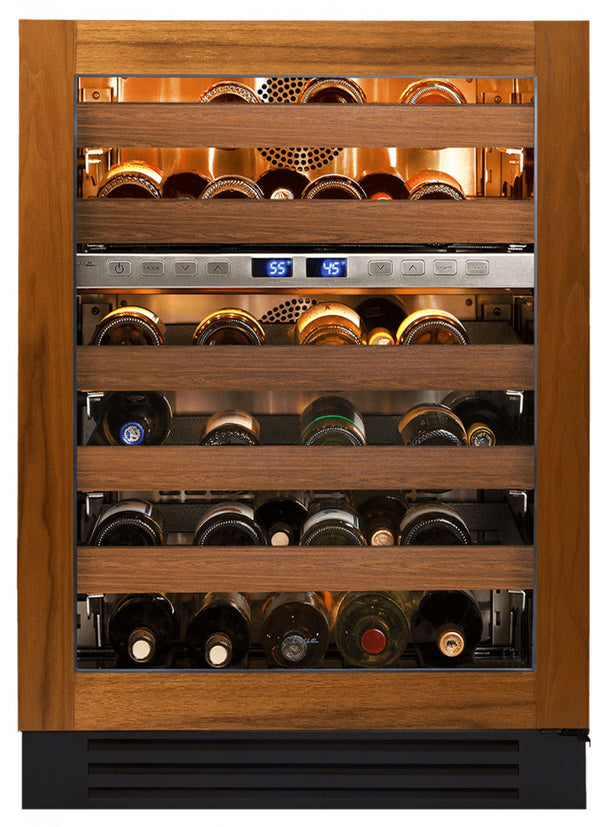

True 24 Inch Overlay Glass Right-Hinge Dual Zone Undercounter Wine Cabinet

• Environmentally friendly R600a refrigerant.
•  Industry exclusive, 300-series stainless steel interior.*
• Zero-clearance hinging allows for integrated installation.
• Patented TruLumina® LED lighting gently illuminates your product and allows you to choose from 14 different color options with the push of a button.
• Low-E, double pane, UV tinted glass.
• True Precision Control® with steel touch technology and readout provides digital accuracy.
• 2 independent zones with dual evaporators that can be adjusted from 40˚F (4.4˚C) to 65˚F (18.3˚C).
• Sabbath mode compliant.
•  Ability to connect to a home security system. • All undercounter models UL rated for outdoor use.

• Capacity (cu. ft.):  5.52 x 45 bottles

• Temperature Range - Upper Zone:  40˚F - 65˚F

• Temperature Range - Lower Zone:  40˚F - 65˚F

• Racks:  5 glide-out wine racks - 40 bottles

• Floor Cradle:  1 floor wine cradle - 5 bottles

• Sabbath Mode:  Yes

• Lock:  No

• UL Rated:  Yes

• Energy Star Rated:  No

• Voltage:  115/60/1

• Amps:  1.9

• Annual Energy Consumption (kwh):  320

• Power Cord Length (ft.):  8
• Weight: 245 Lbs.

• Width:  23 7/8 Inches

• Depth:  23 7/8 Inches

• Height:  34 1/4 Inches

• Cutout Width:  24 Inches

• Cutout Depth:  24 Inches

• Cutout Height:  34 1/2 Inches

• Standard Overlay Panel Width:  23 5/8 Inches

• Standard Overlay Panel Depth:  3/4 Inch

• Standard Overlay Panel Height:  30 1/8 Inches
