Full-Height Vertical Access for a Custom Grill Island

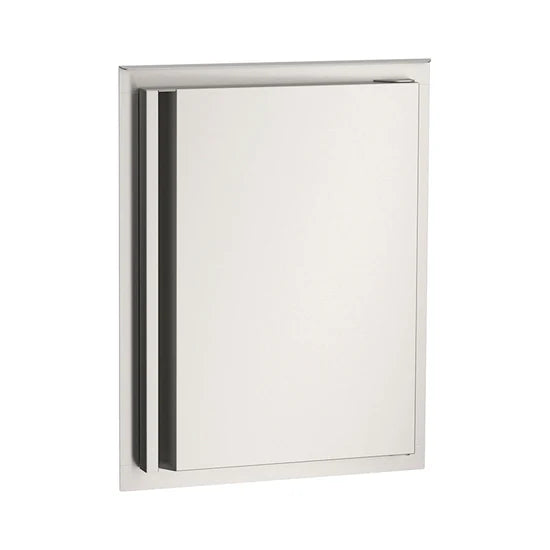

This American Outdoor Grill 24 × 17-inch vertical access door creates a generous opening for storage and utility service inside an outdoor-kitchen island. Separate left- and right-hinge variants allow the door swing to be selected around nearby appliances and cabinetry.
The current AOG door series features 304 stainless steel, double-wall construction, square edges, a formed stainless handle, and a heavy-duty magnetic latch. The outside-mount frame overlaps the finished opening for a clean installation.
Key Features
- Left- or right-hinge selection: Choose AOG17AL or AOG17AR for the required swing direction.
- Double-wall 304 stainless steel: Coordinates with current AOG grills and storage components.
- Formed handle: Provides comfortable access without a separate black slam latch.
- Magnetic closure: Holds the door closed during normal use.
- Outside mounting: The frame covers the perimeter of the island opening.
Specifications
- Models: AOG17AL left hinge; AOG17AR right hinge
- Door orientation: Vertical
- Nominal door size: 24 inches H × 17 inches W
- Required cutout: 25 inches H × 17.5 inches W
- Construction: Double-wall 304 stainless steel
- Handle: Formed stainless steel
- Closure: Heavy-duty magnetic latch
- Mounting: Outside mount
Installation note: Select the hinge direction before ordering and verify the exact finished opening. Follow the current AOG instructions for frame fastening and sealing.
