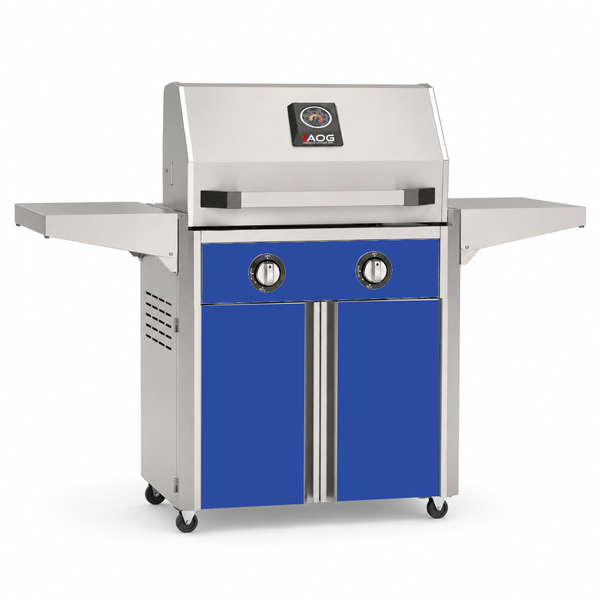

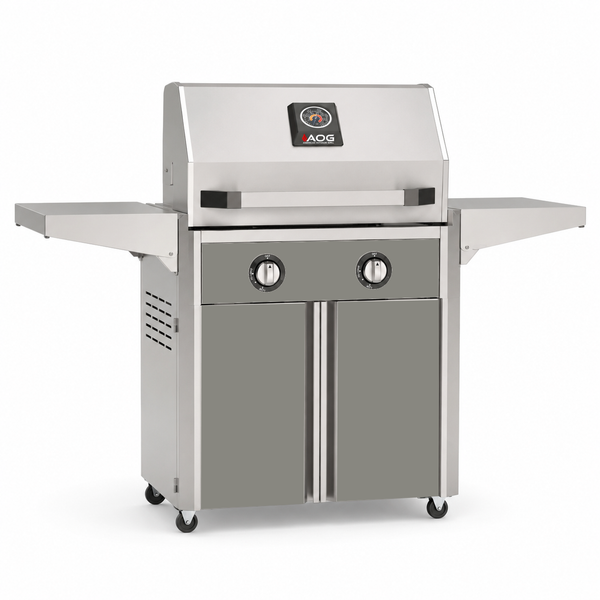

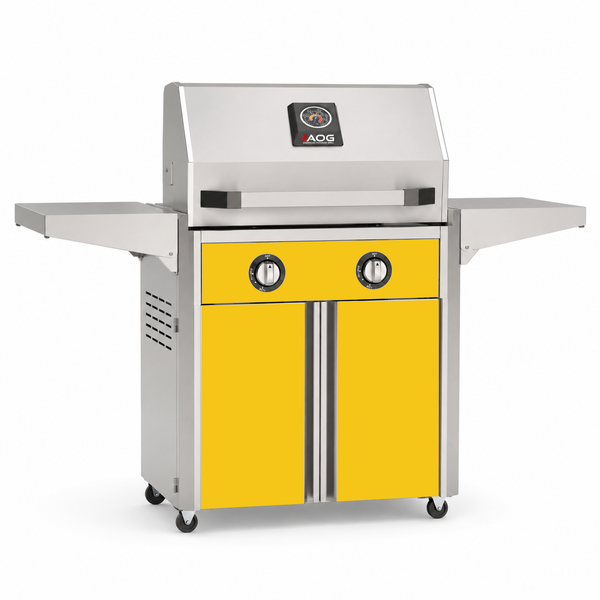

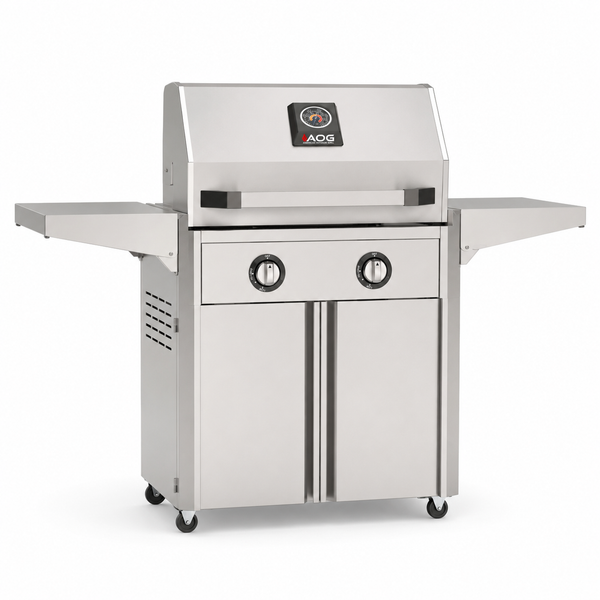

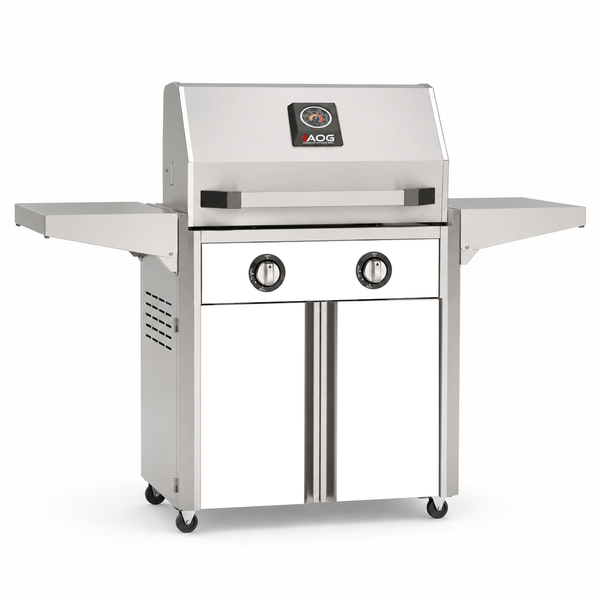

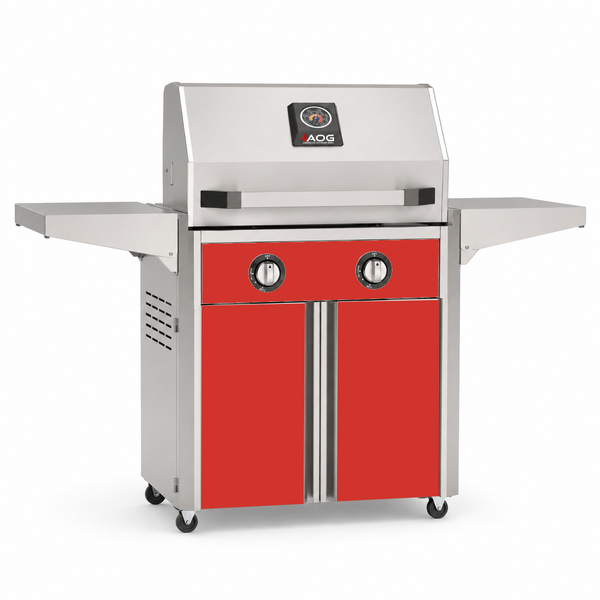

American Outdoor Grill Freestanding 24” T-Series Built-In Grill

• Premium stainless steel construction for superior durability and weather resistance.
• Converts AOG 24" built-in grill heads into portable freestanding units.
• Compatible with both AOG 24" L-Series and T-Series grills.
• Dual access doors provide enclosed storage space.
• Fold-down twin side shelves add convenient prep and serving areas.
• Integrated propane tank ring holder for secure LP tank placement.
• Locking casters allow for easy mobility and stability.
• Optional black or white accent door panels available.
• Gas connection hoses sold separately for LP and NG installations.
• Designed and manufactured in the USA.
• Diamond Sear™ stainless steel cooking grids
• Heavy-duty 304 stainless steel construction
• Rapid Light™ piezo ignition (no batteries or electricity required)
• Stainless steel vaporizer panels for even heat distribution
• Precision brass control valves
• Spring-assisted hood
• Large analog thermometer with polished bezel
• Heavy-duty warming rack included
• Optional rotisserie system with infrared backburner
• Made in the USA with premium craftsmanship

Portable Cart

• Model Number: 24CRT-25
• Product Type: Portable Grill Cart Base
• Compatibility: AOG 24" L-Series and T-Series grill heads
• Material: Stainless Steel
• Storage: Dual access doors
• Side Shelves: Twin fold-down shelves
• Tank Holder: Built-in propane tank ring
• Mobility: Locking casters
• Gas Hose Compatibility:
  • LP Regulator Hose: #5110-07 (sold separately)
  • NG Quick Disconnect Hose: #5110-03 (sold separately)
• Outdoor Use: Yes
• Country of Manufacture: USA

Built-In Grill

• Model: AOG 24" T-Series Built-In Grill (AOG24TN/AOG24TP)
• Configuration: Built-In
• Fuel Type: Natural Gas or Liquid Propane
• Primary Cooking Area: 432 sq. in. (24" x 18")
• Secondary Warming Rack Area: 116 sq. in.
• Total Cooking Area: 548 sq. in.
• Main Burners: 2 Stainless Steel Tubular Burners
• Primary Burner Output: 32,000 BTUs
• Backburner Output: 10,000 BTUs (select models)
• Cooking Grids: Diamond Sear™ 304 Stainless Steel
• Construction Material: Heavy-Duty 304 Stainless Steel
• Ignition System: Rapid Light™ / Flame Thrower Piezo Ignition
• Thermometer: Analog Temperature Gauge
• Vaporizer Panels: Stainless Steel
• Warming Rack: Included
• Rotisserie Compatible: Yes (kit available on select models)
• Temperature Range: Approximately 200°F–825°F+
• Made In: USA
• Electricity Required: No

Portable Cart

• Height: 36"
• Cart Base Width: 28-1/2"
• Width with Side Shelves Up: 58-1/8"
• Width with Side Shelves Down: 38-1/4"
• Width with One Shelf Up: 48-1/4"
• Cart Base Depth: 21-1/4"
• Maximum Overall Depth: 35-3/8"

Built-In Grill

Grill Dimensions

• Width: 27 7/8"
• Depth: 25 7/8"
• Height (Lid Closed): 22 3/8"
• Height (Lid Open): 22 1/4"

Cutout Dimensions

• Cutout Width: 24 1/2"
• Cutout Depth: 19 1/2"
• Cutout Height: 8 1/2"
• Counter Overhang Width: 28 1/2"

Cooking Surface

• Primary Grilling Area: 432 sq. in.
• Cooking Grid Size: 24" x 18"
• Total Grilling Area: 548 sq. in.
