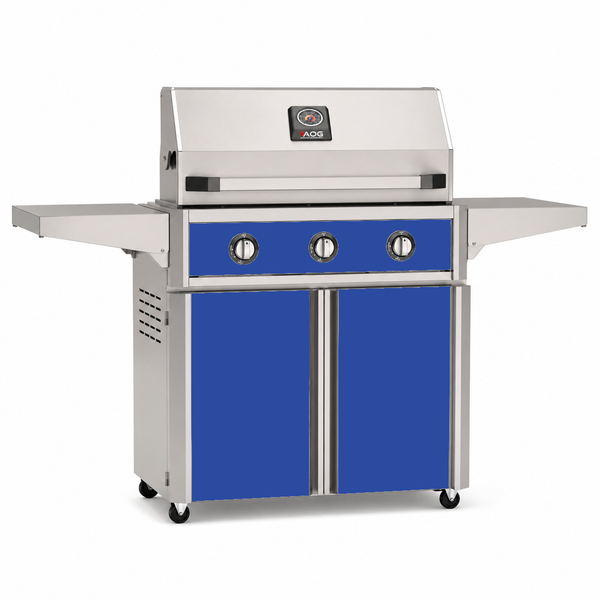

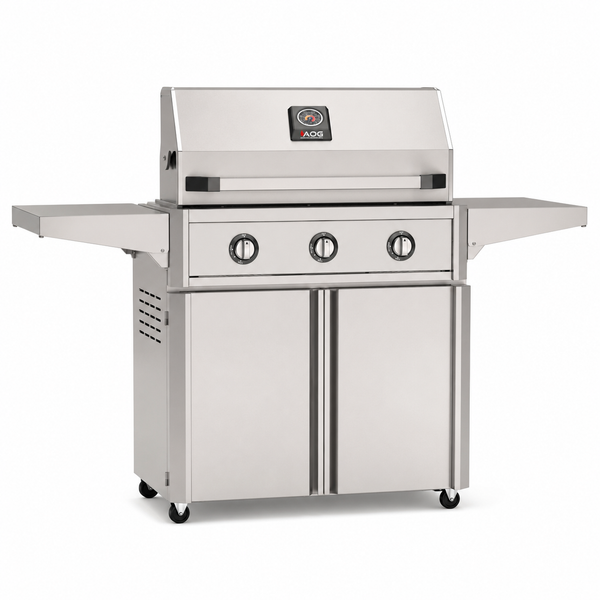

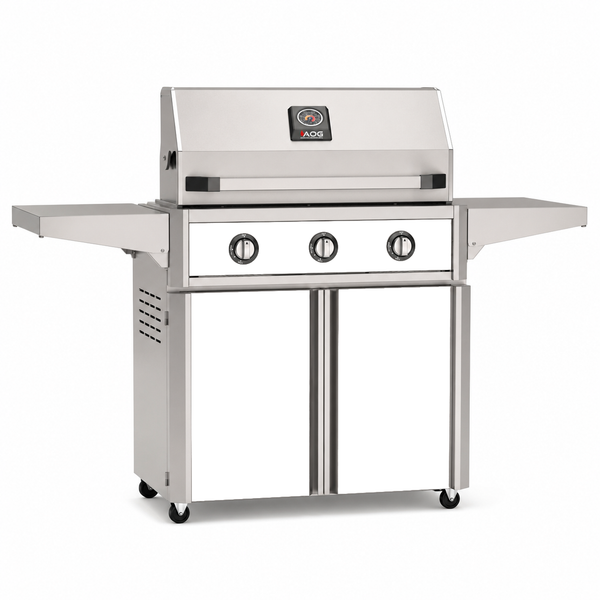

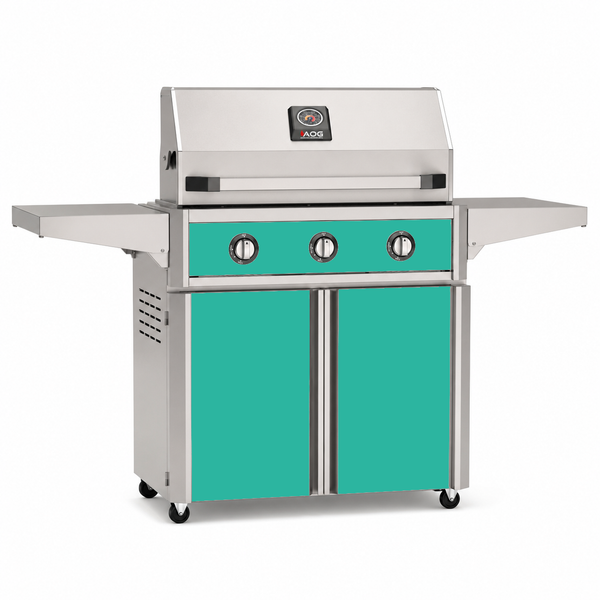

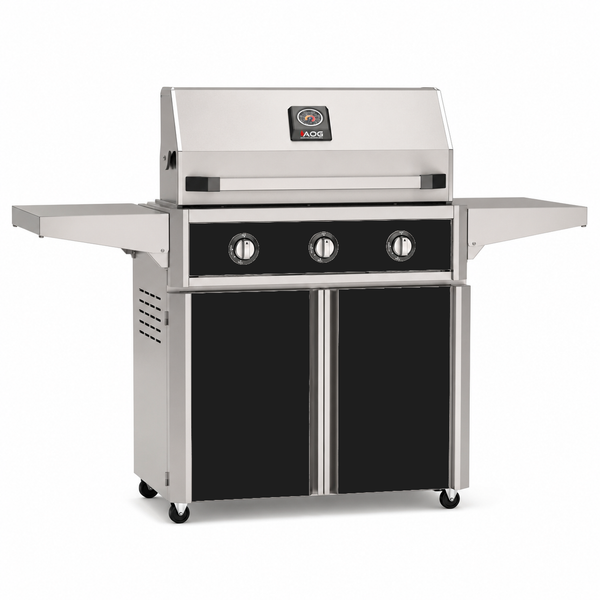

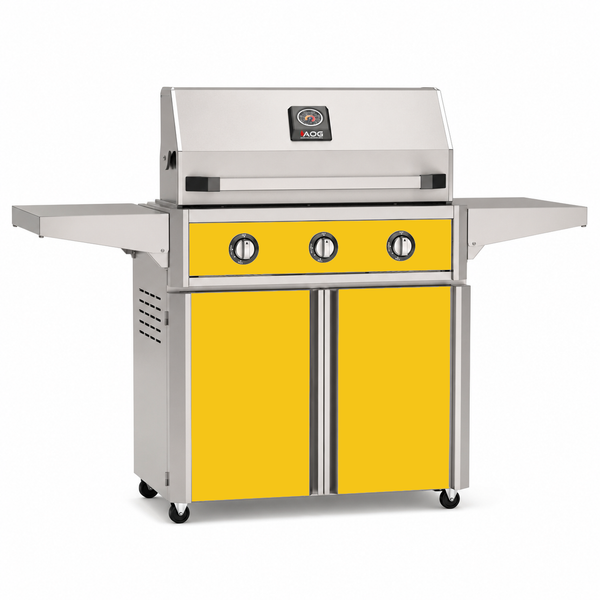

American Outdoor Grill Freestanding 36” T-Series Built-In Grill

• Diamond Sear™ 304 stainless steel cooking grids
• Three heavy-duty stainless steel tubular burners
• 50,000 BTUs of grilling power
• Flame Thrower™ piezo ignition system
• No electricity or batteries required
• Heavy-duty 304 stainless steel construction
• Stainless steel vaporizer panels for even heat distribution
• Precision brass control valves
• Spring-assisted hood for easy lifting
• Large analog thermometer with gun-metal bezel
• Heavy-duty warming rack included
• Optional infrared rotisserie backburner and rotisserie kit
• Made in the USA with premium craftsmanship and durability
• Heavy-duty stainless steel construction for durability and weather resistance.
• Converts AOG 36" built-in grills into portable freestanding units.
• Compatible with both AOG L-Series and T-Series 36" grill heads.
• Double access doors provide convenient storage space.
• Fold-down twin side shelves offer additional food prep and serving areas.
• Integrated propane tank ring holder keeps the LP tank secure.
• Fully assembled for easy setup.
• Optional black or white accent door panels available.
• Optional protective vinyl cover available.
• Made in the USA.

Portable Cart

• Model: 36CRT-25
• Product Type: Portable Grill Cart Base
• Compatibility: AOG 36" L-Series and T-Series Built-In Grills
• Material: Stainless Steel
• Storage: Dual access doors
• Side Shelves: Fold-down twin shelves
• Propane Storage: Built-in tank ring holder
• Assembly: Fully assembled
• Country of Manufacture: USA

Built-In Grill

• Model: AOG 36" T-Series Built-In Grill (AOG36T)
• Configuration: Built-In
• Fuel Type: Natural Gas or Liquid Propane
• Construction Material: Commercial-Grade 304 Stainless Steel
• Main Burners: 3 Heavy-Duty Stainless Steel Tubular Burners
• Primary Burner Output: 50,000 BTUs Total
• Burner Output: Approximately 16,600 BTUs Each
• Primary Cooking Surface: 648 sq. in.
• Cooking Grid Size: 36" × 18"
• Cooking Grids: Diamond Sear™ 304 Stainless Steel
• Ignition System: Flame Thrower™ Piezo Ignition
• Power Requirement: No Electricity or Batteries Required
• Vaporizer Panels: Stainless Steel
• Warming Rack: Heavy-Duty Stainless Steel
• Thermometer: Large Analog Temperature Gauge
• Control Valves: Precision Brass Valves
• Hood: Spring-Assisted Hood
• Rotisserie Compatible: Yes (Optional Kit Available)
• Optional Infrared Backburner: Up to 12,000 BTUs
• Made In: USA

Portable Cart

• Overall Width (Shelves Up): 70-3/8"
• Overall Width (Shelves Down): 50-1/2"
• Height: 36"
• Depth: 21-1/4"
• Base Width: 40-3/4"

Built-In Grill

Overall Grill Dimensions

• Width: 40 1/8" – 40 1/4"
• Depth: 25 7/8" – 26 1/4"
• Height (Lid Closed): 22 3/8"
• Height (Lid Open): 22 1/4"

Cutout Dimensions

• Cutout Width: 36 3/4"
• Cutout Depth: 19 1/2"
• Cutout Height: 8 1/2"
• Counter Overhang Width: 40 3/4"

Cooking Surface

• Primary Cooking Area: 648 sq. in.
• Cooking Grid Size: 36" × 18"
• Warming Rack: Included
• Total Grilling Capacity: Ideal for large family meals and entertaining groups
