Coyote Single Access Door

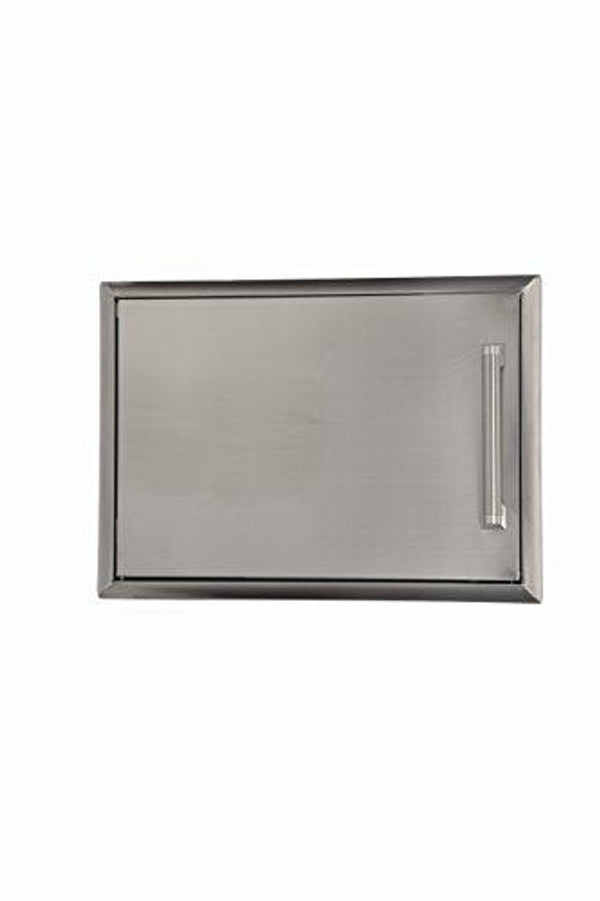

Coyote CSA Series Single Access Doors (14–24 Inch)

Available Now!

Coyote SKU: CSA1420

$319.00

14 × 20 Inch (CSA1420)
17 × 24 Inch (CSA1724)
20 × 14 Inch (CSA2014)
24 × 17 Inch (CSA2417)
Description Key Features Model & Dimension Guide Installation Notes Manufacturer Resources

Four footprints for clean, model-specific island access. Coyote CSA Series Single Access Doors create a finished opening for reaching the interior of an outdoor-kitchen island. Each previous-generation CSA model uses complete 304 stainless-steel construction, beveled trim, a single-door panel, and a professional-style handle. Select by the model's nominal height × width and verify the required cutout before fabrication.

Model-generation note: These CSA models precede Coyote's current C3-SA series. Confirm the exact model and availability before ordering; current C3-SA dimensions and features should not be assumed.

  • Built-in single access door for island service access and open storage
  • Complete 304 stainless-steel construction
  • Beveled trim for a finished built-in appearance
  • Single-door panel with a professional-style handle
  • Four height-and-width combinations for horizontal or vertical openings
Model Nominal Size (H × W) Overall (H × W × D) Required Cutout (H × W × D)
CSA1420 14 × 20 in. 16 × 22 × 3 in. 14-1/2 × 20-1/2 × 1 in.
CSA1724 17 × 24 in. 19 × 26 × 3 in. 17-1/2 × 24-1/2 × 1 in.
CSA2014 20 × 14 in. 22 × 16 × 3 in. 20-1/2 × 14-1/2 × 1 in.
CSA2417 24 × 17 in. 26 × 19 × 3 in. 24-1/2 × 17-1/2 × 1 in.

Dimensions are height × width × depth. The handle projects 1 inch beyond the exterior face. Coyote recommends having the product on site before finalizing the island opening.

  • Anchor points are located around the interior frame.
  • Anchors are not included because island construction materials vary.
  • Use a framing square during installation so the frame is not pulled out of square.
  • Verify the selected SKU, cutout dimensions, swing clearance, and island construction before fabrication.
