Coyote Single Side Burner Insulated Jacket

Coyote CJAKTC1SB Insulated Jacket for C1SB & C3SB Side Burners

Available Now!

Coyote SKU: CJAKTC1SB

$439.00

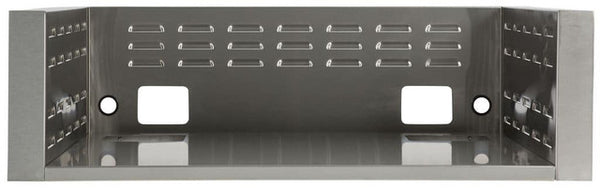

CJAKTC1SB Single Side Burner Insulated Jacket
Description Key Features Specifications Installation & Safety Manufacturer Resources

Thermal protection for combustible outdoor-kitchen construction. The Coyote CJAKTC1SB Insulated Jacket surrounds compatible built-in single side burners with a 304-grade stainless-steel barrier for approved installations near combustible island materials. It is an installation component, not a weather cover or cold-weather cooking accessory.

  • Designed for Coyote C1SB and C3SB built-in single side burners
  • 304-grade stainless-steel construction
  • Provides the corresponding heat barrier for qualifying combustible-island installations
  • Hangs from the countertop without support underneath
  • Model-specific dimensions support a precise built-in fit
  • Model / SKU: CJAKTC1SB
  • Configuration: Built-in insulated jacket
  • Material: 304-grade stainless steel
  • Compatible models: C1SBLP, C1SBNG, C3SBLP, and C3SBNG
  • Overall dimensions (H × W × D): 11 × 15-1/4 × 16-3/4 inches
  • Required jacket cutout (H × W × D): 11 × 13-3/4 × 16 inches
  • EAN: 653341981202
  • Included: One insulated jacket; side burner sold separately

Use the corresponding Coyote insulated jacket when combustible material is within the manufacturer-specified area of the appliance frame. The jacket does not replace required ventilation, clearances, gas connections, or other installation procedures.

  • Do not box in or support the jacket from below.
  • Do not block the jacket's vents or protected rear openings.
  • Verify cutout dimensions, countertop support, island ventilation, clearances, fuel supply, and local-code requirements before construction.
  • Professional installation is recommended.
