Coyote Ventilation Hood

Coyote C1HOOD 30-Inch-Deep Outdoor Chimney Hood — 36, 42 & 48 Inch

Available Now!

Coyote SKU: C1HOOD36

$1,899.00

C1HOOD36 — 36 in W × 30 in D
C1HOOD42 — 42 in W × 30 in D
C1HOOD48 — 48 in W × 30 in D
Description Model Selection Key Features Included & Required Components Installation Requirements Manufacturer Resources

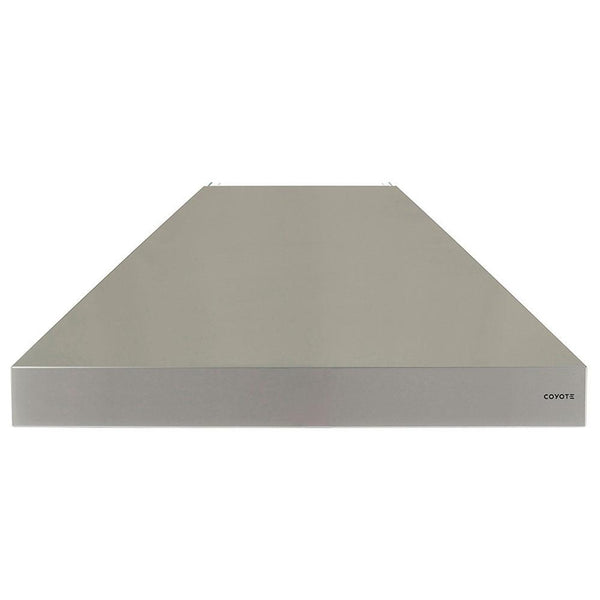

Capture smoke and grease above a covered outdoor cooking area. The Coyote C1HOOD is a 30-inch-deep wall-mount chimney hood offered in 36-, 42-, and 48-inch widths. It uses stainless-steel construction, removable baffle filters, a grease rail, variable-speed controls, Heat Sentry response, and integrated task lighting.

Blower required: C1BLOW1200 is mandatory for operation and is sold separately. Ductwork, roof or wall cap, and decorative C1FLUE extension are also sold separately.

  • C1HOOD36: 15 H × 36 W × 30 D inches; for grills up to 30 inches wide
  • C1HOOD42: 15 H × 42 W × 30 D inches; for grills up to 36 inches wide
  • C1HOOD48: 15 H × 48 W × 30 D inches; for grills up to 42 inches wide
  • Covered-outdoor wall-mount chimney-hood format
  • Removable dishwasher-safe baffle filters and grease rail
  • Variable-speed blower control and Heat Sentry response
  • Integrated task lighting
  • 10-inch round duct connection
  • Included: Hood, mounting bracket, 10-inch round adapter, manual, and parts bag
  • Required; sold separately: C1BLOW1200 internal dual-blower assembly
  • Project-supplied: 10-inch metal duct, exterior roof/wall cap, electrical connection, and installation hardware appropriate to the structure
  • Install under a protective roof in a covered outdoor domestic-cooking area; protect from weather.
  • Maintain at least 36 inches between the cooking surface and bottom of the hood.
  • Exhaust outdoors through short, straight 10-inch round metal ductwork; do not terminate in an attic or enclosed space.
  • The 120VAC system requires a qualified, grounded hardwired connection and GFCI protection under applicable codes.
  • Not intended for use over charcoal grills. Verify hood width against the exact cooking appliance before ordering.

Lighting note: Coyote's current web and PDF resources conflict on LED versus halogen lamps. This listing uses the neutral term “integrated task lighting”; verify the physical unit and rating label before specifying replacement lamps.
