SKU: Model 90

$4,675.00

Description Features Specifications Dimensions Manuals

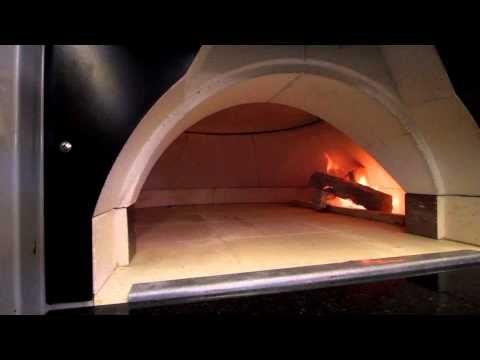

A pizza oven enables you to cook everything from pizzas to steak, and the Earthstone Model 90 Modular Wood Fire Pizza Oven is a 43.5" W x 53.5" D x 22" H model that weighs 1,200 pounds. With this design, you can bake three or four 8" to 10" pizzas or up to six large steaks on the 17" W x 20" D grilling rack. Equipped with a 4" thick pizza oven wall with refractory elements and a 4.5" thick wood pizza oven floor (12" W x 12" D floor tiles), our Earthstone Ovens are designed to provide you with a top of the line cooking experience – cook meals faster than ever before! Founded by Maurice Sabbagh Yotnegparian, the manufacturer constructs its models proudly in America and offers a five-year limited warranty. Its 35" in diameter wood pizza oven cooking space features 12" W x 12" D industrial bakers hearth tiles, which have been cold pressed at 8,500 psi and ceramitized at 2,800˚F, further aiding in the superior heat retention within these wood burning pizza ovens. The structure is comprised of a primary hood, two dome pieces, three side wall pieces and a front entrance piece. In addition, you will receive the following with your outdoor pizza oven: black steel entrance plate, cast aluminum door with Teflon handles and a dial thermometer (0-1,000˚F range).

  • Floor Tiles (18) – 1 – 12″ X 6″, 11 – 12″ X 12″ , 2 – Triangular 12″ X 12″ x 16 1/2″ 2 – Four Sided -12″ X 5″ X12″x 1 1/2″, 2 – Four Sided -10″ X 12″ X 5″ X 13″
  • Oven Pieces: Primary Hood, Dome Pieces (2), Side Wall Pieces (3), Front Entrance Piece
  • Steel Entrance Plate (black)
  • Thick Cast Aluminum Door With Teflon Handles
  • Dial Temperature Gauge (Range 0-1000F)
  • Refractory Cement (22 lb / 10 kg Bag)
  • Galvanized Metal Flashing
  • High Heat Silicone Tube
  • Plywood Spacers
  • Refractory Cement (container)
  • Package of Fire Starters
  • Stainless Steel Pizza Peel
  • 4″ x16″ Screened Vent
  • Installation Instructions and Video/DVD

Food Capacities:

  • 8″ Pizzas: 3-4
  • 12″ Pizzas: 2-3
  • Eight medium size steaks or six large steaks on 17″ x 20″ grilling rack



Ovens come standard with:

  • 4-inch thick advanced refractory elements with superior mass for high thermal resistance.
  • 12″X12″ industrial bakers hearth tiles, “Pierre de Boulanger”.
  • Includes: Mechanical temperature gauge, Cast aluminum door, Metal entrance plate.
  • Oven heats up quickly for low fuel consumption.
  • Easy to install — Comes with complete installation video and booklet, operation and maintenance instructions.
  • Hood designed to remove smoke & odors efficiently.
  • Five year limited warranty.

Concrete block assembly:
56″ x 48″ x 80″ (Wt 7,500 lb)
View Diagram

Steel frame assembly:
48″ x 44″ x 80″ (Wt 2,750 lb)
View Diagram

Shipping Weight: 1,200 lbs.

Interior Cooking Area: 35″ in diameter.

Earth Stone Specs

Earth Stone Installation Guidelines

Earth Stone Venting Applications
