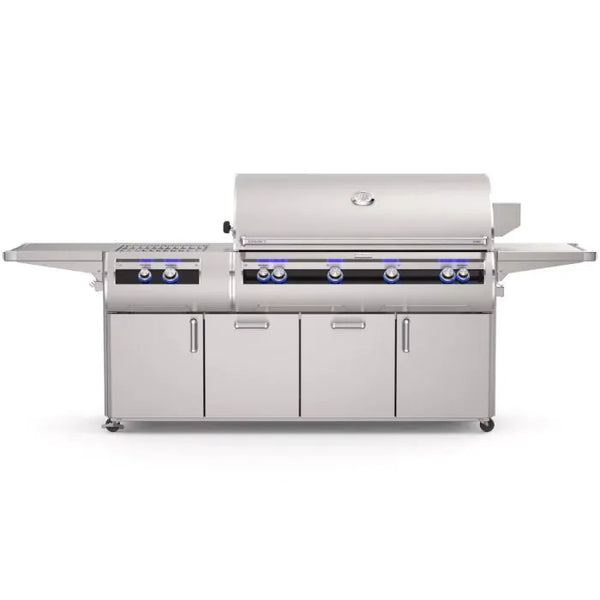

Fire Magic Echelon E1060s Portable Grills with Analog Thermometer & Power Burner

Digital Thermometer Option
Illuminated chromed digital thermometer with meat probe, timer, and alarm settings for precise grilling.

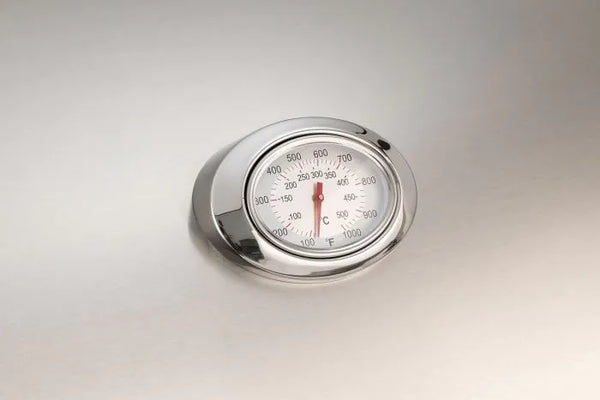

Analog Thermometer Option
Analog thermometer with polished stainless steel bezel in hood measures up to 1000 °F.

Power Burner
The Echelon Power Burner is the largest, most powerful side cooker available and provides the high heat that's perfect for wok cooking or frying a turkey! Offering a range of 3,000 to 60,000 BTUs. Removable stainless steel cover included.

Flush Mounted Single Side Burner
Features of this single side burner include a 15,000 BTUs burner and a precise flame control valve. Includes stainless steel grid.

Diamond Sear Cooking Grids
All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.

Flavor Grids
16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.

Heat Zone Separators
Heat zone separators between each burner, flavor grid, and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.

Hot Surface Ignition
Hot surface electronic ignition provides reliable lighting for every meal. Requires 120V AC power supply.

Charcoal/Smoker Basket
Included with all Echelon Diamond grills at no additional charge. Great tool for charcoal grilling and smoking.

Rounded Oven Hood
Double well, seamless oven hood with featherlight easy lift, rounded for best convection cooking.

Contoured Face with Back-Lit Knobs
Smooth, seamless lines with polished highlights that feature fully illuminated, comfort touch safety control knobs (flame turns red when on).

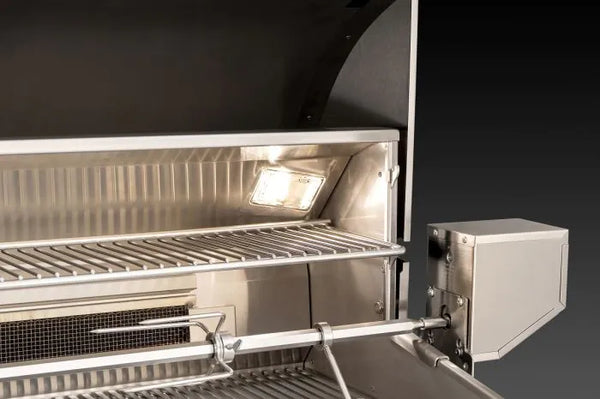

Halogen Interior Lights
Angled interior halogen lights make evening grilling a breeze.

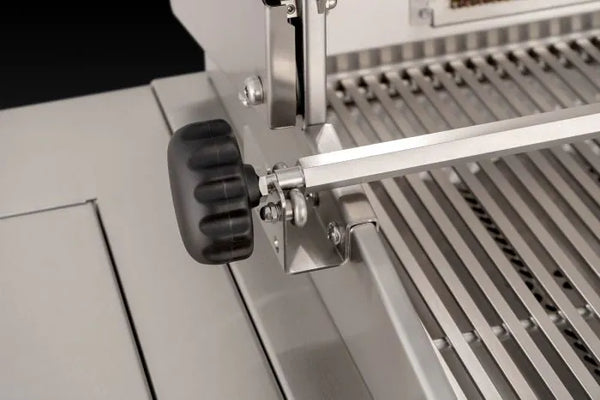

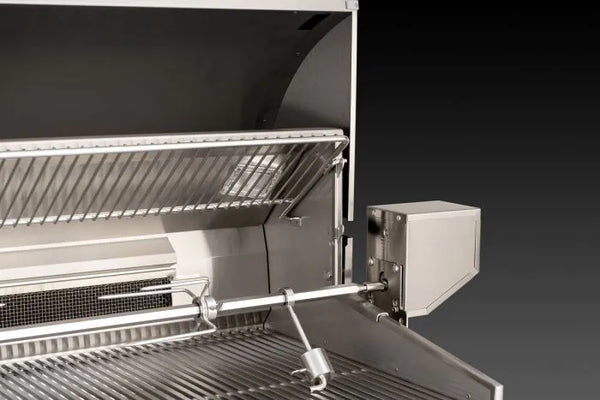

Quantum Backburner
Recessed Quantum backburner made of stainless steel foam uses less BTUs to generate efficient high heat for rotisserie cooking. Polished stainless steel cover included for protection.

Optional Magic Window
Optional Magic View Window available on all Echelon Diamond grills. For Echelon "A" Series Grills purchased with a Magic View Window, a Grill Top Thermometer is provided at no extra cost.

Optional Infrared Burner
Upgrade to an infrared sear burner in the left hand position at no charge on all Echelon Diamond grills.

Optional All Infrared Burners
Upgrade to an all infrared sear burner model on all Echelon Diamond grills for an additional cost.

Diamond Sear Cooking Grids
All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.

Extended Side Shelves
Capped with matching polished handles, the expansive side shelves offer the most preparation space of any portable grill. When not in use, they fold down neatly to save space.

• Made in USA

• Configuration: Freestanding
• Weight: 820.000000
• Fuel Type: Natural Gas
• Grill Size: 48"
• Class: Luxury
• Model: Echelon
• Exterior Material: Stainless Steel
• Exterior Stainless Grade: 304 Stainless Steel
• Main Grilling Area (Sq Inches): 1,056
• Secondary Grilling Area (Sq Inches): 384
• Total Grilling Area (Sq Inches): 1440
• Burger Count: 40
• Color: Stainless Steel
• Temperature Gauge: Analog
• Spring Assisted Hood: Yes
• Side Shelves: Yes
• Side Shelf Material: Stainless Steel
• On Wheels: Yes
• Cart Assembly: Assembled
• Wifi/Bluetooth Enabled: None
• Grilling Surface BTUs: 112,000
• Main Burners: 4
• Main Burner Material: 304-Stainless Steel
• Infrared Main Burner: Not Available
• Flame Tamer Material: Stainless Steel
• Rotisserie Kit: Included
• Includes Smoker Box: Yes
• Total BTUs: 194,000
• Side Burner BTUs: 60,000
• Rear Rotisserie Burner BTUs: 22,000
• Heat Zone Separators: Yes
• Ignition Type: Hot Surface
• Flash Tubes: Yes
• Lights: Yes
• Grill Lights: Internal / External
• Side Burner Type: Power Burner
• Commercial-Grade Multi-User: No
• Magic View Window Option: No
• Primary Cooking Surface 48" x 22" (1,056 sq. in.)
• Warming Rack Surface 48" x 8" (384 sq. in.)
• Main Burners 112,000 BTUs
• Backburners 22,000 BTUs (11,000 x 2)

• Width: 117"
• Depth: 30.5"
• Height: 52"
