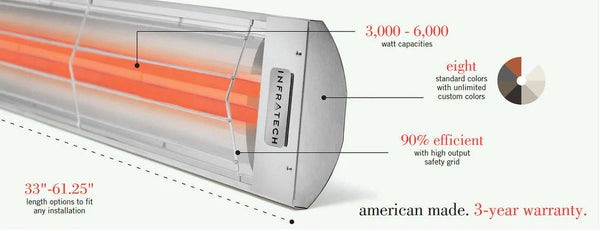

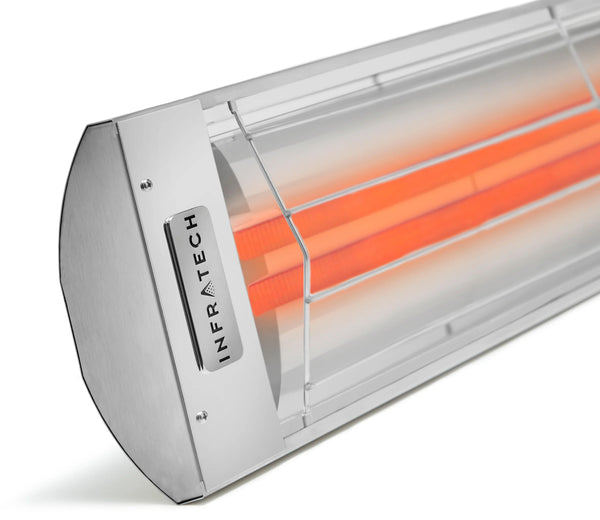

Infratech 5200 Watt Dual Element 48 Inch Marine Grade C-Series Electric Heater
Infratech 5200 Watt Dual Element 48 Inch Marine Grade C-Series Electric Heater

Infratech 5200 Watt Dual Element 48 Inch Marine Grade C-Series Electric Heater

Infratech SKU: CD5224MG-240

$1,119.00

240 V
208 V
277 V
480 V
Description Features Specifications Dimensions Manuals

Harness the power of the Infratech 5200 Watt Dual Element 48 Inch Marine Grade C-Series Electric Heater! With its marine grade durability and efficient dual element design, this heater will keep you warm in any outdoor setting. Enjoy comfortable and reliable warmth, no matter the weather!

  • The most common mounting height is 10’. The New 48”, 5200-Watt heater covers a larger area (10’ X 10’) with even more infrared heat.
  • In some installations, the 61” is too long, and 39” is too short.
  • A 48” heater can solve certain clearance constraints.
  • This heater optimizes the watt/density formula for maximum comfort.
  • Replacement Element
  • Heating Area: 100 Sq. Ft.
  • Fuel Source: Electric
  • Infrared Heat Technology: Medium Wave
  • Standard Wattage: 5200 Watts
  • Finish: Stainless Steel
  • Installation Options: Wall Ceiling
  • Amperage: 21.67 amps
  • Material: Steel

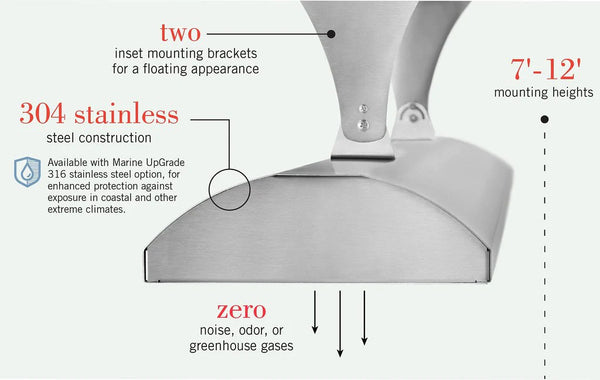

  • Mounting Options: Recessed, Wall Mount, Post Mount
  • IPX Rating: IPX4
  • Application: Commercial/Residential
  • Mounting Brackets Included: Yes
  • Length: 48 Inches
  • Height: 2 1/2 Inches
  • Depth/Extension: 8 19/100 Inches
  • Weight: 16 lbs.

Infratech Comfort Heat Catalog

Infratech Motif Collection Brochure

Infratech Manual
