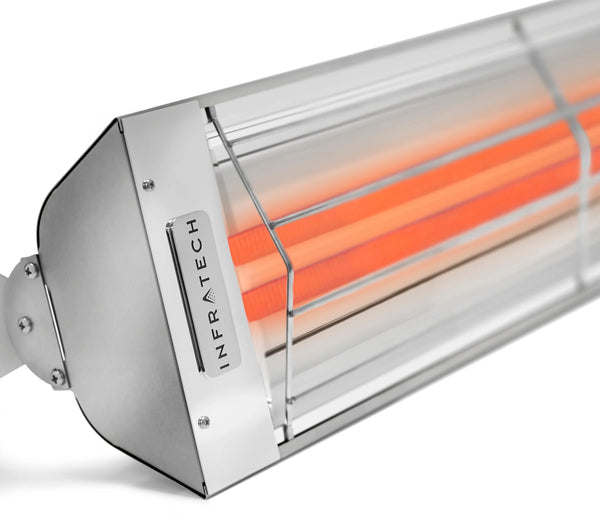

Infratech 5200 Watt Dual Element 48 Inch Marine Grade W-Series Electric Heater
Infratech 5200 Watt Dual Element 48 Inch Marine Grade W-Series Electric Heater

Infratech 5200 Watt Dual Element 48 Inch Marine Grade W-Series Electric Heater

Infratech SKU: WD5224MG-240

$1,085.00

240 V
208 V
277 V
480 V
Description Features Specifications Dimensions Manuals

As an industry expert, the 48 Inch Marine Grade W-Series Electric Heater is a powerful addition to any outdoor space. With dual elements and 5200 watts of power, this heater offers efficient and effective heating. Its marine grade construction ensures durability in harsh environments. Enjoy your outdoor spaces all year round with this high-quality heater.

  • The most common mounting height is 10’. The New 48”, 5200-Watt heater covers a larger area (10’ X 10’) with even more infrared heat.
  • Replacement Element
  • In some installations, the 61” is too long, and 39” is too short.
  • A 48” heater can solve certain clearance constraints.
  • This heater optimizes the watt/density formula for maximum comfort.
  • Heating Area: 100 Sq. Ft.
  • Fuel Source: Electric
  • Infrared Heat Technology: Medium Wave
  • Standard Wattage: 5200 Watts
  • Finish: Stainless Steel
  • Installation Options: Wall Ceiling
  • Voltage Rating: 208 V, 240 V, 480 V, 277 V
  • Amperage: 10.83 amps, 18.77 amps, 25 amps, 21.67 amps
  • Material: Steel
  • Can be Recessed: Yes
  • Mounting Options: Post Mount, Recessed, Wall Mount
  • IPX Rating: IPX4
  • Application: Commercial/Residential
  • Warranty: 3 Years
  • Mounting Brackets Included: Yes
  • Length: 48 Inches
  • Height: 3 Inches
  • Depth/Extension: 8 19/100 Inches
  • Weight: 16 lbs

Infratech Spec Sheet

Infratech W and WD-Series Installation Use and Care Manual

Infratech Motif Collection Brochure

Infratech Manual
