Infratech Single On/Off Switch

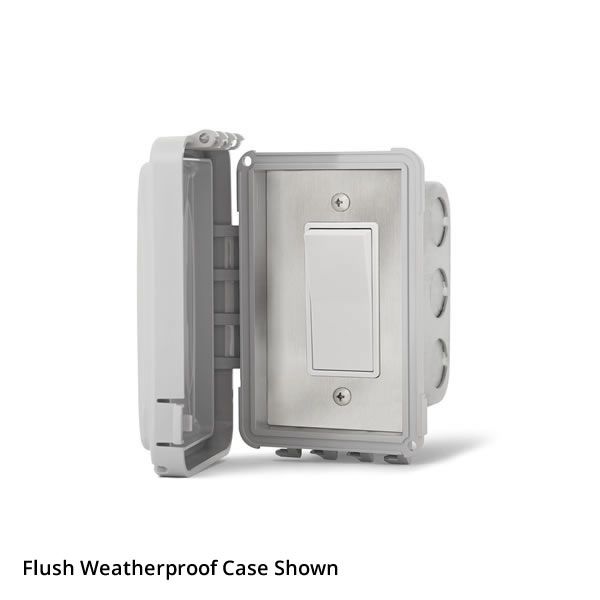

Infratech Single On/Off Switch with Waterproof Cover

SKU: IN144410

$103.00

Description Features Specifications Dimensions Manuals

The Infratech Single ON/Off Switch can be configured to fit the needs of your space. This control system comes with one switch that controls your single element patio heaters On/Off functions making it extremely user friendly. It comes with a waterproof cover so it can be installed in any unprotected area. Its on/off functions make for a very simple user experience. It is designed to be installed in your wall for a beautifully modern look.

  • Multiple configurations available
  • extremely user friendly
  • works with any Infratech single element heater
  • Gang Box: 4" h x 2 1/8" w x 1 7/8" d
  • SS Plate: 4 7/8" h x 3 1/8" w
  • Range: 120/277 VAC
  • Recommended not to exceed:
  • 208/220 VAC = 3000 Watts Max per Switch
  • 240/277 VAC = 4000 Watt Max per Switch
  • 20 Amps Max
  • Made in the USA
  • 3 Year Warranty
  • Standard Wattage: 4000 Watts
  • Finish: Stainless Steel
  • Voltage Rating: 277 V
  • Length: 4"
  • Width/Diameter (in): 2.13"
  • Height: 4"
