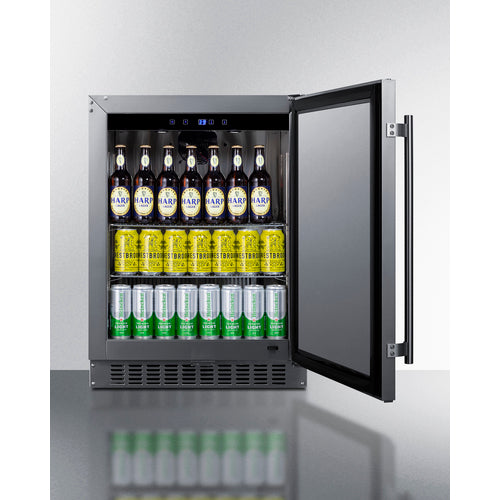

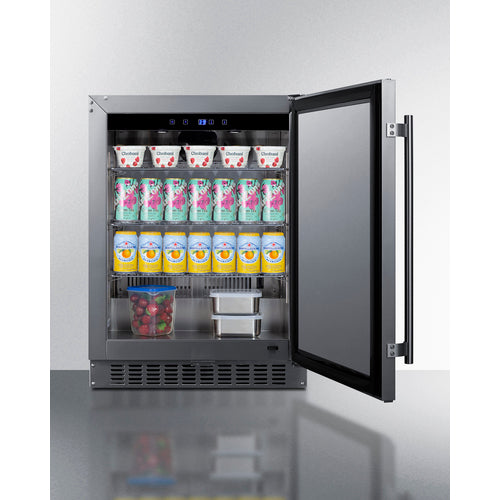

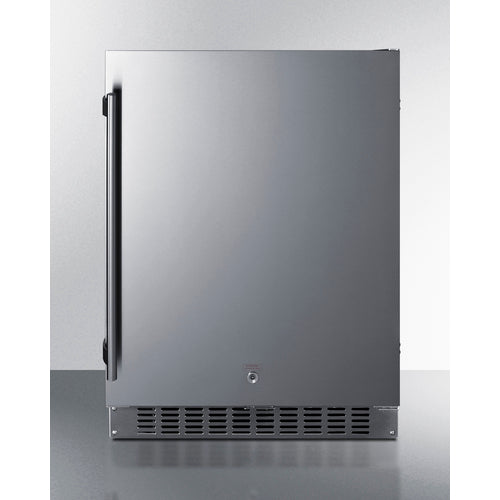

Summit 24 Inch Refrigerator ADA with Solid Door

• 24" wide all-refrigerator
  3.1 cu.ft. interior for residential or commercial cold storage

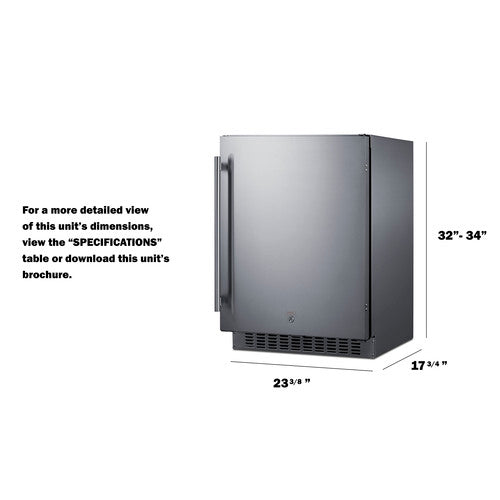

• Less than 18" deep
  Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
• ADA compliant design
  32" height allows easy installation under lower ADA compliant counters
• Adjustable height
  Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
• Built-in capable
  Front-breathing design lets you make the best use of space by installing your appliance under the counter
• Stainless steel interior
  Walls and floor are constructed from stainless steel for added strength and easy cleanup
• Stainless steel exterior
  Complete stainless steel exterior for true luxury under the counter
• Factory installed lock
  Keyed lock for a secure interior (2 keys included)

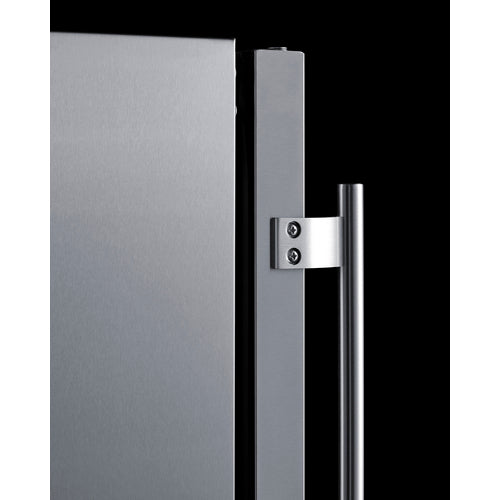

• Professional handle
  Includes a full-length pro handle in chrome
• Frost-free operation
  No-frost operation for minimum user maintenance
• Internal fan
  Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
• Digital thermostat
  Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
• Dimmable LED lighting
  Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

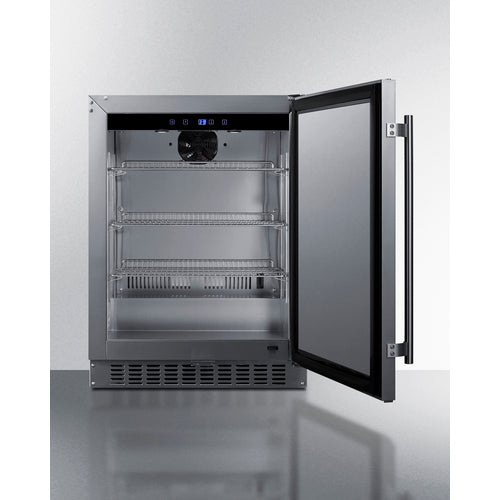

• Cantilevered shelving
  Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
• Open door alarm
  Audible alarm will sound if the door is left open longer than one minute
• High temperature alarm
  High temperature alarm sounds if the unit's interior goes out of the recommended range
• Sabbath mode setting
  Optional setting lets you disable the lighting and alarm for up to 48 hours
• Temperature Memory Function
  Unit will retain its last settings when power is restored in the event of power loss
• Integrated hinge
  Flat hinge ensures no added height is needed when installing under a counter
• Right angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Sealed back
  Space-saving design with no exposed coils that offers easier cleanability
• Reversible door
  User-reversible door swing for added flexibility
• Commercially approved
  ETL-S listed to NSF-7 Standards for use in commercial establishments
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC Free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 3.1 cu.ft. (88 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 215.0 kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 79.0 lbs. (36 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: RHD
• Reversible: Yes
• Height Adjustable: Yes
• Shelf Type: Chrome
• Shelf Quantity: 3
• Adjustable Shelves: Yes
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.38 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs Quantity: 4
• Interior Light: Yes
• Temperature Range: 36 to 43ºF
• Sound Level: 33.1 dB

• Interior Height: 24 1/4 Inches
• Interior Width: 19 1/2 Inches
• Interior Depth: 12 1/4 Inches
• Compressor Step Height: 3 3/4 Inches
• Compressor Step Width: 19 1/2 Inches
• Compressor Step Depth: 4 1/4 Inches
