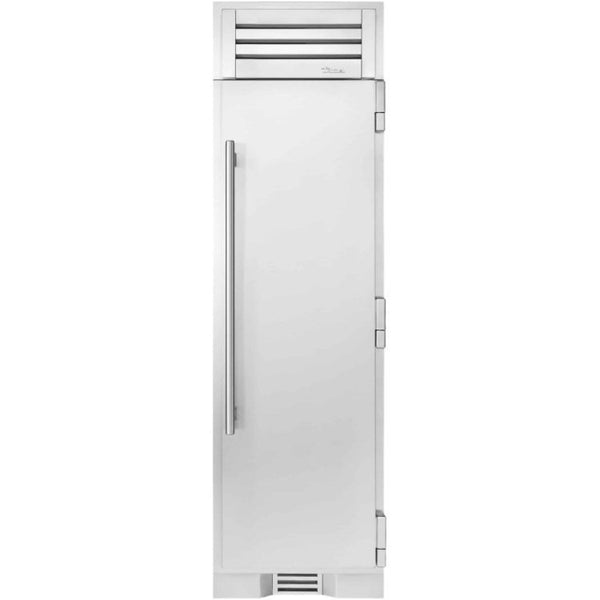

True TR-24FRZ 24-Inch Freezer Column with Ice Maker and Solid Door

True TR-24FRZ 24-Inch Freezer Column with Ice Maker and Solid Door

Add dedicated frozen storage and integrated ice production to a full-height kitchen layout. This solid-door True freezer column is offered in right- and left-hinge configurations; confirm the opening, utility and installation requirements below before ordering.

Features

• Environmentally friendly R600a refrigerant.
• Balanced, forced-air refrigeration system enables proper airflow and even temperature throughout to keep food fresh.
• Industry exclusive, 300-series stainless steel interior and exterior.
• All stainless steel, beautifully crafted proud hinges pass True’s rigorous one million door opening test.
• Beautifully crafted solid stainless steel door with 120˚ sta-yopen feature and ergonomically designed, robust, tubular handle.
• Built-in Ice Maker produces up to 3lbs./day of prism shaped ice with 5 lbs. storage capacity.
• Ramp-up, showcase interior LED lighting provides amazing illumination throughout.
• Intuitive True Precision® Control and readout provides digital accuracy and easy operation.
• Temperature as low as -4˚F.

Specifications

• Temperature Range: -4˚F – 4˚F
• Flow Rate (gpm/lpm): 0.5 / 1.89
• Operating Pressure psi (kPa): 30 (207) – 100 (689)
• Incoming Water Temperature: 33 – 100˚F (0.6 – 38˚C)
• Weight (lbs.): 460
• Voltage: 115/60/1
• Amps: 2.9
• Annual Energy Consumption (kwh): 458
• Power Cord Length (ft.): 10
• Energy Star Rated: Yes

Dimensions

• Width: 24 Inches

• Depth: 24 Inches

• Height: 84 Inches

Cutout Dimensions ( W x H x D)

• Flush Opening: 24 ¼ Inches x 84 ¼ Inches x 26 Inches

• Standard Opening: 23 ½ Inches x 83 ¾ Inches x 24 Inches

Capacity (cu. ft.): 12.4
