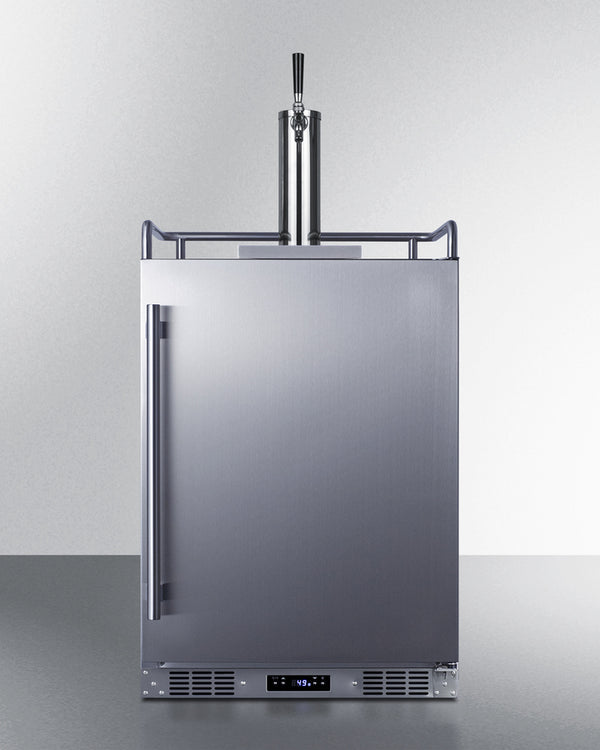

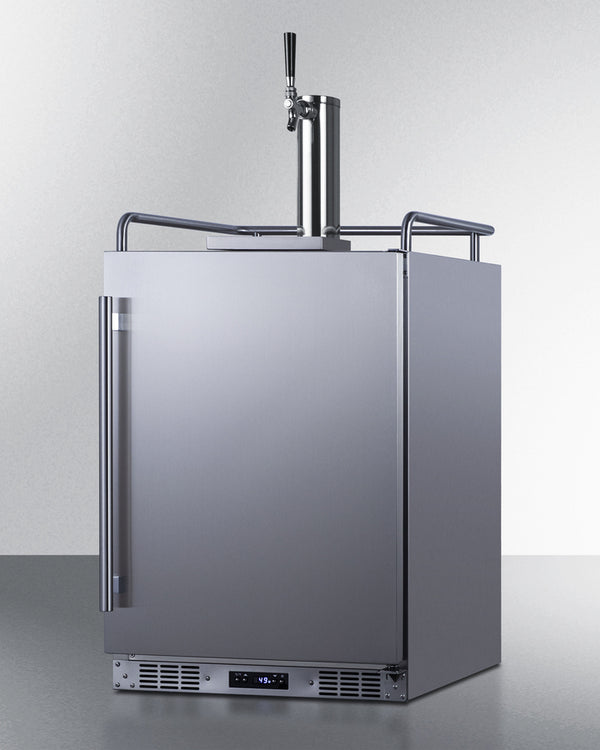

Summit 24 Inch Outdoor Kegerator with Solid Door

• Large Capacity Kegerator
  5.6 cu.ft. interior can accept a full half barrel, quarter keg, or up to three sixth barrels or Cornelius style kegs.

• Weatherproof Design
  Solid 304 grade stainless steel construction allows safe placement outdoors.

• Built-in Capable
  Front-breathing design allows fully recessed installation under counters.

• Complete Tap Kit
  Includes 5 lb. CO₂ tank, regulator, draft arm, Sankey American tap, and connection hardware.

• Automatic Defrost
  Reduces user maintenance with auto defrost operation.

• Digital Thermostat
  Electronic controls ensure easy temperature management, with external readout in Celsius or Fahrenheit.

• Tap Cool System
  Interior tube extends cold air flow into the draft tower, keeping tapped beer cold.

• Stainless Steel Floor Cover
  Protects the interior floor when loading kegs.

• Top Guard Rail (Ships Unassembled)
  Attractive chrome guard rail helps reduce spills and neatens service.

• Stainless Steel Drip Tray
  Removable two-piece drip tray catches spills for easier cleanup.

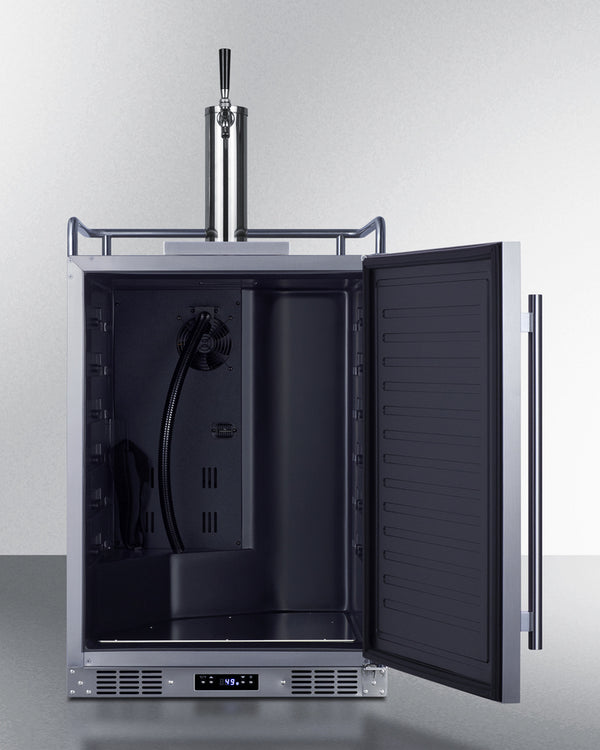

• Adjustable Shelves
  Includes 2 chrome shelves with six placement options, allowing use as a beverage refrigerator.

• Memory IC Function
  Recovers last settings in case of power outage.

• Reversible Door
  User-reversible door swing for added flexibility.

• Casters Included (Ship Unassembled)
  Four casters (two locking) provide easy portability.

• Pro Style Handle
  Stainless steel handle adds a professional touch.

• Fully Finished Stainless Steel Cabinet
  Allows the dispenser to be used freestanding.

• Sealed Back
  Space-saving design with easier cleanability.

• 100% CFC Free
  Environmentally friendly design without ozone-damaging chemicals.

• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint.

• Capacity: 5.6 cu.ft. (159 L)
• Defrost Type: Automatic
• Door Material: Stainless Steel
• Cabinet Material: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation Certification: ETL-S
• Energy Usage: 305.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 120.0 lbs. (54 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101083926
• Door Swing: RHD (Right Hand Door)
• Reversible Door: Yes
• Tap Kit Included: Yes
• Height with Tap: 51.5" (131 cm)
• Number of Taps: 1
• Adjustable Shelves: Yes
• Shelf Type: Chrome
• Shelf Quantity: 2
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.06 oz.
• High Side Pressure: 150.0 PSI
• Low Side Pressure: 50.0 PSI
• Interior Height: 26.75" (68 cm)
• Interior Width: 20.0" (51 cm)
• Interior Depth: 19.0" (48 cm)
• Leveling Legs Quantity: 4
• Wheel Quantity (Casters): 4
• Temperature Range: 34°F to 68°F (1°C to 20°C)
• Sound Level: 34.0 dB

• Nominal Height: 34 Inches
• Height of Cabinet: 33 5/8 Inches
• Nominal Width: 24 Inches
• Width: 23 3/4 Inches
• Nominal Depth: 24 Inches
• Depth: 24 Inches
• Depth with Handle: 26 1/4 Inches
• Depth with Door at 90°: 46 3/4 Inches
