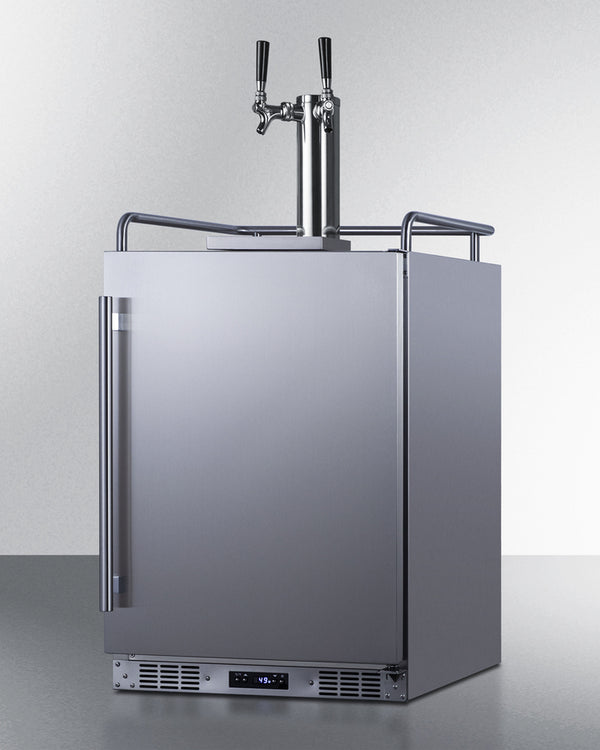

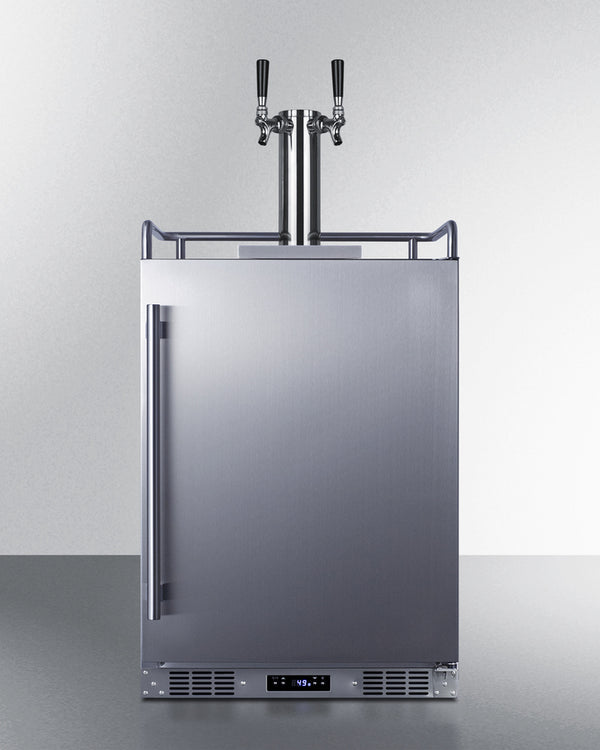

Summit 24 Inch Outdoor Rated Kegerator with Solid Door

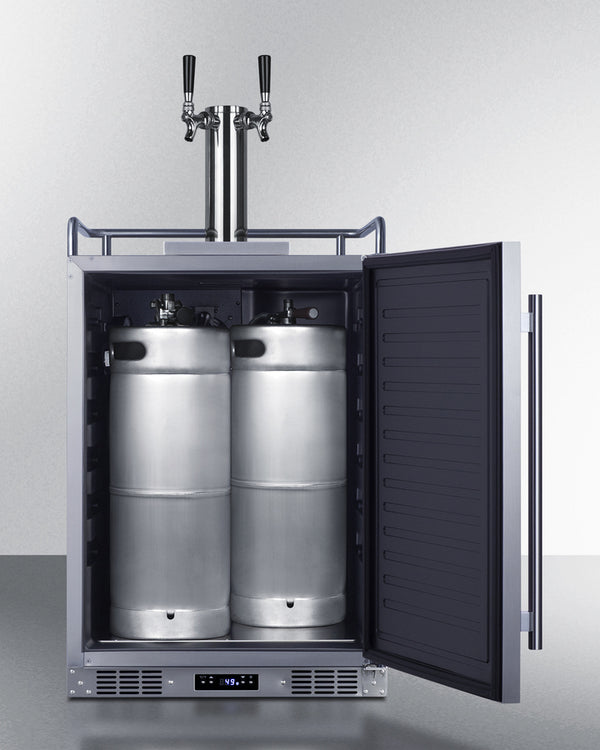

• Large capacity kegerator: 5.6 cu.ft. interior can accept a full half barrel or quarter keg, or up to three sixth barrels or Cornelius style kegs

• Weatherproof design: Solid 304 grade stainless steel construction allows placement outdoors

• Built-in capable: Front-breathing design allows fully recessed installation under counters

• Complete tap kit: Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and connection hardware

• Dual tap system: Twin draft tower allows you to serve from two 1/6 kegs

• Automatic defrost: Reduced user maintenance with auto defrost operation

• Digital thermostat: Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

• Tap cool system: Interior tube extends cold air flow into draft tower, keeping freshly tapped beer cold

• Stainless steel floor cover: Protects the floor when loading kegs

• Top guard rail (ships unassembled): Chrome guard rail helps reduce spills and neaten service

• Stainless steel drip tray: Removable two-piece drip tray catches spills

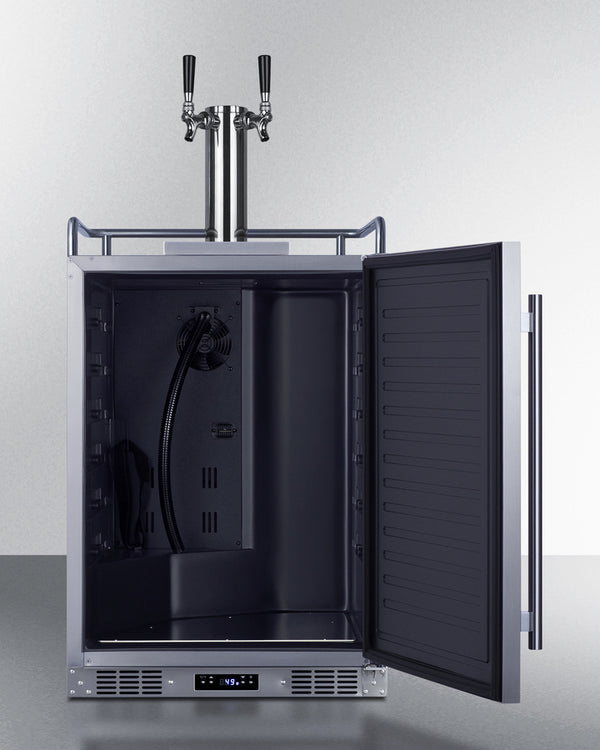

• Adjustable shelves: 2 chrome shelves with six placement options allow unit to also function as a beverage refrigerator

• Memory IC function: Recovers the unit's last settings after a power outage

• Reversible door: User-reversible door swing for added flexibility

• Casters included (ship unassembled): Four casters (two locking) for easy portability

• Pro style handle: Stainless steel handle adds style to any setting

• Fully finished stainless steel cabinet: Allows the dispenser to be used freestanding

• Sealed back: Space-saving design with easier cleanability

• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals

• CARB Compliant: Uses eco-friendly hydrocarbon-based refrigerant for a greener footprint

• Capacity: 5.6 cu.ft. (159 L)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 305.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 120.0 lbs. (54 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101083933
• Door Swing: Right Hand Door (RHD)
• Reversible: Yes
• Tap Kit: Yes
• Height with Tap: 51 1/2" (131 cm)
• Number of Taps: 2
• Adjustable Shelves: Yes
• Shelf Type: Chrome
• Shelf Quantity: 2
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant: R600a
• Refrigerant Amount: 1.06 oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Interior Height: 26 3/4" (68 cm)
• Interior Width: 20.0" (51 cm)
• Interior Depth: 19.0" (48 cm)
• Leveling Legs Quantity: 4
• Wheel Quantity: 4
• Temperature Range: 34°F to 68°F (1°C to 20°C)
• Sound Level: 34.0 dB

• Nominal Height: 34 Inches
• Height of Cabinet: 33 5/8 Inches
• Nominal Width: 24 Inches
• Width: 23 3/4 Inches
• Nominal Depth: 24 Inches
• Depth: 24 Inches
• Depth with Handle: 26 1/24 Inches
• Depth with Door at 90°: 46 3/4 Inches
