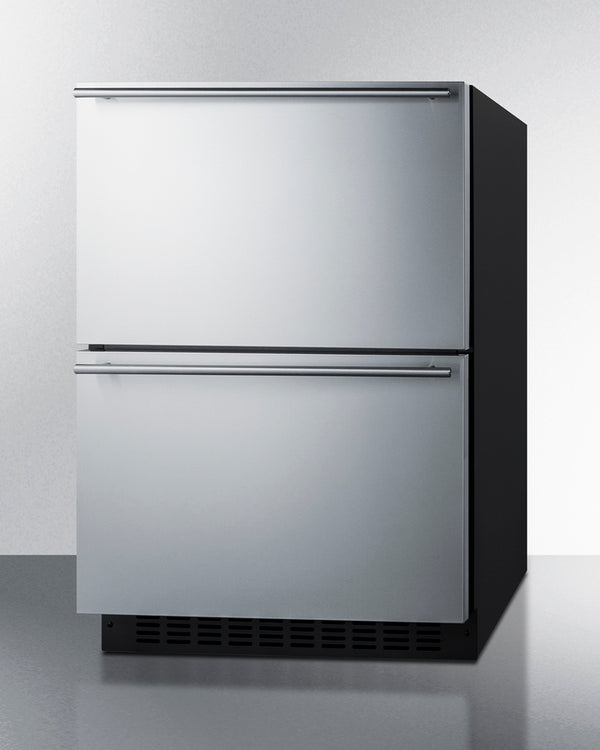

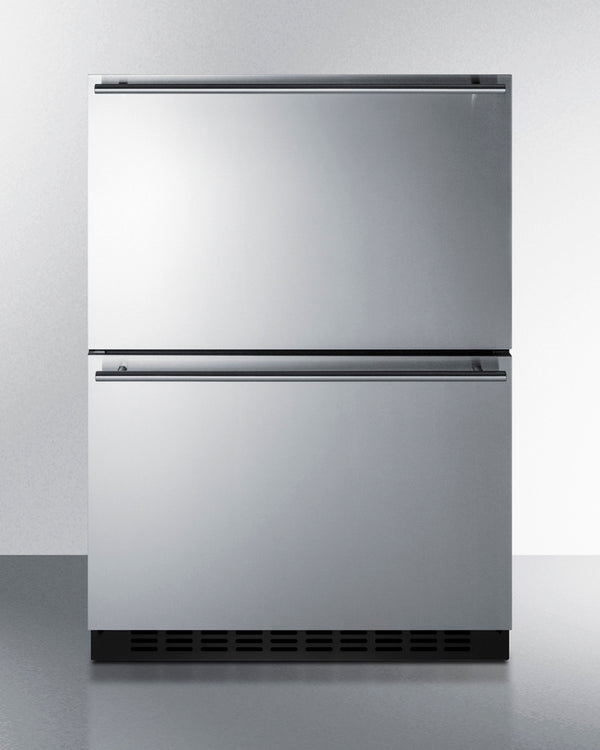

Summit 24 Inch Outdoor Freezer with Drawers

• 2-Drawer All-Freezer

  • 24" wide 3.7 cu.ft. freezer with two gliding drawers

• Weatherproof design for outdoor use

  • Durable construction allows safe installation in outdoor kitchens

• ADA compliant design

  • Sized just under 32" high for installation under lower ADA compliant counters

• Built-in capable

  • Front-breathing design allows installation under counters, flush with other cabinets in 24" wide openings

• Stainless steel drawers

  • Drawer interiors and exteriors fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

• Panel-ready drawer fronts

  • Accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) for seamless integration into cabinetry design

• Professional handles

  • Sleek stainless steel handles add an elegant touch

• Frost-free operation

  • No-frost system minimizes user maintenance

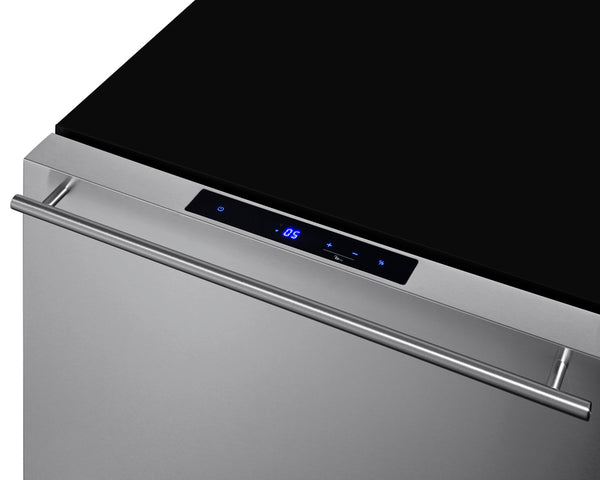

• Digital thermostat

  • Electronic controls on the top drawer with external readout, switchable between Celsius and Fahrenheit

• LED lighting

  • Gentle white LED illuminates the top drawer interior

• Internal fan

  • Fan-forced cooling ensures even temperature distribution

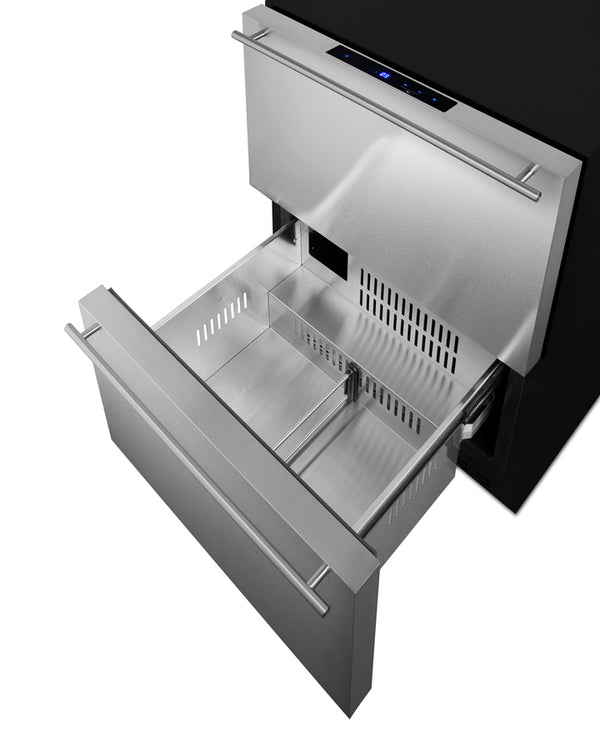

• Drawer dividers

  • Two adjustable dividers included for better organization

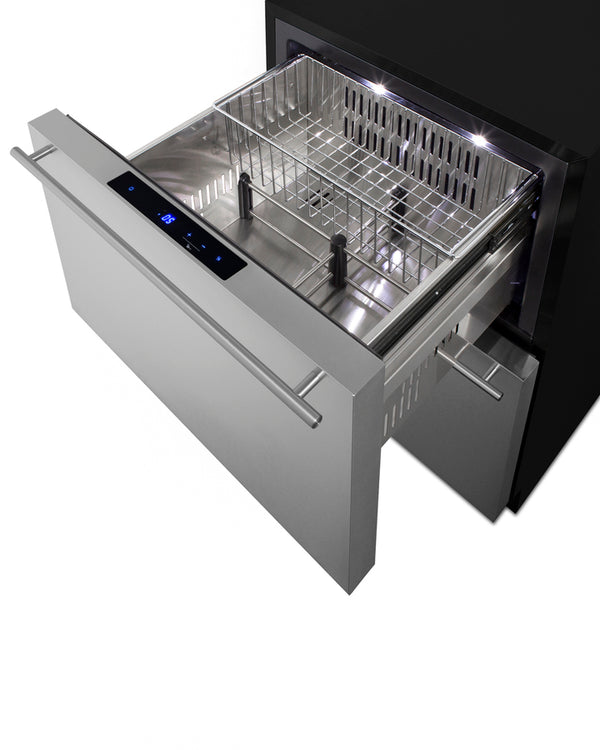

• Sliding basket

  • Removable chrome basket for added storage convenience

• Temperature alarm

  • High-temperature alarm alerts if internal temperature goes out of range

• Open drawer alarm

  • Audible alarm sounds if either drawer is left open longer than one minute

• Sabbath Mode

  • Optional setting disables lighting and alarms for up to 48 hours

• SuperFreezer function

  • Lowers temperature and runs compressor continuously for rapid cooling, ideal for newly loaded groceries

• Child lock

  • Disables digital controls after two minutes of inactivity for safety

• Temperature Memory Function

  • Automatically restores the last temperature setting after power loss

• Right angle plug

  • Allows flush installation against the wall socket without adding depth

• Sealed back

  • Space-saving design with no exposed coils for easier cleaning and added protection

• Fully finished black exterior cabinet

  • Allows use as a freestanding model

• Anti-tip bracket

  • Included for user-installation to reduce risk of tipping

• Commercially approved

  • ETL-S listed to NSF-7 standards for use in commercial settings

• Matching refrigerator available

  • Pairs with the ADRD241 refrigerator to create a complete 2-drawer undercounter set

• 100% CFC free

  • Environmentally friendly design with no ozone-damaging chemicals

• CARB Compliant

  • Uses eco-friendly hydrocarbon refrigerant meeting CARB regulations

• Nominal Height: 32.0" (81 cm)

• Height of Cabinet: 31.88" (81 cm)

• Nominal Width: 24.0" (61 cm)

• Width: 23.38" (59 cm)

• Nominal Depth: 23.0" (58 cm)

• Depth: 22.5" (57 cm)

• Depth with Handle: 23.88" (61 cm)

• Depth with Door at 90°: 34.25" (87 cm)

• Capacity: 3.7 cu.ft. (105 L)

• Defrost Type: Frost-Free

• Door: Stainless Steel / Panel-Ready

• Cabinet: Black

• US Electrical Safety: ETL

• Canadian Electrical Safety: ETL-C

• Sanitation: ETL-S

• Energy Usage/Year: 395.0 kWh/year

• Amps: 1.5

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 106.0 lbs. (48 kg)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101088174

• Thermostat Type: Digital

• Interior Light: Yes

• Fan Type: Interior and Exterior

• Refrigerant Type: R600a

• Refrigerant Amount: 1.31 oz.

• High Side PSI: 270.0

• Low Side PSI: 105.0

• Level Legs: 4

• Interior Drawers: Yes

• Drawers Quantity: 2

• Temperature Range: -11°F to 11°F

• Sabbath Mode: Yes

• Sound Level: 33.8 dB

• Interior Height: 8 Inches

• Interior Width: 17 Inches

• Interior Depth: 14 1/2 Inches

• Interior Height: 8 Inches

• Interior Width: 17 Inches

• Interior Depth: 14 1/2 Inches

• Compressor Step Height: 4 Inches

• Compressor Step Width: 17 Inches

• Compressor Step Depth: 3 1/2 Inches
