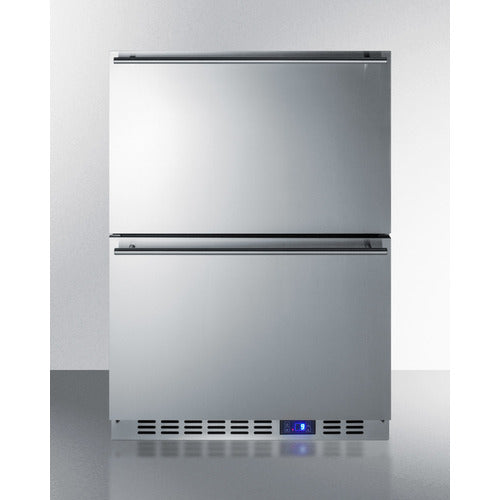

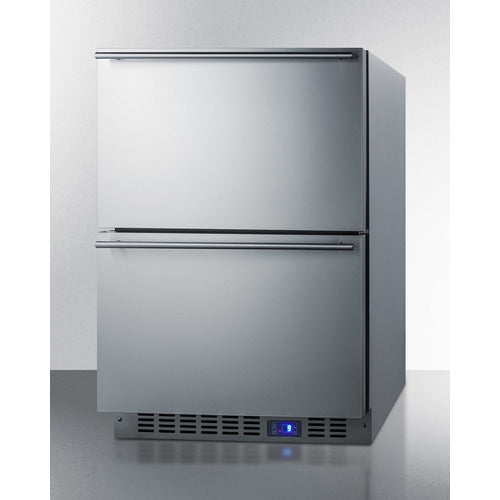

Summit 24 Inch Outdoor Freezer with Drawers

• 2-Drawer Outdoor All-Freezer
  24" wide all-freezer with two slide-out drawers for built-in or freestanding use in outdoor kitchens
• Two sliding drawers
  Slide-out drawers for full freezer storage
• Weatherproof design
  Designed and constructed for durable use in the outdoors
• Sabbath Mode
  Optional setting lets you disable the lighting and alarm for up to 48 hours
• Temperature Memory Function
  Unit will retain its last settings when power is restored in the event of power loss
• Temperature alarm
  High temperature alarm sounds if the unit's interior goes out of the recommended range
• Professional handles
  Sleek stainless steel handles add an elegant touch to any setting
• LED lighting
  Elegant and efficient lighting offers a gentle illumination for the drawer interiors
• Digital thermostat
  Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
• Anti-tip bracket
  Included and recommended for user-installation to reduce the risk of tipping

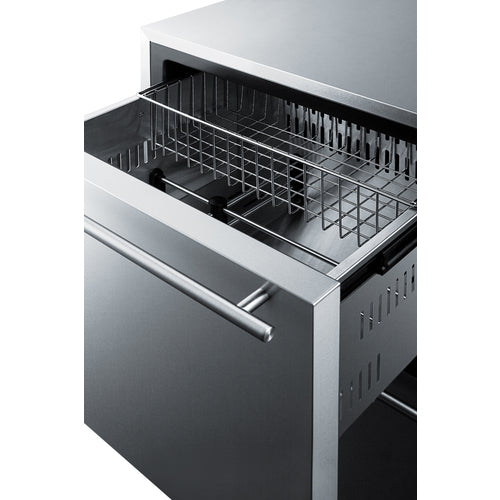

• Sliding basket
  Removable chrome basket included for easier storage convenience
• Drawer dividers
  Two adjustable dividers make it easier to organize the drawer interiors
• Sealed back
  No exposed electrical components allow safe use in the outdoors and easier cleanup
• Fully finished cabinet
  Allows the unit to be used freestanding
• Ground Fault Circuit Interrupter
  Integrated GFCI exceeds U.L. requirements for safety by protecting your unit from shocks and circuit breaks
• Stainless steel kickplate
  Completes the professional look down to the toe kick
• Internal fan
  Fan-forced cooling ensures even temperature distribution from top to bottom
• Open drawer alarm
  Audible alarm will sound if either drawer is left open longer than one minute
• Frost-free operation
  No-frost operation for minimum user maintenance
• Stainless steel exterior
  Cabinet and drawers are fully constructed from weatherproof stainless steel
• Built-in capable
  Make the best use of space by installing your appliance under the counter and flush with other cabinets
• Commercially approved
  ETL-S listed to NSF-7 Standards for use in commercial establishments
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant
  Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

• Capacity: 4.26 cu.ft. (121 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 380.0 kWh/year
• Amps: 0.8
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 106.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Door Swing: Drawer
• Thermostat Type: Digital
• Interior Light: Yes
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.24 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Interior Drawers: Yes
• Drawers Quantity: 2
• Temperature Range: -11 to 11ºF
• Sabbath Mode: Yes
• Sound Level: 34.4 dB

Drawer 1 (Top)

• Interior Height: 9 ¼ Inches
• Interior Width: 17 ¼ Inches
• Interior Depth: 15 ½ Inches

Drawer 2 (Bottom)

• Interior Height: 10 Inches
• Interior Width: 17 ¼ Inches
• Interior Depth: 15 Inches

Compressor Step

• Height: 3 ½ Inches
• Width: 17 ¼ Inches
• Depth: 4 Inches
