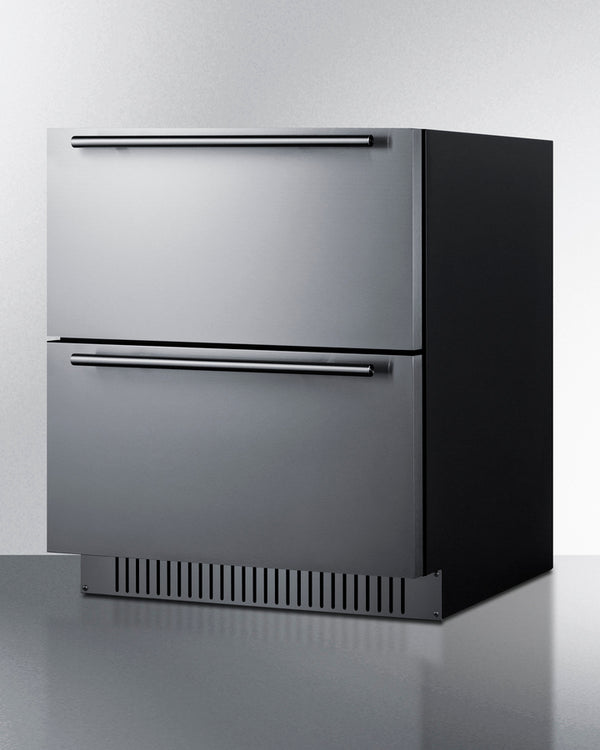

Summit 27 Inch Outdoor Refrigerator with Drawers

• 27" wide 2-drawer all-refrigerator

  • Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

• ADA compliant design

  • 32" height allows easy installation under lower ADA compliant counters

• Less than 24" deep

  • Shallower depth than many similar units in this size class, allowing an easier fit in tight commercial or residential kitchen spaces

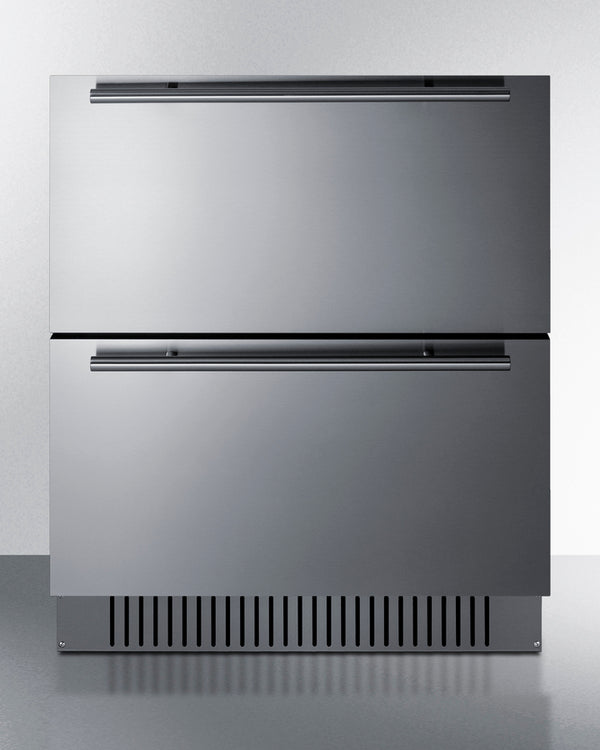

• Stainless steel drawers

  • Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain for long-lasting luxury under the counter

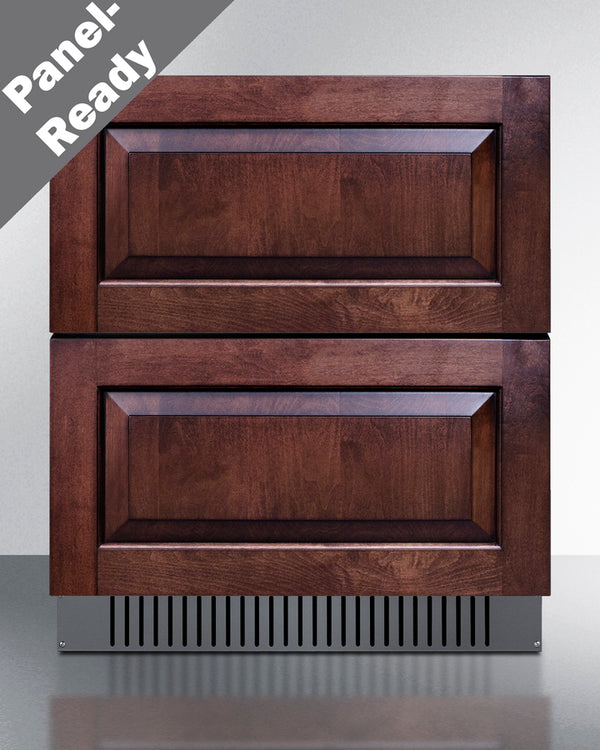

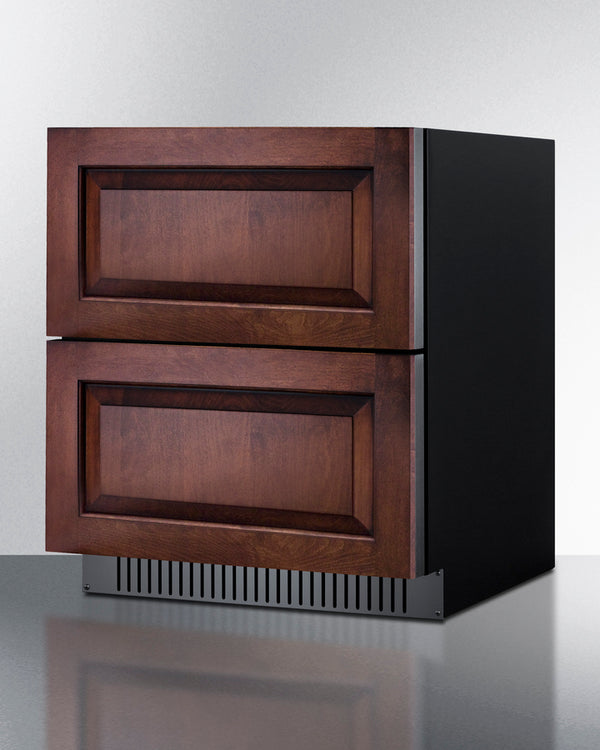

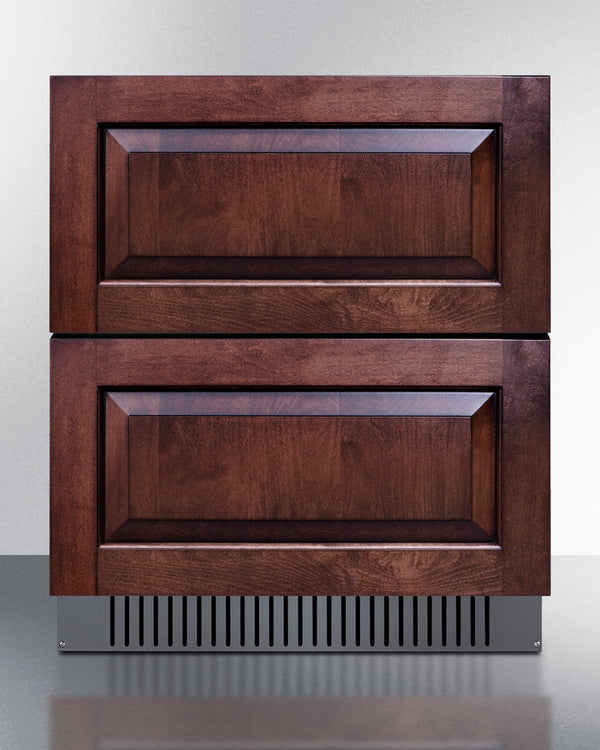

• Panel-ready drawer fronts

  • Drawers can be customized with overlay panels (sized at 26.77" x 13.78" at 3/4" thick) to match or accent existing cabinetry

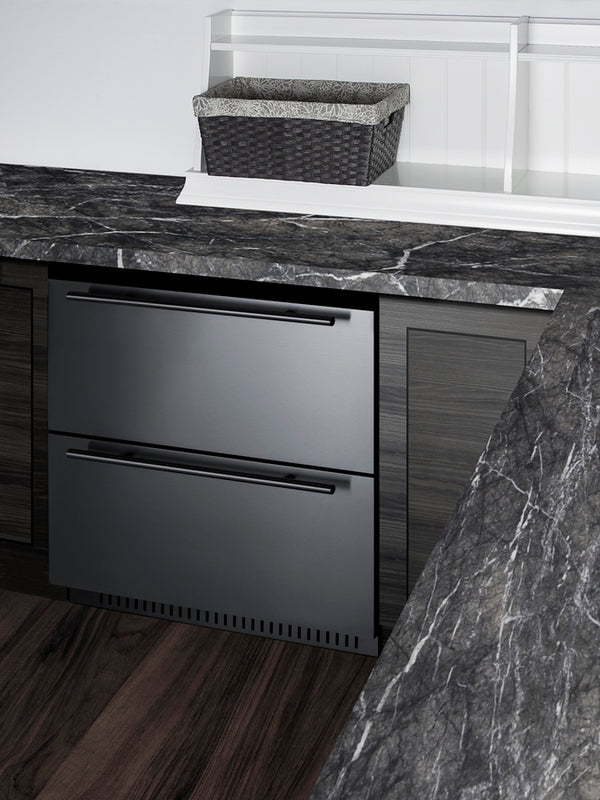

• Built-in capable

  • Front-breathing design allows the unit to be built-in under counters

• Indoor/Outdoor compatible

  • Durable, weatherproof construction designed to hold up to the elements

• Commercially approved

  • ETL-S listed to NSF-7 standards allows use in commercial kitchens

• Wide temperature range

  • Temperature can be set between 34 and 65ºF for versatile storage of food, beverages, wine, and other items

• Professional handles

  • Stainless steel handles add style to any setting

• Frost-free

  • No-frost operation for minimal user maintenance

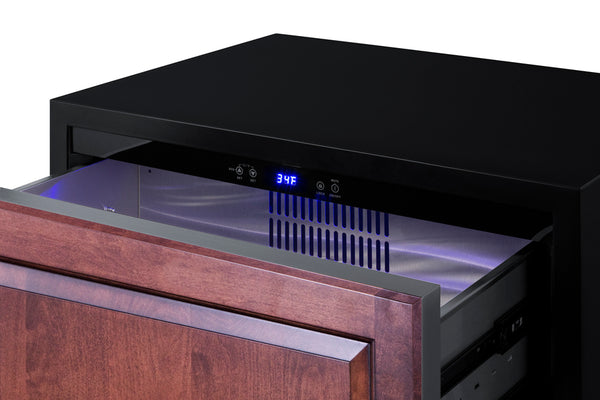

• LED lighting

  • Both drawers feature an LED strip that provides a stunning blue illumination over the interiors

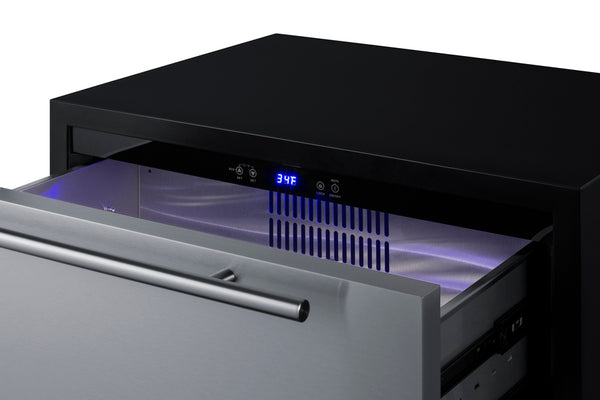

• Digital thermostat

  • Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit

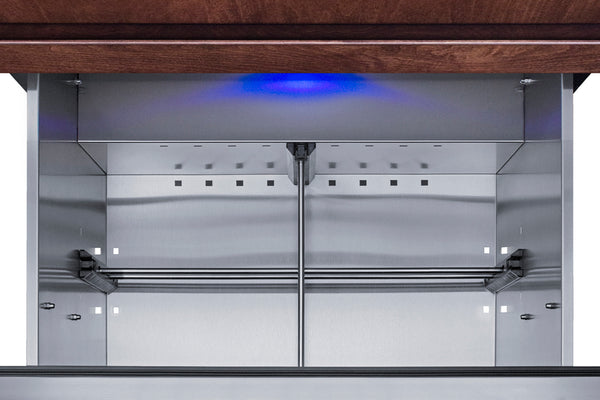

• Drawer dividers

  • Each drawer includes a removable accessory that lets you divide your storage into four sections

• Open drawer alarm

  • Audible alarm sounds if the drawers are left open for more than five minutes

• Sabbath mode

  • Optional feature disables alarms, interior light, and displays for up to 96 hours

• Right-angle plug

  • Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

• Sealed back

  • Space-saving design with no exposed coils for easier cleanability

• Fan-forced cooling

  • Provides for efficient, even cooling of the entire unit

• Anti-slam drawers

  • Soft-close glides prevent drawers from slamming shut for additional durability and safety

• Anti-tip bracket

  • Bracket (included) helps prevent tipping for added safety

• Fully finished cabinet

  • Allows the unit to be used freestanding

• 100% CFC free

  • Environmentally friendly design with no ozone-damaging chemicals

• CARB Compliant

  • Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current California standards

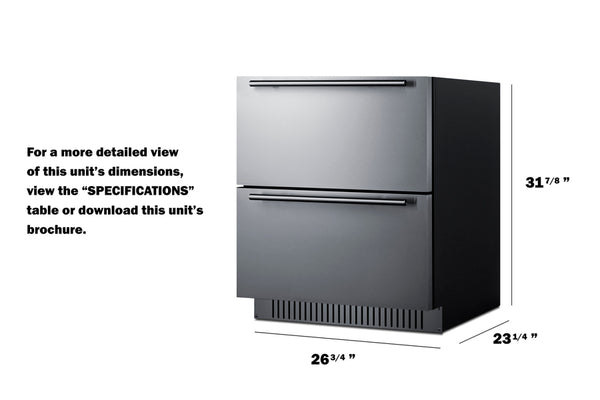

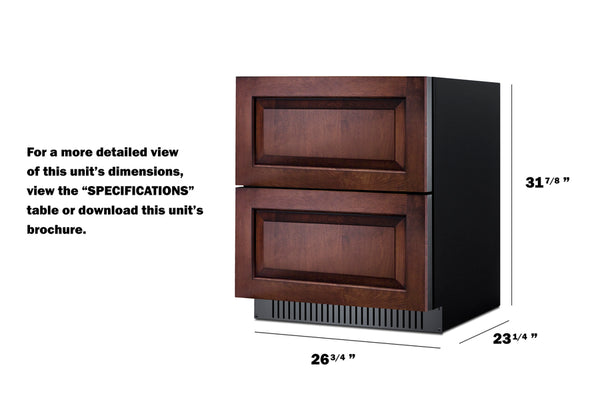

• Nominal Height: 32.0" (81 cm)

• Height of Cabinet: 31.88" (81 cm)

• Nominal Width: 27.0" (69 cm)

• Width: 26.75" (68 cm)

• Nominal Depth: 24.0" (61 cm)

• Depth: 23.25" (59 cm)

• Depth with Handle: 25.25" (64 cm)

• Depth with Door at 90°: 37.75" (96 cm)

• Capacity: 4.83 cu.ft. (137 L)

• Defrost Type: Frost-Free

• Door Finish: Stainless Steel/Panel-Ready

• Cabinet Color: Black

• US Electrical Safety Certification: ETL

• Canadian Electrical Safety Certification: ETL-C

• Sanitation Certification: ETL-S

• Energy Usage/Year: 303.0 kWh/year

• Amps: 1.25

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 121.0 lbs. (55 kg)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101090139

• Sabbath Mode: Yes

• Door Swing: Drawer

• Height Adjustable: Yes

• Thermostat Type: Digital

• Fan Type: Interior and Exterior

• Refrigerant Type: R600a

• Refrigerant Amount: 1.23 oz.

• High Side PSI: 150.0

• Low Side PSI: 50.0

• Level Legs Quantity: 4

• Interior Light: Yes

• Interior Drawers: Yes

• Interior Drawers Quantity: 2

• Temperature Range: 34 to 65ºF

• Sound Level: 35.2 dB

• Interior Height 1: 9.88" (25 cm)

• Interior Width 1: 21.0" (53 cm)

• Interior Depth 1: 16.5" (42 cm)

• Interior Height 2: 8.75" (22 cm)

• Interior Width 2: 21.0" (53 cm)

• Interior Depth 2: 16.5" (42 cm)

• Compressor Step Height: 5.0" (13 cm)

• Compressor Step Width: 21.0" (53 cm)

• Compressor Step Depth: 5.0" (13 cm)
