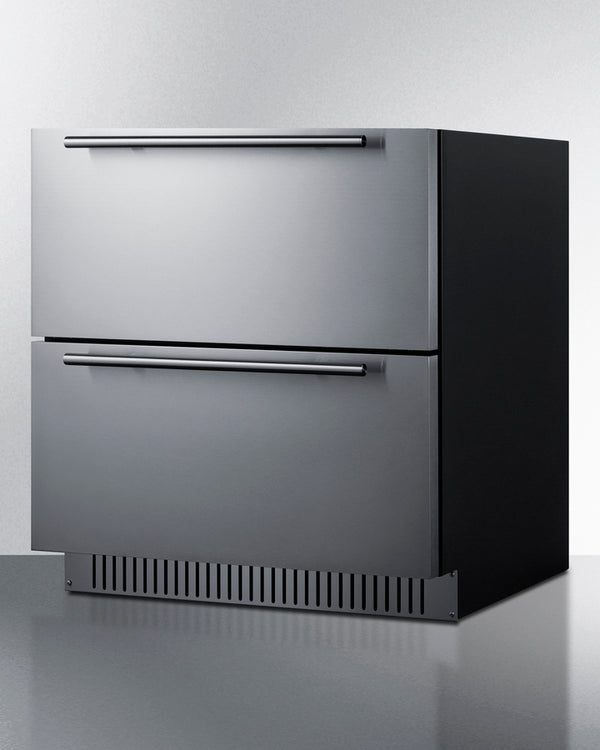

Summit 30 Inch Outdoor Refrigerator with Drawers

• 30" wide 2-drawer all-refrigerator

  • Uniquely sized for built-in installation under counters in residential or commercial kitchen settings

• ADA Compliant height

  • 32" height allows easy installation under lower ADA compliant counters

• Less than 24" deep

  • Shallower depth than many similar units in this size class, allowing an easier fit in tight spaces

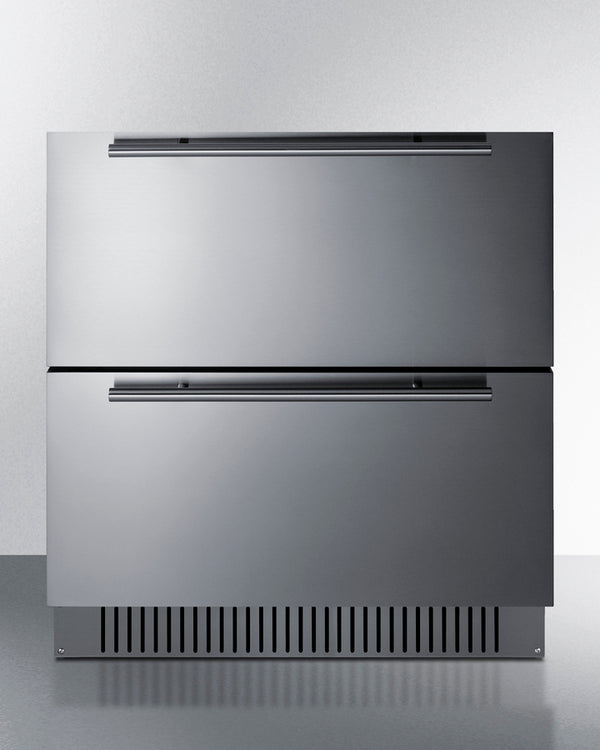

• Stainless steel drawers

  • Interior and exterior drawer fronts feature weatherproof stainless steel construction in a horizontal grain

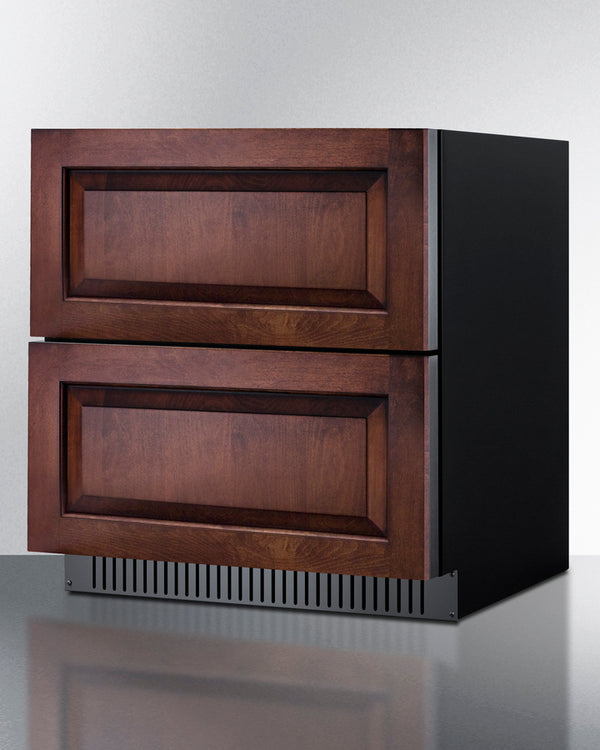

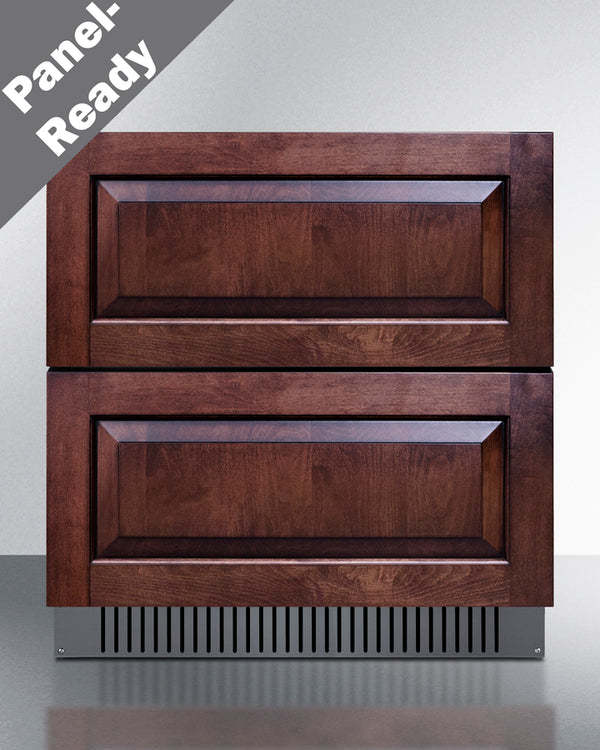

• Panel-ready drawer fronts

  • Customizable with overlay panels (29.5" x 13.78" at 3/4" thick) to match or accent existing cabinetry

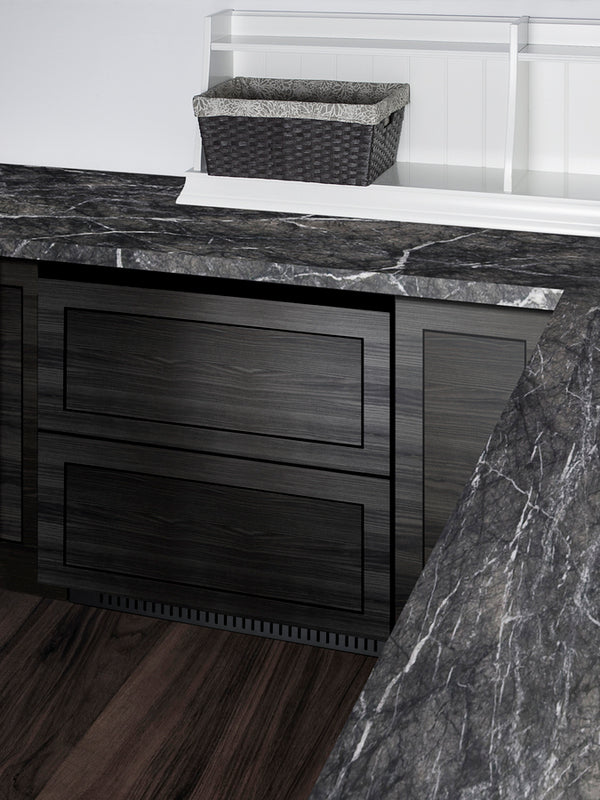

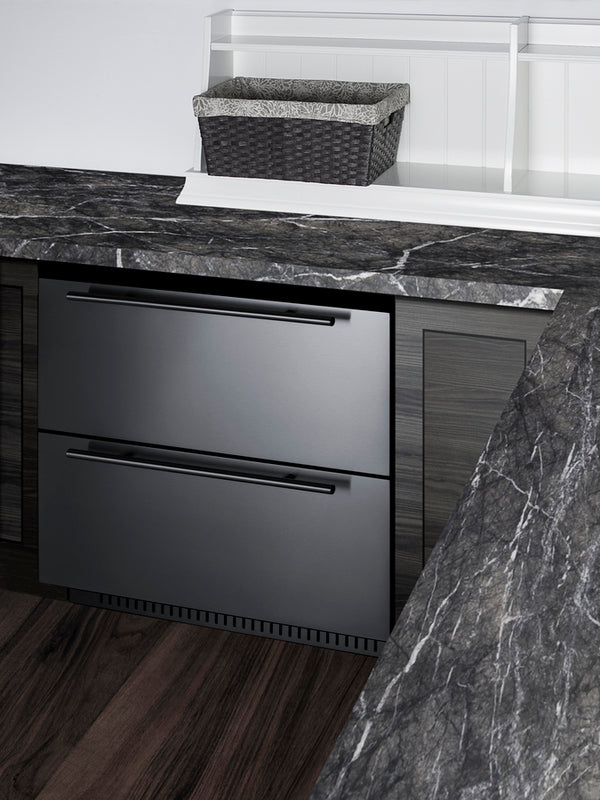

• Built-in capable

  • Front-breathing design allows the unit to be built-in under counters

• Indoor/Outdoor compatible

  • Durable, weatherproof construction designed to withstand the elements

• Commercially approved

  • ETL-S listed to NSF-7 standards for use in commercial kitchens

• Professional handles

  • Stainless steel handles add style to any setting

• Frost-free

  • No-frost operation for minimal user maintenance

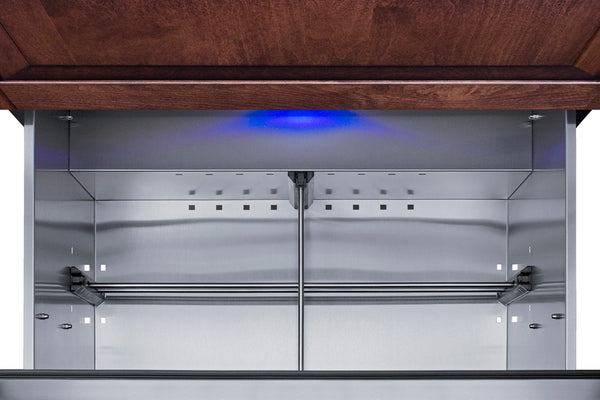

• LED lighting

  • LED strip in each drawer provides stunning blue interior illumination

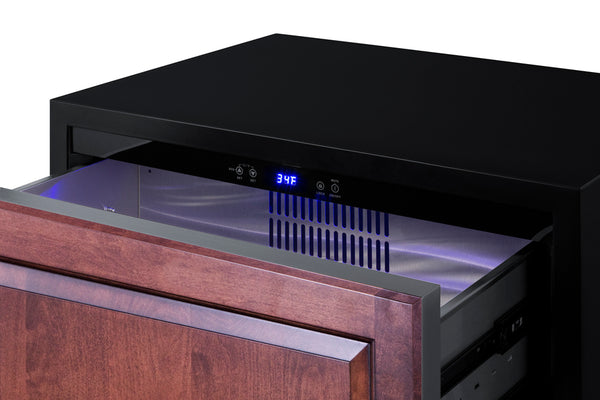

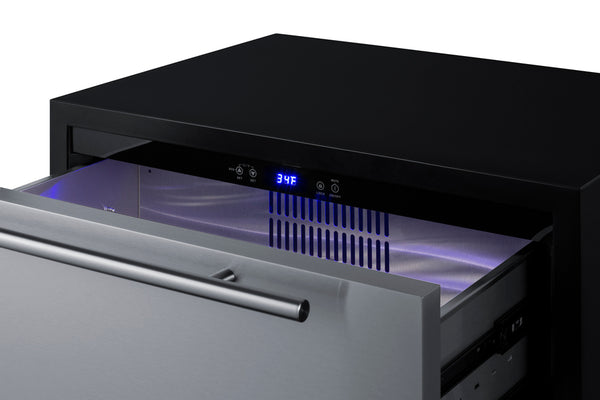

• Digital thermostat

  • Electronic controls for seamless temperature management; readout in Celsius or Fahrenheit

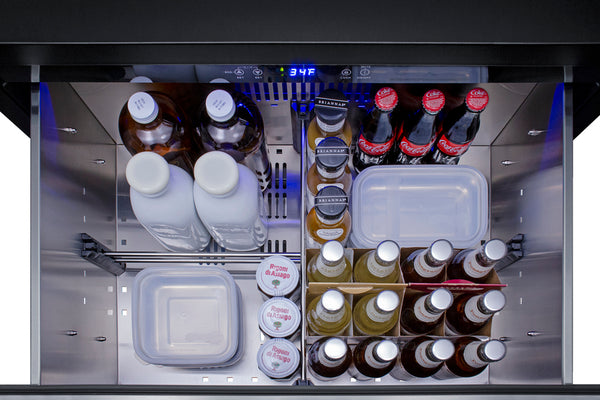

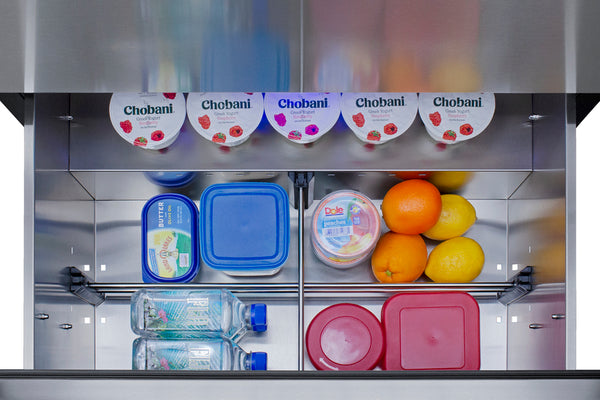

• Drawer dividers

  • Removable accessories divide storage into four sections

• Open drawer alarm

  • Audible alarm sounds if drawers are left open for more than five minutes

• Sabbath mode

  • Disables alarms, interior light, and displays for up to 96 hours

• Right-angle plug

  • Allows the unit to plug flush against the wall socket without adding extra depth

• Sealed back

  • Space-saving design with no exposed coils for easier cleaning

• Fan-forced cooling

  • Provides efficient, even cooling throughout the unit

• Anti-slam drawers

  • Soft-close glides prevent drawers from slamming shut

• Anti-tip bracket

  • Included bracket helps prevent tipping for added safety

• Fully finished cabinet

  • Allows the unit to be used freestanding

• 100% CFC free

  • Environmentally friendly design with no ozone-damaging chemicals

• CARB Compliant

  • Uses eco-friendly, hydrocarbon-based refrigerant meeting current CARB regulations

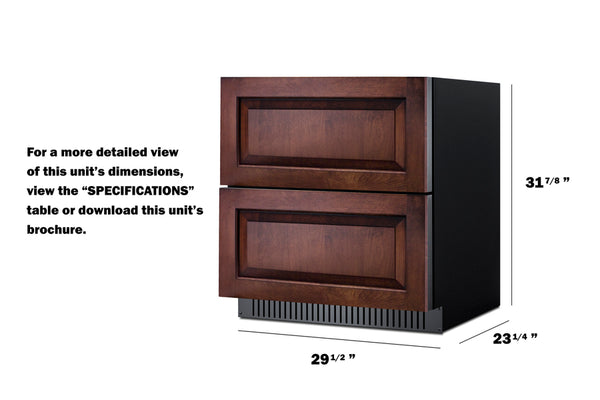

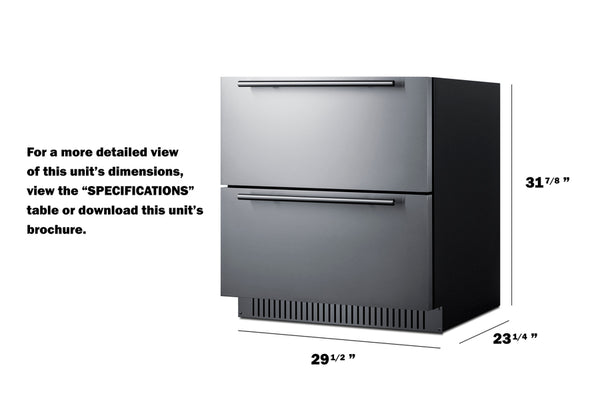

• Nominal Height: 32.0" (81 cm)

• Height of Cabinet: 31.88" (81 cm)

• Nominal Width: 30.0" (76 cm)

• Width: 29.5" (75 cm)

• Nominal Depth: 24.0" (61 cm)

• Depth: 23.25" (59 cm)

• Depth with Handle: 25.25" (64 cm)

• Depth with Door at 90°: 37.75" (96 cm)

• Capacity: 5.42 cu.ft. (153 L)

• Defrost Type: Frost-Free

• Door: Stainless Steel/Panel-Ready

• Cabinet: Stainless Steel

• US Electrical Safety: ETL

• Canadian Electrical Safety: ETL-C

• Sanitation: ETL-S

• Energy Usage/Year: 305.0 kWh/year

• Amps: 1.25

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 126.0 lbs. (57 kg)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101090146

• Sabbath Mode: Yes

• Door Swing: Drawer

• Height Adjustable: Yes

• Thermostat Type: Digital

• Fan Type: Interior and Exterior

• Refrigerant Type: R600a

• Refrigerant Amount: 1.23 oz.

• High Side PSI: 150.0

• Low Side PSI: 50.0

• Level Legs Quantity: 4

• Interior Light: Yes

• Interior Drawers: Yes

• Interior Drawers Quantity: 2

• Temperature Range: 34 to 65ºF

• Sound Level: 35.6 dB

• Interior Height 1: 9 7/8 Inches

• Interior Width 1: 23 3/4 Inches

• Interior Depth 1: 16 1/2 Inches

• Interior Height 2: 8 3/4 Inches

• Interior Width 2: 23 3/4 Inches

• Interior Depth 2: 16 1/2 Inches

• Compressor Step Height: 5 Inches

• Compressor Step Width: 23 3/4 Inches

• Compressor Step Depth: 5 Inches

• 31.88 Inches H x 29.5 Inches W x 23.25 Inches D
