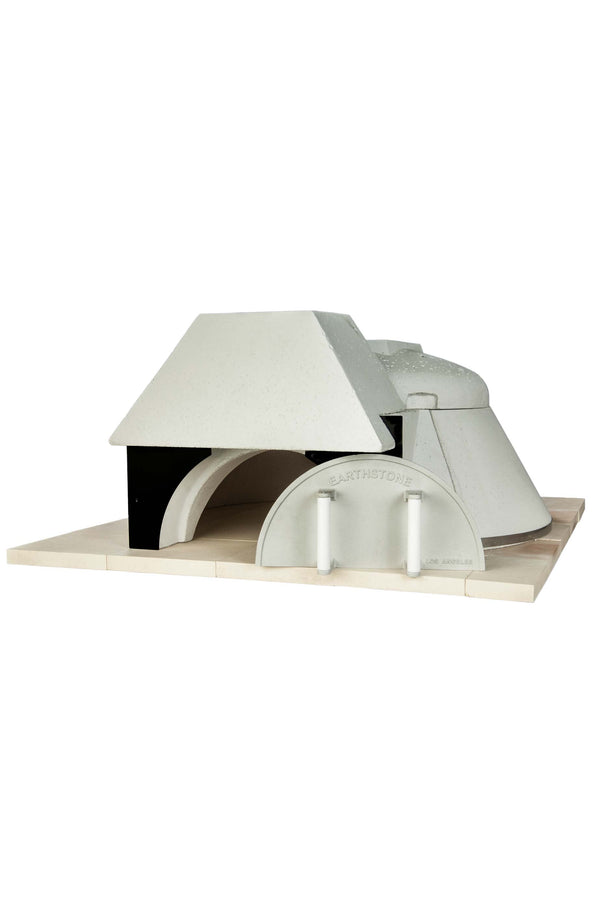

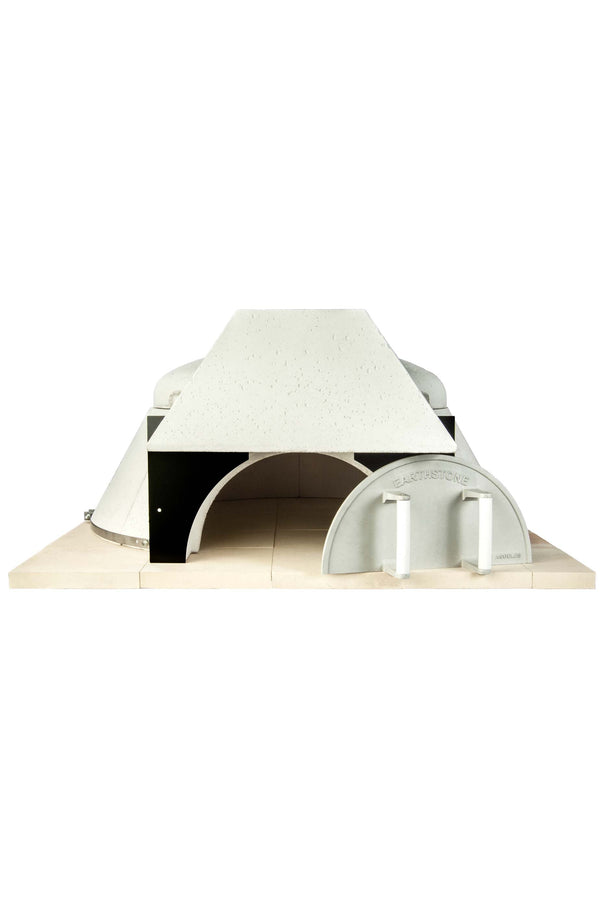

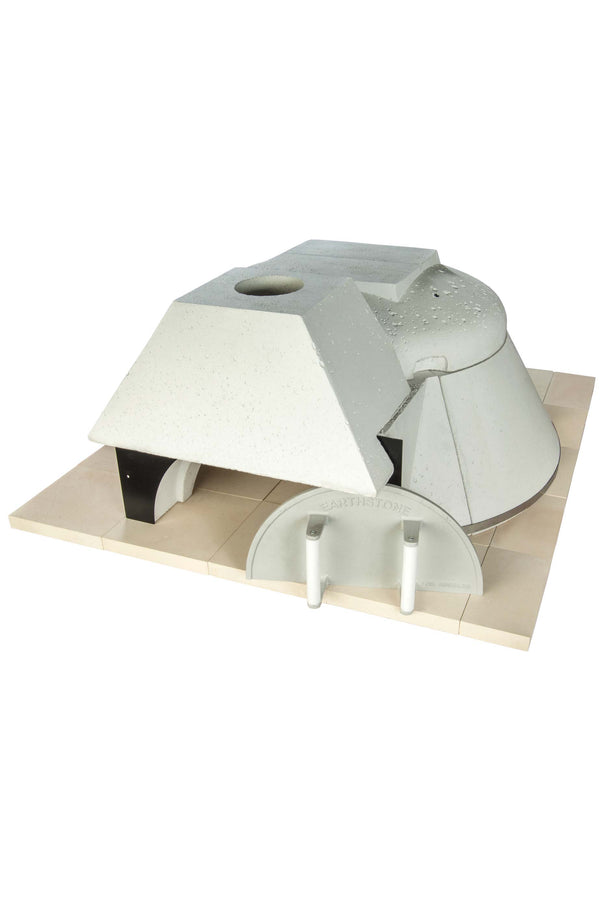

Earthstone Model 110 Modular Wood Fired Oven Kit

• Floor Tiles (25) – 5 – 12″ X 6″, 20 – 12″ X 12
• Oven Pieces: Primary Hood, Dome Pieces (2), Side Wall Pieces (4), Front Entrance Piece
• Steel Entrance Plate (black)
• Thick Cast Aluminum Door With Teflon Handles
• Dial Temperature Gauge (Range 0-1000F)
• Refractory Cement (22 lb / 10 kg Bag)
• Galvanized Metal Flashing
• High Heat Silicone Tube
• Plywood Spacers
• Refractory Cement (container)
• Package of Fire Starters
• Stainless Steel Pizza Peel
• 4″ x 16″ Screened Vent
• Installation Instructions and Video/DVD

Ovens come standard with:

• 4-inch thick advanced refractory elements with superior mass for high thermal resistance.
• 12″X12″ industrial bakers hearth tiles, “Pierre de Boulanger”.
• Includes: Mechanical temperature gauge, Cast aluminum door, Metal entrance plate.
• Oven heats up quickly for low fuel consumption.
• Easy to install — Comes with complete installation video and booklet, operation and maintenance instructions.
• Hood designed to remove smoke & odors efficiently.
• Five year limited warranty.

Pizza Capacities:

• 8″ Pizzas: 6-7
• 12″ Pizzas: 3-4
• 16″ Pizzas: 2

Steak Capacities (17″ x 20″ grilling rack):

• Medium Sized: 8
• Large Sized: 6

• Concrete Block Assembly:
• 64″ x 60″ x 80″ (10,000 lbs.) | View Diagram
• Steel Frame Assembly:
• 56″ x 56″ x 80″ (3,750 lbs.) | View Diagram
• Shipping Weight: 1,700 lbs.
• Interior Cooking Area: 43″ in diameter
